Description of MG Tile Adhesive dry mix plant:
Dry mix mortar plant is generally used to produce various ordinary and specific mortars, which includes plastering mortar, masonry mortar, waterproof mortar, tile adhesive mortar, wear-resisting floor mortar, thermal insulation mortars and etc.
Dry mortar mix plant basically consists of wet sand feeding system, drying system, hoist lifting system, raw material storage system, weighting system, mixing system, finished product storage bin, packing system, dust collector and control system.
Dry mortar plant has broad application in chemical, pharmaceutical, food, compound fertilizer, rubber, building materials, refractory materials and other industries.
The advantages of MG Tile Adhesive dry mix plant:
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The ingredients are accurate, can automatically calculate the error and automatically correct.
3, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
| Model | Capacity | Equipment height | Total power | Worker required | Workshop required |
| 2000L Mixer | 10-12T/H | 8-10m | 80-90KW | 2-3 Person | 500-600m2 |
| 3000L Mixer | 15-20T/H | 10-14m | 90-100KW | 3-4 Person | 600-800m2 |
| 4000L Mixer | 20-30T/H | 10-14m | 100-120KW | 3-4 Person | 600-800m2 |
| 6000L Mixer | 30-50T/H | 15-20m | 100-120KW | 3-4 Person | 800-1000m2 |
| 10000L Mixer | 50-80T/H | 20-25m | 120-150KW | 3-4 Person | 1000-1200m2 |
Application of MG Tile Adhesive dry mix plant.
Applications of dry mortar production line The simple dry construction mixture mixing plant can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.
Configuration of MG Tile Adhesive dry mix plant:

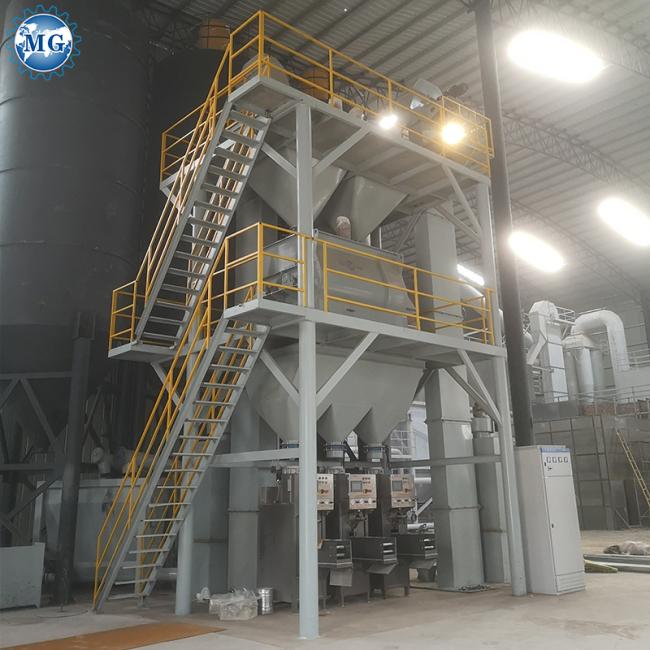

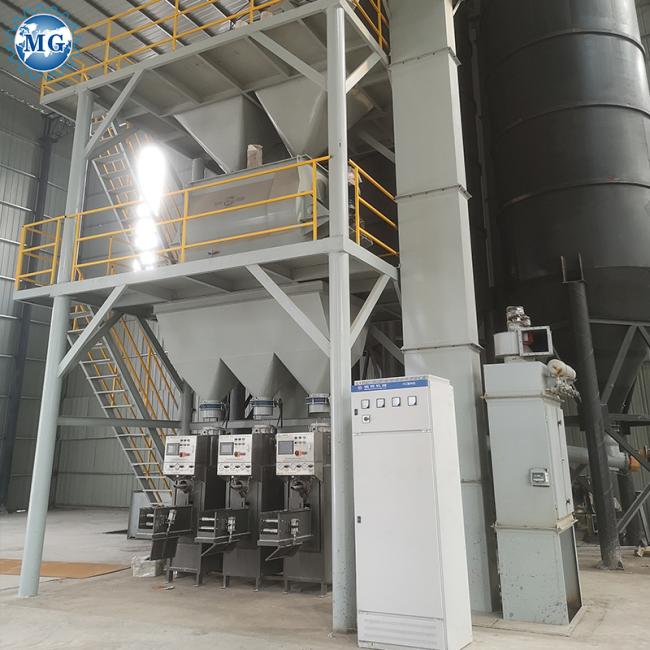

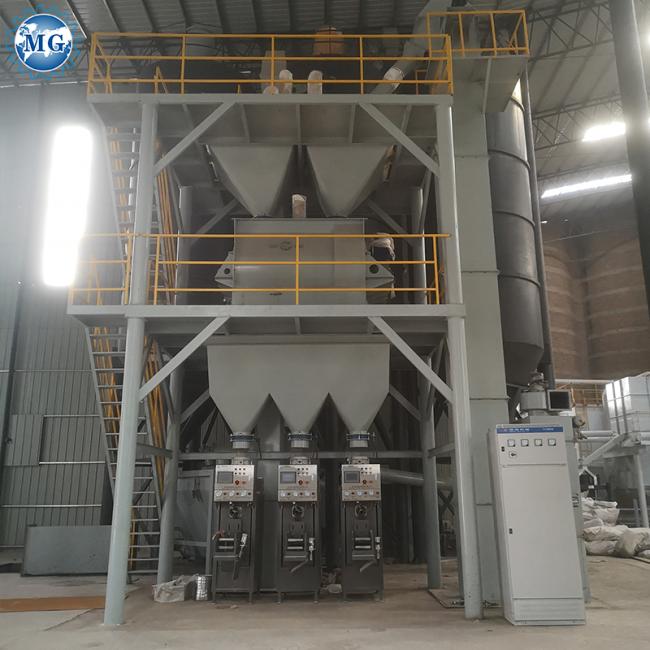

Working site of MG Tile Adhesive dry mix plant:
