Sand Cement Mortar Dry Mix Plant 4 - 5T/H Improved Simple 6000*3000*3200mm
4-5T/H Improved Simple Sand Cement Mortar Dry Mix Plant
1. Description of MG 4-5T/H Improved Simple Sand Cement Mortar Dry Mix Plant
MG dry mortar plant tile adhesive making machine is based on the simple dry mortar plant. It change the Ribbon mixer to be double shaft paddle mixer. The double shaft paddle mixer is high efficiency and it can mix one batch material within 3-5 mintes, The mixer also equip special fiber dispersing system. It can realize manual feeding and automatic packaging of different kinds of dry mortars.
2. Advantages of MG 4-5T/H Improved Simple Sand Cement Mortar Dry Mix Plant
This improve dry mortar mixing plant only occupies area: <20 m2,height:<3.5 m,workers required:2-3 persons,capacity:4-5 t/h,size:6000*3000*3200 mm,power:35.5 kw,it's simple but efficient and practical dry mortar plant,and it's easy operation and maintenance,you can devote low investment,and produce all kinds of dry mortar with this improve production line,it's the best choice for those starter with limited investment budget and better quality product.
3. Working Principle of MG 4-5T/H Improved Simple Sand Cement Mortar Dry Mix Plant

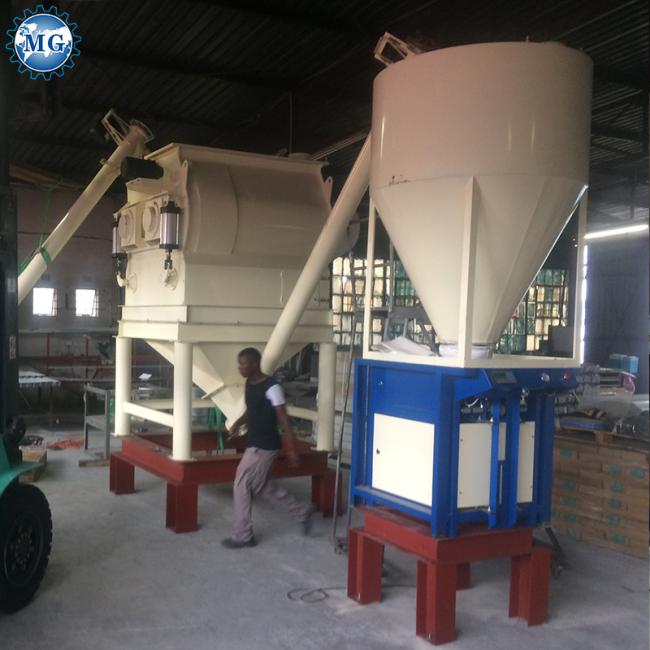

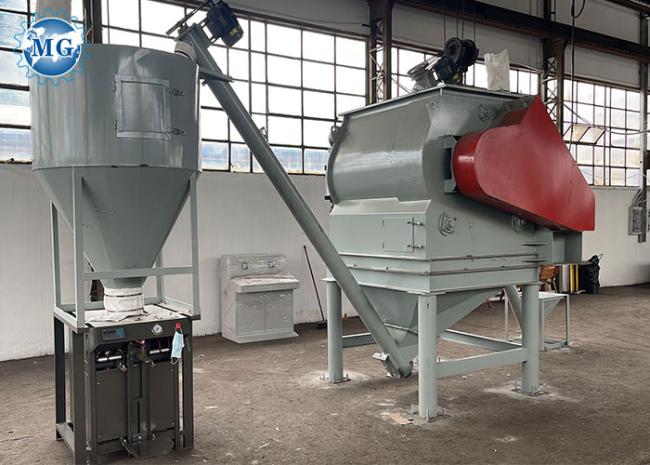

Firstly, the raw material is put into the feeding pot of screw conveyor,then transported into the mixer by screw conveyor,secondly,several kinds of raw material will be mixed by the twin shaft paddle mixer,thirdly,the mixed material will be transported into the end product silo by second screw conveyor,fourthly,the finished product will be packed into bags by packing machine.
| Model | Capacity | Occupied area | Equipment height | Manpower | Batching and packaging |
|
Simple dry mortar plant |
1-4 T/H |
20㎡ |
3-4m |
2-3 Person |
Manual batching |
| Improved dry mortar plant | 4-5 T/H | 20㎡ | 3-4m | 2-3 Person | Manual batching Automatic packaging |
| Semi automatic dry mortar plant | 6-8t/h | 50-60㎡ | 6-8m | 3-4 Person | Manual batching Automatic packaging |
| Automatic dry mortar plant | 8-30t/h | 60-100㎡ | 8-13m | 3-4 Person | Automatic batching Automatic packaging |
4. Raw Materials of MG 4-5T/H Improved Simple Sand Cement Mortar Dry Mix Plant
Dry mix mortars are used in many different applications in the construction of a building. Some of these applications are universal and some others are specific to certain regions or countries.
Raw material can be cement, lime, gypsum, plaster, fly ash, river sand, quartz sand, additives such as HPMC, emulsion powder, etc.
End product can be following dry mortars:
|
Bonding mortar |
Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc |
| Decoration mortar | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc |
| Protection mortar | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew proof mortar, shielding mortar etc. |
We are professional manufacturer of dry mortar equipment over 20 years, we always provide customer with turn-key services, including high quality machine, special additives, latest formulation technology, installation and commissioning on site, consulting and updating equipment in machine lifetime.
