Energy Saving Dry Mortar Production Line Ribbon Mixer Semi automatic Quick Operation
Good Quality Semi-Automatic Dry Mortar Plant High Efficiency And Energy Saving
Description of MG Semi-Automatic Dry Mortar Plant:
Mortar production working principle: all raw materials from a hopper feeder, first put into cement and fiber additives, then stir 3 minutes, then add quartz sand and mix 5 minutes, the produced dry mortar can be lifted to storage bin and packaged.
Complete production line (feeding, mixing and packaging) for dry mortar, which will greatly improve production efficiency, save labor, reduce production costs, is a low investment, high efficiency, quick operation, high return benefit dry mortar production equipment
Main Features of MG Semi-Automatic Dry Mortar Plant:
1) High efficiency mixing system:
The main mixing system of the production line adopts double shaft paddle mixer, which has advantages of quick mixing, gentle action, no residuals, no damage, little dust and high output per shift.
2) Hoisting and transmission system:
The hoist conveyor of this equipment is Bucket elevator.
3) Dust removal systems:
The equipment is fully sealed and no dust leakage , used multi-spot dust removal system.
4) Feeding port and discharging port together equipped with dust removal system, the production line can optimize the environment of work site and ensure the health of the employees .
5) The productivity is 6-10 T/H.The standard area is 500~2000㎡ or so. According to the layout type, It is up to the customer's workshop area.
Technical parameters of MG dry mortar plant:
| Production line mode | Output | Occupied area | Equipment height | Remark of batching and packing |
| Simple type | 3t/h | 40-60m2 | 3-6m | Manual batching, automatic packing |
| Semi automatic of serial mode | 6-8t/h | 50-80m2 | 6-8m | Automatic batching of coarse material, manual batching of additive, automatic packing |
| Semi automatic of tower mode | 8-10t/h | 40-100m2 | 8-10m | the same to serial semiautomatic mode |
| Fully automatic of tower mode | 10-30t/h | 60-500m2 | 10-25m | Automatic batching of all raw material and packing |
Application of MG Semi-automatic Dry Mortar Plant:
The Semi-automatic dry mortar plant can produce the following dry mortars:
1) Bonding mortar:
2) Masonry mortar,
3) wall and floor tile adhesive mortar;
4) Anchorage mortar etc.
5) Decoration mortar;
6) Decorative plaster;
7) Inner and outer wall putty;
8) Colorful decoration mortar etc;
9) Protection mortar;
10) Water-proof mortar;
11) anti-corrosion mortar,
12) self-leveling mortar,
13) wear resistance mortar,
14) thermal insulation mortar,
15) sound insulation mortar,
16) repair mortar,
17) mildewproof mortar,
18) shielding mortar etc.

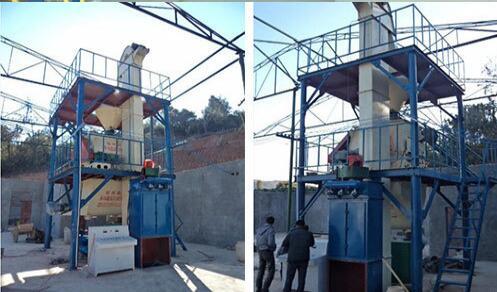

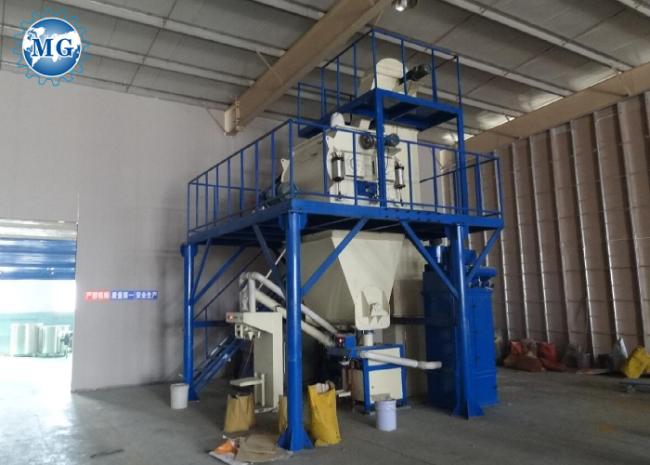

Customer working Site of MG Semi-Automatic Dry Mortar Plant:
