Big Capacity Electric Driven Dry Mix Mortar Manufacturing Plant For Wall Putty Mixing
Carbon Steel Small Spiral Ribbon Mixer Dry Mortar Plant for Tile Adhesive, Wall Putty Mixing

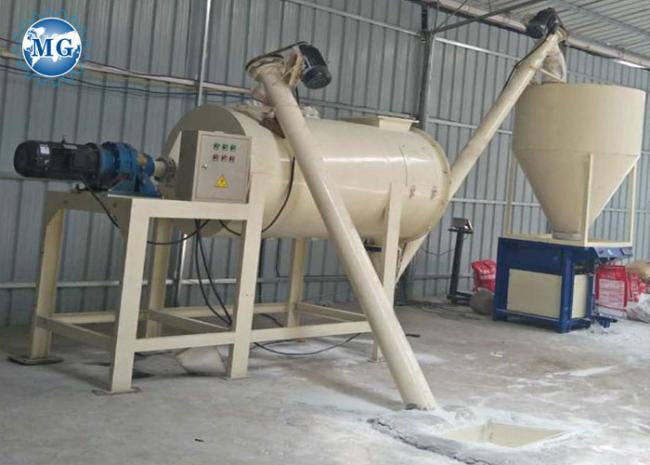

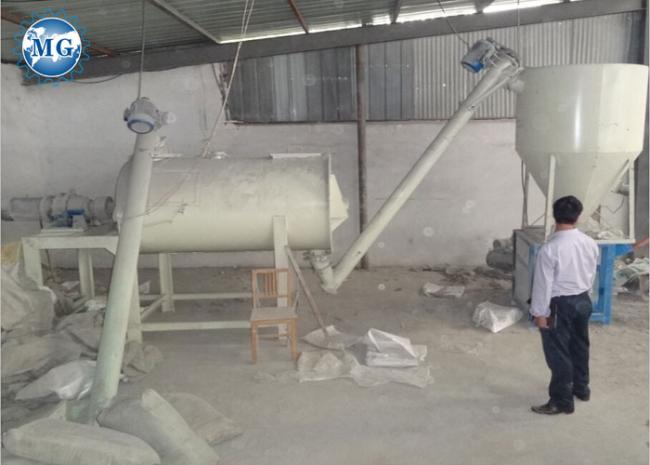

Overview of simple dry mortar production line
MGDM3.0 simple dry mortar plant, capacity at 3-4t/h, with manual feeding material, automatic filling and packing. It’s feature at low cost, less occupation area. it includes one ribbon mixer, two pieces of screw conveyors, one finished product silo and one automatic packing machine ,one air compressor, and one control cabinet. Occupied area: 25-35m2, Height: 3.2m.
Advantages of simple dry mortar production line
1.It is easy to operate,2-3 people can operate , effectively save the labor.
2.Environmental friendly: this type mixer improved the working environment, and reduced the working labor intensity.
3.It requires little investment and small occupation area but with good efficiency. greatly save capital investment.
4.This machine is energy-saving, low noise, little pollution. Greatly reduces the production cost.
5. We can provide one-stop service from design to installation according to our customers’ specific requirement.
Main technical parameters
| Product name | MGDM-3.0 simple dry mortar plant |
| Output capacity | 1-3T/H |
| Occupy area | 30-40m2 |
| Machine height | 3-4m |
| Man power | 2-3 people |
| Bag packaging range | 15-50kg per bag adjustable |
| Voltage | 380v/440v 50/60Hz or customized |
| Mixing power | 18.5kw |
| Thickness | 5-6mm |
| Mixing time | 10-15min/batch |
Application of MG dry mortar mixing equipment:
Dry mortar mixing equipment can produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mild waterproof mortar, shielding mortar etc.
Loading pictures of simple dry mortar plant
We are specialized manufacturer of dry mortar plant and silos for 20 years, we always provide our clients turnkey project of dry mortar plant from working site planning to dry mortar machines, sand dryer, installation and training, formula, after sales services and life time technical support.
