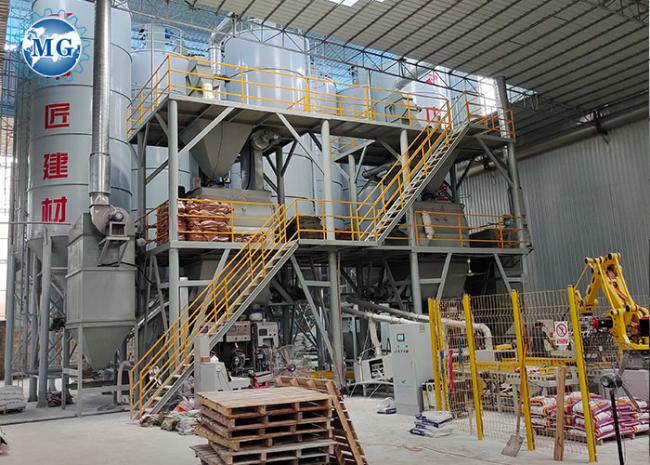

1. Description Of MG Automatic Dry Mortar Mixing Plant:
The main components of this production line: raw material storing system, automatic weighing system, conveying system, mixing system, pneumatic system, packing system and dedusting system. the main control system administrate the production order based on fixed formula ratio, thus the production line will dosing the coarse materials from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a short period(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, then down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transferred to finished mortar area, ready for sale.
2. Parameter of MG Full Automatic Dry Mortar Mixing Plant:
| No. | Product Name | Model | Function and usage |
| 1 | Bucket elevator |
Chain type lifting capacity: 15-100T/H Belt type lifting capacity: 10-35T/H |
An high efficient vertical lifting device to carry Granular material from ground to silos top or premix hopper, powder material usually feeding by pump truck. |
| 2 | Detachable Storage System | Volume: 60T, 100T 150T, etc. | To store dry raw material powder such as cement, sand, fly ash, caco3, slag etc. |
| 3 | Screw Conveyor |
Size: Φ165/Φ219/Φ273*6000m |
An horizontal conveying device to carry the materials to the weighting hopper. |
| 4 | Weighting System | Volume: 2m3/3m3/4m3/6m3 | Automatic weighting different materials device |
| 5 | Twin Shaft Agravic Mixer |
Mixing time:3-5min/batch Mixing capacity: 2m3/3m3/4m3/6m3/8m3/10m3 |
To mix materials uniformly and high efficiency, MG fly cutter system in the top of mixer will cut and break up the fibre easily. |
| 6 | Finished product silo | Volume: 2m3/3m3/4m3/6m3 | To store the end product and preparing for packing. So that the weighting system, mixing system and packing system can work constantly. |
| 7 | Automatic weighing packaging machine |
Impeller valve type Pneumatic valve type Packing range: 15-50kg/bag, packing accuracy can be + / - 0.5kg.
|
To pack the end product and automatically sewing, it can realize automatically weighing and packaging.
|
| 8 | PLC Control cabinet | PLC touchable screen or computer operation. | To operate and control all machine parts. The touchable display can input and record more than 10 different kinds of formula. |
| 9 | Air compressor | Common type or screw compressor type | Provide air source for silos, dust collectors, premix hopper, twin shift agravic mixer, end product hopper, packing machines, etc. |
4. Application of MG Automatic Dry Mortar Mixing Plant:
The dry mortar production line can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

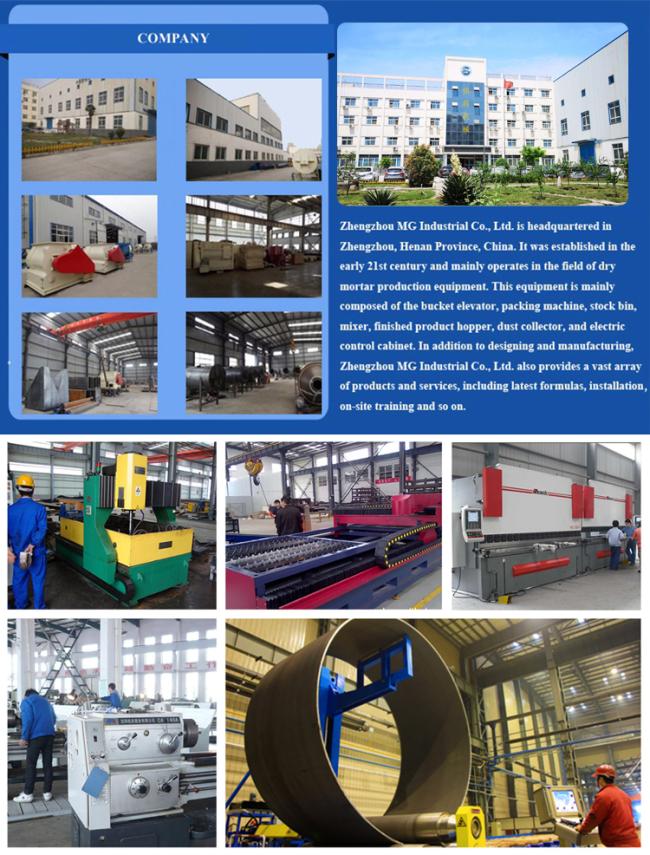

5. Factory and Workshop
6. Packing and Delivery
7. Certificates
We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support. Further details can contact Ms. Zoey phone/wechat/whatsapp: +86 15617507836
Welcome your inquiry and visiting!
