HW13710 Transmission Fuel Tanker Trucks 6x4 371HP 16 M3 Capacity ZZ1257M5247A

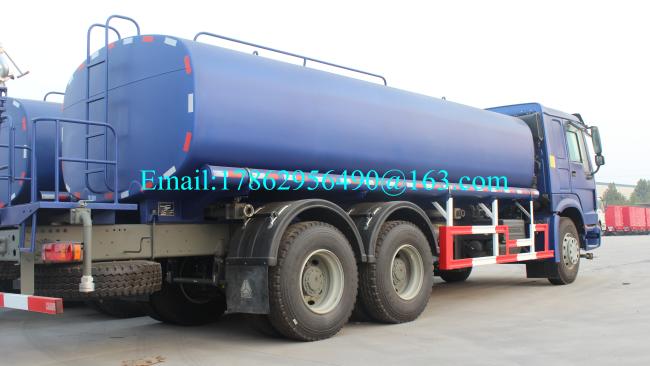

ZZ1257M5247A HOWO 6x4 371HP 16 m3 oil tank truck with HW13710 transmission
Description:
This model adopt HW76 cabin, the designer from Italy, and Powerful engine, reinforced axle, excellent performance, and the many color choice, and the best cost and performance, deeply favored by oversea customers.And the main parts adopt international well-known brands,for example German ZF8098 steering,German WABCO brake control system,HOWO series of transmission,BEHR water tanker,safety and reliable.And the many color choice, and the best cost and performance, deeply favored by oversea customers.It can transport kinds of bulk cargo in normal roads and tough roads.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Towing of vehicle with a traction device, designed for towing all kinds of semi-trailers
Competitive Advantage:
1. Warranty: one year
2. Production time: within 35 working days
3. Shipping: we have logistic team, can cargo your truck fast and safety.
4. Single-line air-assisted brake system,safe and reliable.
5. Professional team for spare parts and aftersales services.
6. Technique support and training.
7. Customization service, as per your request, we will customize our production for you
Specifications:
| Truck Model | ZZ1257M5247C | ||
| Truck Brand | SINOTRUK—HOWO | ||
| Driving Type | Left OR Right Hand Driving | ||
| Dimension(Lx W x H)(mm) | 11184x2500x3050 | ||
| Approaching angle/Departure angle(°) | 16/10 | ||
| Overhang(front/rear) (mm) | 1500/3109 | ||
| Tank capacity( m3 ) | 16 m³ | ||
| Wheel base (mm) | 5225+1350 | ||
| Max speed(km/h) | 90 | ||
| Curb weight(kg) | 11670 | ||
| Total weight(kg) | 25000 | ||
| Engine | Model |
WD615.47,water-cooled,four strokes, 6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
|
| Fuel type | Diesel | ||
| Horse Power | 371hp | ||
| Emission | EURO II | ||
| Fuel tanker capacity(L) | 300 | ||
| Transmission | Model |
HW13710 10 forwards and 2 reverse |
|
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake |
spring energy, compressed air operating on rear wheels |
||
| Auxiliary brake | Engine exhaust brake | ||
| Steering system | Model |
ZF8098,hydraulic steering with power Assistance Ratio:22.2-26.2 |
|
| Front axle |
HF7 Loading capacity: 7000kg |
||
| Rear axle |
HC16 Loading capacity: 2X16000kg |
||
| Color | Optional | ||
| Tire | 12.00R20 | ||
| Tire quantity | 10+1 spare | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab |
HW76 cab, with one sleeper and air-conditioner,all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat . |
||
