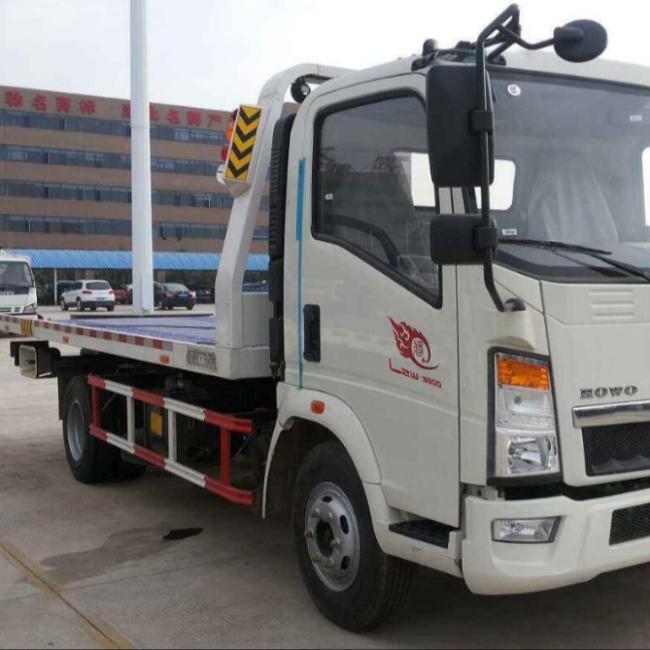

4x2 3 Ton Road Wrecker Truck With Lifting / Pulling / Hoisting ZZ1087G381CE183
ZZ1087G381CE183 SINOTRUK HOWO 4x2 3 ton Road Towing Wrecker Truck with Optional color
Description:

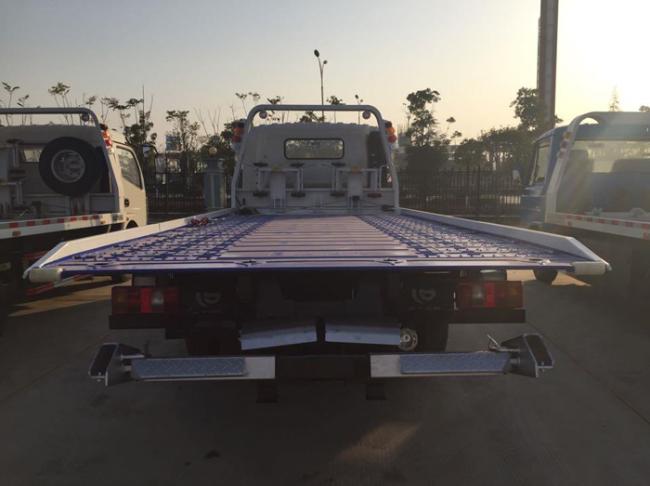

3P2A flat bed, 5.6 meters long, 2.3 meters wide. Drag 3 tons, payload 3 tons, rear lifting can be 2.965tons.
Multi valve, balance valve is imported by Italy original (Haide), and the hydraulic cylinder Foshan (Haizhanli) adopts German technology,double layer steel wire hydraulic hose, all imported seal ring and split mould press welding panel. and it is wear-resistant, anti sliding and great resistance.Bilateral linkage operating system, 3 rear working lights, a 4 ton hydraulic winch (25 meters wire rope), 1 hand washing box, 2 small cars, L type tire bracket 1 pairs, 6 bundling belt, 1 pair of fork, 1 fork seat pair, 1 chain hook,All hydraulic components are imported or China brand optional.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Our advantages:
1. Shipping:have logistic team, can cargo your truck fast and safety.
2. High quality and competitive price.
3. All colors are available according to your choice.
4. Fast production period, and quick arrangement of delivery.
5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.
Specification:
| Type | 4x2 Wrecker Truck | |
| Brand | Sinotruk howo ZZ1087 | |
| Cab | Single row | |
| Dimension | Overall dimensions(mm) | 7430x2300,2350x2500 |
| G.V.W (kg) | 8280 | |
| Curb weight(vehicle) (kg) | 5185 | |
| Front/Rear Axle Loading (kg) | 3000/5280 | |
| Max speed (Km/h) | 95 | |
| Engine | Engine model | CY4SK151 |
| Maximum power | 170hp / 125 kw | |
| Displacement (lit) | 3856 ml | |
| Engine Manufacturer | Chaochai | |
| Chassis | Chassis Model | ZZ1087G381CE183 |
| Wheel base(mm) | 3800 | |
| F/R track base(mm) | 1795/1555,1595,1800 | |
| F/R overhang(mm) | 1160/2470 | |
| Spring plate | 11/9 7,9/12 9,11/11 7 | |
| Front axle / rear axle (kg) | 3000/5280 | |
| Type of fuel | Diesel | |
| Brake system | Air braking | |
| Operation control system | Power Steering | |
| Electric system | 24V | |
| Tyres&Tire quantity | 7.50R16LT,8.25R16LT,215/75R17.5 | |
| Special performance&Equipment | ||
| Flat bed system |
Length (mm) | 5600 |
| Width (mm) | 2300 | |
| Min. Inclination Angle | 8° | |
| Payload (kg) | 3000 | |
| Lifting system | Max. lift weight (retracted) kg | 1500 |
| Max. lift weight (extended) kg | 1100 | |
| arm length (mm) | 1640 | |
| Arm Inclination Angle | -10~8° | |
| Cross arm max ground distance (mm) | 500-600 | |
| Winch | Rated Pull Force of Winch | 40 KN |
| No | 1 | |
| Wire rope diameter (mm) | 11 | |
| Wire rope length (m) | 25 | |
