12 Wheeler 8x4 50 Ton Truck Mounted Knuckle Boom Cranes 50m Working Height

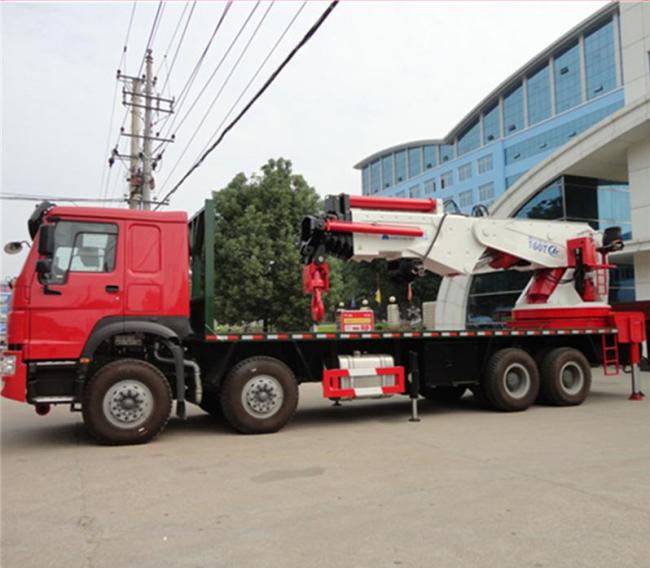

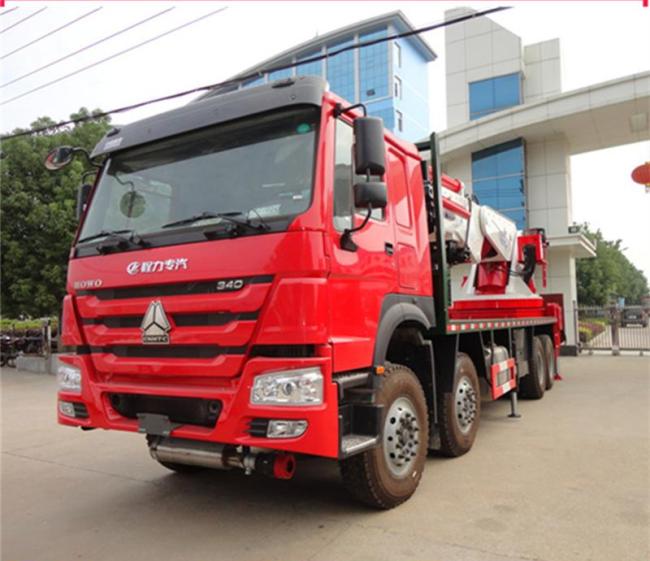

Sinotruk 8x4 12 wheeler 50 ton knuckle boom truck mounted crane with 50m working height
Description:
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Features:
1. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
2. Professional team for spare parts and aftersales services.
3. Technique support and training.
4. Customization service, as per your request, we will customize our production for you
5. Warranty: one year or 10000 km
6. Production time: within 35 working days
Specifications:
T1000 vibration construction machinery road roller compactor
| TRUCK MOUNTED CRANE | ||
| # | Descriptions | Specifications and types |
| General | Truck Brand | Chengliwei (our brand) |
| Chassis Brand | Sinotruk | |
| Approx. Dimension | 11990*2500*3990 mm | |
| GVW./Kerb Wt. | 31000 / 18925 kg | |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 8X4,LHD or RHD |
| Fuel Type | Diesel | |
| Engine Make & Model | Sinotruk engine | |
| Power | 380 Ps / 279KW | |
| Emission Standard | Euro II or EURO III or EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 2150+4600+1350 mm / 4 | |
| Tyre Specfication | 15/80R22.5 16PR,295/80R22.5,12R22.5 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 102 km/h | |
| Paint | Automative metallic paint | |
| Cargo box | Cargo body dimension | 8000*2390*500 mm |
| Crane | Max Lifting Capacity | 150,000kg |
| Working radius | 15.5m | |
| lifting height | 19m | |
| Numbers of outtrigger | 6 units outtrigger | |
| Rotation Angle | 360 all rotation | |
| Installation Space | 850-1150mm | |
| Structure& Function |
All the hydraulic pressure system and consumable parts adopted famous international brand . 20ton -150 ton crane warranty 2 years !!! Crane loading weight :20t,25t,30t,40t,50t,60t,70t,80t,90t,100t,120t,150t Remote control ,3 ton ,5 ton winch ,additional main beam optional Crane Installation Site: Rear installation |
|
