Sinotruk HOWO 4x2 5 Ton Crane Truck , Telescopic Boom Truck Mounted Crane For Lifting

Price Negotiable
Price: Negotiable
MOQ: 1 UNIT
Delivery Time: 30-45 work days
Brand: SINOTRUK
Product Description

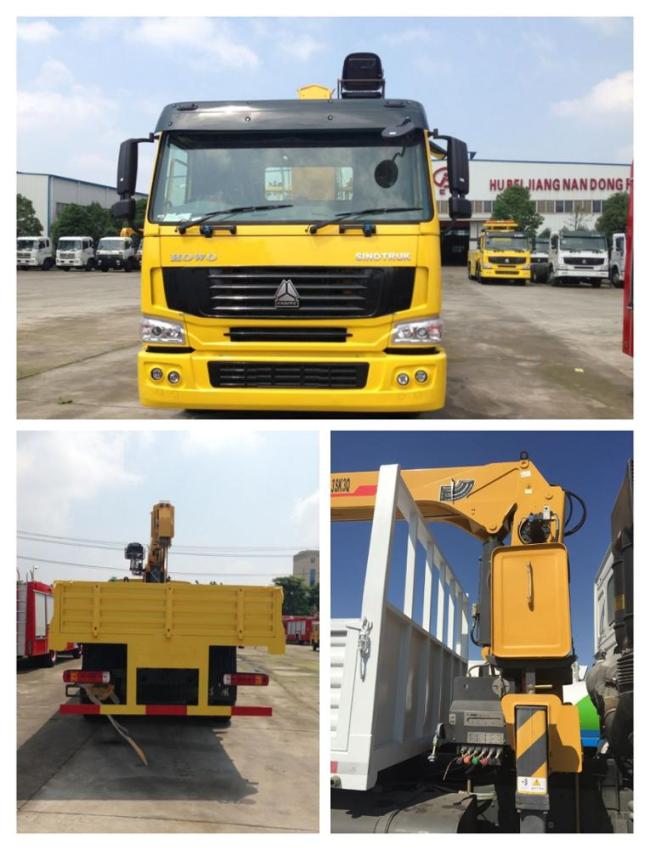

China Sinotruk HOWO 4x2 truck mounted 5 ton telescopic boom crane for lifting and transport delivery



Description:



HOWO 4x2 truck mounted 5 ton telescopic boom crane are produced by SINOTRUK.Adopt all-steel forward control,70̊ hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder,safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorbers.

Quality is the key to long-term cooperation between buyers and sellers.So much attention has been paid to it.The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.

All spare parts with anti-fake label are from the original manufacturers with original part number. The quality is 100% guaranteed.



Packing:



Nude Pack.The packing of the commodity shall be in accordance with the export

standard packing of the manufacturer, be suitable for long distance transportation of

ocean and inland. The Seller shall be take measures against moisture,

shocks and rust according to the special needs of the commodity.


Competitive Advantage:



1. The designing according to the customers'requirement
2. Offer you the best quality & reasionalble price
3. Perfect after-sale service
4. we are having strong professinal design team
5. Fast delivery. small order is welcomed.
6.Long lasting working life time.

7.Product upgrading and expansion of species



Specifications:

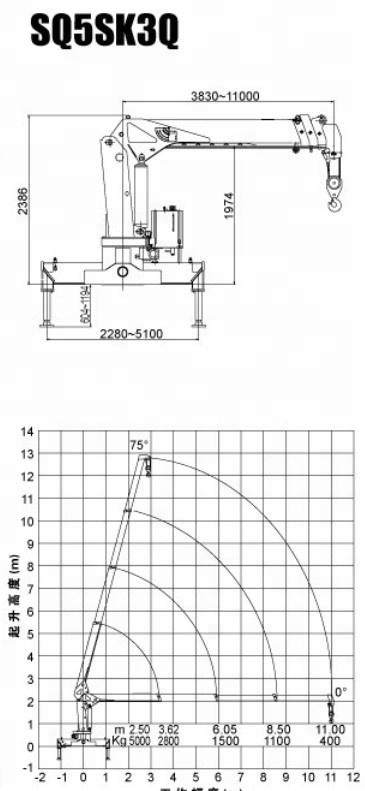

Crane Part
Crane Model SQ5SK3Q
Max Lifting capacity(kg) 5000
Max Lifting Moment(T.M) 12.5
Recommend Power(kw) 18
Crane Weight(kg) 2215
Installation space(mm) 900
Rotation Angle All Rotation
Hydraulic System Flow 32 L/min
Hydraulic System Pressure 20 Mpa
Crane Type telescopic boom
Chassis Part
Truck Brand SINOTRUK—HOWO
Truck Model ZZ116M4611W
Driving Type Left Hand Driving Optional
Dimension(L*W *H,mm) 8487x2496x3080
Cargo body size (L*W*H, mm)

4800*2300*600

Bottom:3mm, Side: 1.5mm

Approaching angle/Departure ang(°) 26/23
Overhang(front/rear) (mm) 1570/2200
Wheel base (mm) 4600/5600
Max speed(km/h) 78
Curb weight(kg) 7850

Engine

(Steyr technology)

Model WD615.69
Fuel type Diesel
Horse Power 336HP
Emission EURO II
Fuel tanker capacity(L) 400
Transmission

HW13710

10 forward 2 reverse

Steering system 8198
Front axle HF7
Rear axle ST16
Color Optional
Tire 12R22.5 6+1 (spare)
Cab

HW76

single sleeper with air conditioner
