CA5310GYYP63K2L6T4E4 8x4 Tanker Truck / 28000L Oil Delivery Trucks With 4 - 6mm Carbon Steel Material
CA5310GYYP63K2L6T4E4 8x4 28000L oil delivery trucks with 4-6mm carbon steel material
Description:
1. High quality and factory price fuel tank semi trailer
2. Past ISO&3C fuel tank semi trailer
3. Carbon steel fuel tank semi trailer
4. 13tons double-axle BPW or FUWA axle fuel tank semi trailer
5. 12 sets 11.00-20 tyres fuel tank semi trailer
6. 90# or 50# JOST kingpin fuel tank semi trailer
7. Capacity :Optional
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1.Our refuelling truck equipped with famous refuelling machine
2. Our refuelling truck equipped with speed limiter to control speed to 79km/h
3. Our refuelling truck equipped with famous oil pump, good quality
4. Our refuelling truck really factory sale, best price and servise
5. Our refuelling tuck are with ISO and 3C certification
6. Tank material is 4-6mm carbon steel
7.All welding machines are from France SAF.FRO, Austria FRONIUS and American KEMPPI.
8.Welding operators have ISO9606-2 license issued by TUV.
9. All tankers are tested with X-Ray and Tensile Strength Test
10.With main safety parts by OPW, Civacon, Jost, WABCO, BPW, etc.
Truck Parameters:

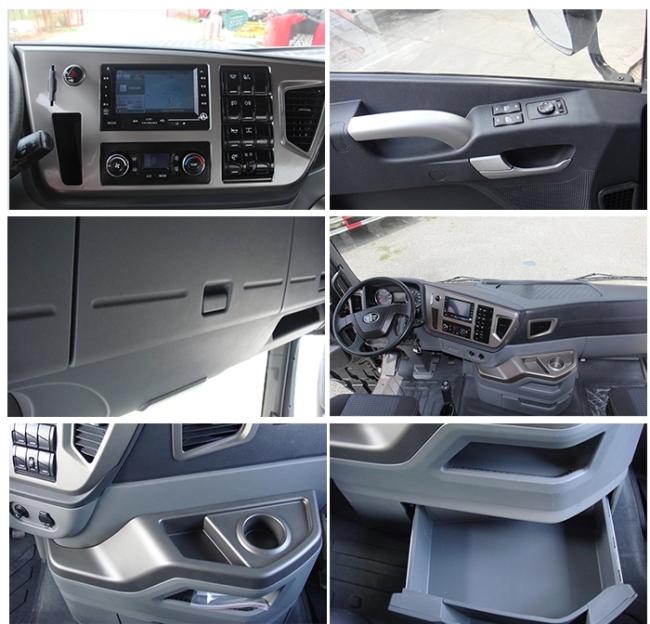

| Vehicle Main Dimensions | Cab type | FAW mid-long cab,single sleeper, and an A/C |
| Overall dimension(L*W*H)(mm) | 11900*2500*3454 | |
| Axle number | 4 | |
| Drive type | 8X4 | |
| Steering type | LHD/ RHD with ZF8098 hydraulic power steering | |
| Max. Drive Speed (km/h) | 79 | |
| Curb weight (kg) | 31000 | |
| Loading Capacity(kg)/(L) | 28000L | |
| Chassis parameter | Chassis Model | CA5310GYYP63K2L6T4E4 |
| Chassis manufacturer: | FAW | |
| Front/ rear Axle load(Kg) | 6500/6500/18000 | |
| Brakes | Service brake: dual circuit compressed air brake | |
| Tire | 10.00-20,10.00R20,11.00-20 16PR | |
| Engine parameter | Brand | FAW |
| Model | CA6DL2-35E4U2 | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 261KW/360HP | |
| Displacement(ml) | 8600ml | |
| Emission Standard | Euro 4 | |

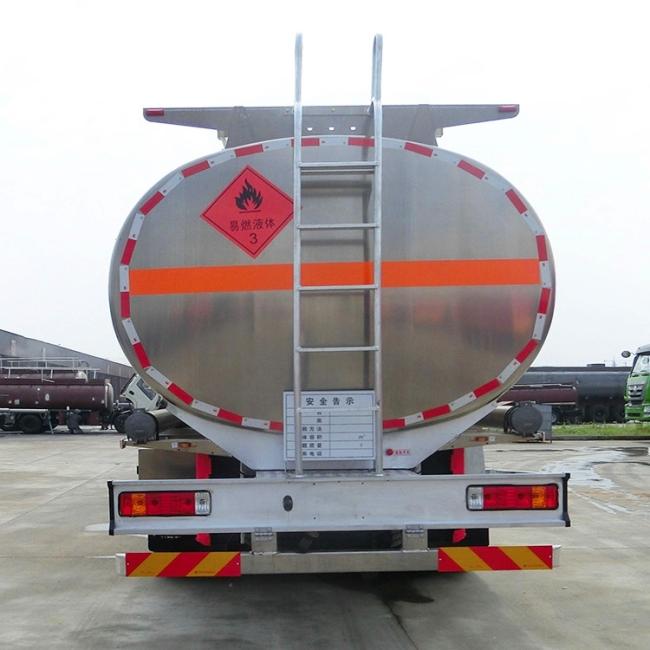

| Superstructure parameter | 1. Tanker material:4-6mm carbon steel, stainless steel,aluminium alloy and pure aluminum cans(according to different requirements) | |
| 2. Separate parts for different chemicals,out and in through pump,self-flow.Optional equipment:flowmeter,computer tax-controlled tankers,15m TLJP(self-return), emergency shutdown device.Multichannel wave plate in tanker. | ||
| 3. Equipped with self-priming pump,gear pump,double pump. | ||
