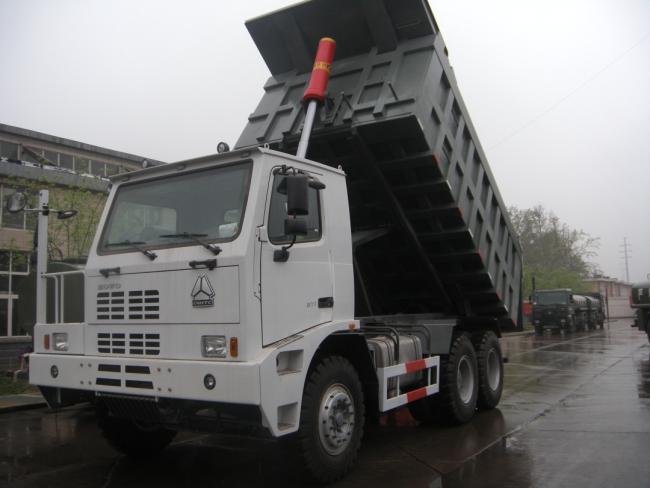

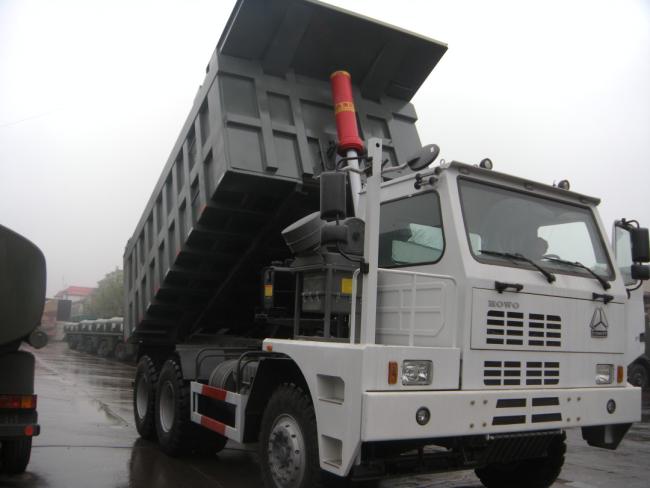

HOWO 70T Mining Tipper Truck / Off - Road Dump Truck ZZ5707S3840AJ
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
60 days
Brand:
SINOTRUK HOWO 70
Product Description
Product Details
HOWO 70T Mining Tipper Truck/SINOTRUK mining dump truck/ CNHTC HOWO dump truck/ Special truck / off-road dump truck
| Chassis Model | ZZ5707S3840AJ,ZZ5707S4040AJ,ZZ5707S4840AJ,ZZ5707V3640CJ,ZZ5707V3840CJ,ZZ5707V4040CJ,ZZ5707V4840CJ |
| Driving Type | 6X4 |
| Cabin | HW7D cab, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorbe |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47T2, 371 HP ;D12.42T2,420; Emission :Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW21712, 12F & 2R, with PTO |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle |
HF12,1x12000 KGS Steering with doubleT-cross section beam |
| Rear Axle | AC26, 2x26000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:10.47,8.51 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis |
Front suspension: 1500mm,Half the elliptical leaf spring with shock absorber cavitation
Rear suspension: 1000mm, The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt
|
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 14.00-25, radial tyres with one spare tyre |
| Fuel Tank | 500L |
| Cargo Body | Length:5.8M,6.3M,6.8M,7.6M;Width:3.1M;Height:1.2-2M |
| Overall Dimension | 9045*3200*3770 mm |
