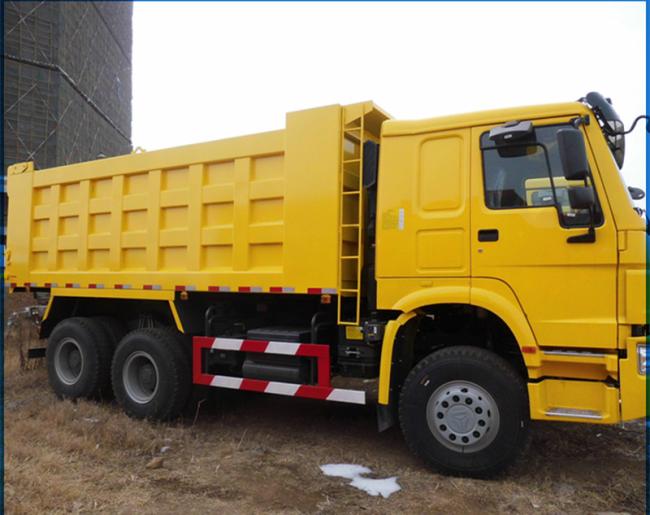

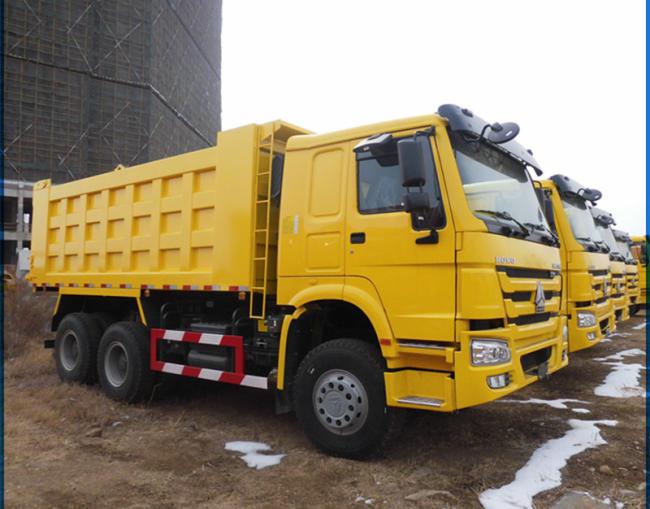

ZZ3257N3647A HW19710 371HP Heavy Duty Dump Truck
ZZ3257N3647A 371HP Heavy Duty Dump Truck 10 Wheelers With HW19710 Transmission
Description:
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 40-45ton.
4. Cabin: HW70 with no sleeper bed; HW76 with one sleeper bed. HW79 with two sleeper beds. With air conditioner.
5. LHD or RHD are optional
6. Tipper body: Size could be customized as requirement.
7. One year for three key parts (engine ,gear-box, axle)
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Our advantages:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Main Discription:
|
Model |
ZZ3257N3447A |
||
|
Condition |
New |
||
|
Drive type |
6×4 |
||
|
Brand |
HOWO Dump Truck |
||
|
Steering Wheel Type |
LHD(Left hand drive) (RHD is in option) |
||
|
Overall Dimension(mm) |
7835×2496×3170 |
||
|
The total mass(Kg) |
25000 |
||
|
Kerb weight(kg) |
12390 |
||
|
Wheel base(mm) |
3425+1350 |
||
|
Dimension of cargo body(mm) |
L×W×H |
5200×2300×1500 |
|
|
Thickness of steel plate |
Bottom: Side: |
||
|
Capacity |
|
||
|
Tipping system |
HYVA Front tipping system |
||
|
Fuel Type |
Diesel |
||
|
Engine |
Type |
SINOTRUK brand,WD615.47 Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled Direct injection |
|
|
Emission standard |
EURO II |
||
|
Horse power |
371hp |
||
|
Maximum output |
273Kw @ 2200 rpm |
||
|
maximum torque |
1500N.m |
||
|
Displacement(L) |
9.726 |
||
|
Cabin |
HW76 Cabin with two seats, and one sleeper, air conditioner, |
||
|
Steering |
German hydraulic steering with power assistance |
||
|
Transmission |
Manual Type. HW19710 Sinotruk 10 Speed Transmission,10 forward and 2 reverse |
||
|
Clutch |
Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting |
||
|
Front axle |
HF9(9 ton), plate (disc) brake |
||
|
Driving axle |
HC16(16 ton) Heavy hub reduction drive axle |
||
|
Brake |
Service brake: Brake gap can be adjusted automatically, double circulation air brake system Parking brake: Potential springs pressing on middle and reel wheels Engine brake: Engine exhaust brake(EVB) |
||
|
TYRE Size |
12.00-20 tires No. tire: 10+1 spare |
||
|
Suspension system |
Leaf spring type |
||
|
Leaf Spring of Front/Rear |
10/12 |
||
|
Air condition includes |
YES |
||
|
Fuel tank |
300L |
||
|
Color |
As the customer request |
||
