90 Degree BSP Industrial Hose Fittings Female 60 Degree Cone With Cr3 Zinc Plated 22691

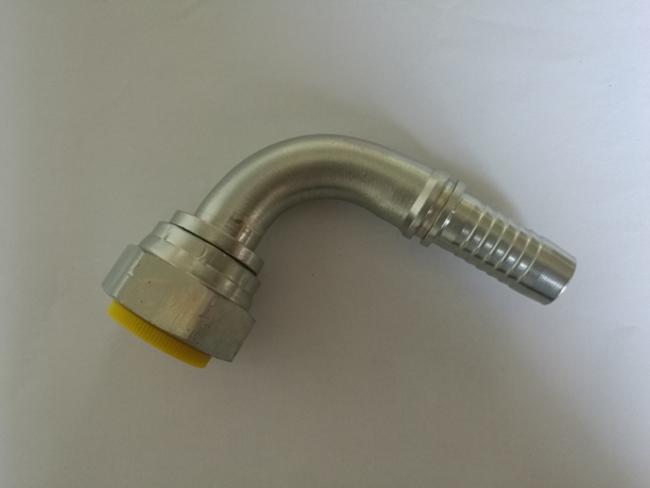

90 Degree BSP Female 60 Degree Cone Hydraulic Hose Fittings with Cr3 Zinc Plated ( 22691 )
Hydraulic Hose Fitting/Hydraulic fitting
1. competitive price
2. Promise quality
3. EATON standard
4. ISO9001
Hydraulic Hose Fitting/Hydraulic fitting
Our main Hydraulic Hose Fittings, Hose Fittings, Hydraulic Fittings:
1) FERRULE
FERRULE for SAE100R1AT/EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN853 2SN HOSE
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE for 4SH, R12/32 HOSE
2) SWAGED METRIC FITTINGS
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings
3) SWAGED BRITISH FITTINGS
BSP O-RING Seal Fittings BSP Flat Seal Fittings
BSP Multiseal Fittings BSP 60°Cone Seal Fittings
BSPT Fittings JIS BSP 60°Cone Seal Fittings
4) SWAGED AMERICAN FITTINGS
SAE O-RING Seal Fittings ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings
5) STAPLELOK FITTINGS
BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS
6) METRIC ADAPTERS
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
Metric Thread 74°Cone Flared Tube Adapters
JIS Metric Thread 60°Cone Adapters
7) BRITISH ADAPTERS
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8) AMERICAN ADAPTERS
ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
9) OTHER ADAPTERS
Application: Automobile , Engineering Machinery, Lathe, Agriculture Machine,Mining, Spurting the Oil Paint, Metallurgy petroleum , Construction,Chemicals, Textile, Ships, Ocean,Military, Recreation, Electronics and so forth.
Note: Special dimension and other standard hose fittings are available under customer's requirements.
22691 22691-T 22691-W
| Part No. | Thread E | Hose Bore | Dimensions | ||||
| DN | DASH | A | C | H | S2 | ||
| 22691-02-03 | G1/8"X28 | 5 | 03 | 26.5 | 5.5 | 31.5 | 14 |
| 22691-02-04 | G1/8"X28 | 6 | 04 | 30 | 5.5 | 34.5 | 14 |
| 22691-04-03 | G1/4"x19 | 5 | 03 | 26.5 | 5.5 | 33.5 | 19 |
| 22691-04-04 | G1/4"x19 | 6 | 04 | 30 | 5.5 | 36.5 | 19 |
| 22691-04-05 | G1/4"x19 | 8 | 05 | 33 | 5.5 | 39.5 | 19 |
| 22691-04-06 | G1/4"x19 | 10 | 06 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-04 | G3/8"x19 | 6 | 04 | 30 | 6.3 | 37.7 | 22 |
| 22691-06-05 | G3/8"x19 | 8 | 05 | 33 | 6.3 | 40.7 | 22 |
| 22691-06-06 | G3/8"x19 | 10 | 06 | 35.3 | 6.3 | 43 | 22 |
| 22691-08-06T | G1/2"x14 | 10 | 06 | 35.3 | 7 | 43.3 | 27 |
| 22691-08-08 | G1/2"x14 | 12 | 08 | 41 | 7.5 | 51 | 27 |
| 22691-08-10 | G1/2"x14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 |
| 22691-10-08 | G5/8"x14 | 12 | 08 | 41 | 9.5 | 51.5 | 30 |
| 22691-10-10 | G5/8"x14 | 16 | 10 | 56 | 9.5 | 56 | 30 |
| 22691-12-08T | G3/4"x14 | 12 | 08 | 41 | 10.9 | 52.1 | 32 |
| 22691-12-10 | G3/4"x14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 |
| 22691-12-12 | G3/4"x14 | 20 | 12 | 64.9 | 10.9 | 66.1 | 32 |
| 22691-16-12T | G1"x11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 |
| 22691-16-14 | G1"x11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 |
| 22691-16-16 | G1"x11 | 25 | 16 | 78.7 | 11.7 | 73.8 | 41 |
| 22691-20-16T | G1.1/4"x11 | 25 | 16 | 78 | 11 | 69.5 | 50 |
| 22691-20-20W | G1.1/4"x11 | 32 | 20 | 91.5 | 11 | 84.3 | 50 |
| 22691-24-24W | G1.1/2"x11 | 40 | 24 | 109.4 | 13 | 103 | 55 |
| 22691-32-32W | G2"x11 | 50 | 32 | 131.8 | 16 | 123.3 | 70 |
