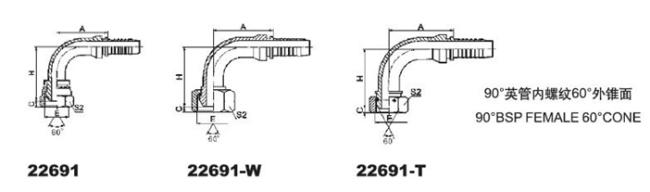

Female Hydraulic Pipe Fitting 60° Cone 22691 90° Bsp With Siver Golden Zinc
22691 90° Bsp Female Hydraulic Pipe Fitting 60° Cone Hydraulic hose and fitting
Features:
1) Hydraulic tube fittings / adapters: We made according to ISO 1179, 6162, 6149, 11926, J146; DIN 3852, 7642; SAE J513 standards, and can offer whole series with Metric series, BSP series, JIC series, ORFS series, NPSM series, Flange series, ORB series with straight, elbow 45 degree, elbow 90 degrees. Materials: Carbon steel, Brass, Stainless steel
2) Hydraulic hose fittings: We made according to GB/ T 5628, 9065; DIN 2353, 3861, 3865, 3870, 7642, 7643; SAE J513, J514, J516, J518, J1453, J1467; BS 5200, JIS B 8363 and can offer Swaged hose fitting, Crimped hose fitting, Interlock hose fitting, Reusable hose fitting, and Socket less hose fitting. Metric; BSP 60° cone, BSP O-ring, BSPT, BSP multi-seal; NPT, JIC 74° cone, SAE 90° cone, SAE flange, ORFS. Materials: Carbon steel
3) Our products of hydraulic hose fittings and adapters have good quality and competitive price. We are looking for long-term buyers / cooperators in the world.
| E | HOSE BORE | DIMENSIONS | S2 | |||||
| PART NO. | THREAD E | DN | DASH | A | C | H | ||
| 22691-02-03 | G1/8"X28 | 5 | 3 | 26.5 | 5.5 | 31.5 | 14 | |
| 22691-02-04 | G1/8"X28 | 6 | 4 | 30 | 5.5 | 34.5 | 14 | |
| 22691-04-03 | G1/4"X19 | 5 | 3 | 26.5 | 5.5 | 33.5 | 19 | |
| 22691-04-04 | G1/4"X19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 | |
| 22691-04-05 | G1/4"X19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 | |
| 22691-04-06 | G1/4"X19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 | |
| 22691-06-04 | G3/8"X19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 | |
| 22691-06-05 | G3/8"X19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 | |
| 22691-06-06 | G3/8"X19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 | |
| 22691-08-06T | G1/2"X14 | 10 | 6 | 35.3 | 7 | 43.3 | 27 | |
| 22691-08-08 | G1/2"X14 | 12 | 8 | 41 | 7.5 | 51 | 27 | |
| 22691-08-10 | G1/2"X14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 | |
| 22691-10-08 | G5/8"X14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 | |
| 22691-10-10 | G5/8"X14 | 16 | 10 | 56.5 | 9.5 | 56 | 30 | |
| 22691-12-08T | G3/4"X14 | 12 | 8 | 41 | 10.9 | 52.1 | 32 | |
| 22691-12-10 | G3/4"X14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 | |
| 22691-12-12 | G3/4"X14 | 20 | 12 | 65.5 | 10.9 | 66 | 32 | |
| 22691-16-12T | G1"X11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 | |
| 22691-16-14 | G1"X11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 | |
| 22691-16-16 | G1"X11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 | |
