45 Degree Elbow Industrial Hose Fittings , Female 24 Cone Thread 20441-T Metric Hose Fittings
45 Degree Elbow Metric Female 24 Cone Thread Hydraulic Hose Fitting 20441-T
Features:
1) Hydraulic tube fittings / adapters: We made according to ISO 1179, 6162, 6149, 11926, J146; DIN 3852, 7642; SAE J513 standards, and can offer whole series with Metric series, BSP series, JIC series, ORFS series, NPSM series, Flange series, ORB series with straight, elbow 45 degree, elbow 90 degrees. Materials: Carbon steel, Brass, Stainless steel
2) Hydraulic hose fittings: We made according to GB/ T 5628, 9065; DIN 2353, 3861, 3865, 3870, 7642, 7643; SAE J513, J514, J516, J518, J1453, J1467; BS 5200, JIS B 8363 and can offer Swaged hose fitting, Crimped hose fitting, Interlock hose fitting, Reusable hose fitting, and Socket less hose fitting. Metric; BSP 60° cone, BSP O-ring, BSPT, BSP multi-seal; NPT, JIC 74° cone, SAE 90° cone, SAE flange, ORFS. Materials: Carbon steel
3) Our products of hydraulic hose fittings and adapters have good quality and competitive price. We are looking for long-term buyers / cooperators in the world.

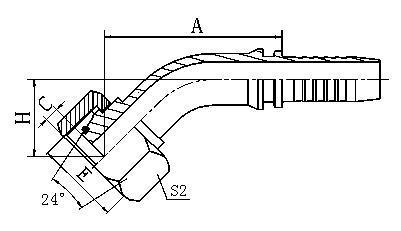

| PART Number | THREAD E | HOSE BORE | TUBE OD | O-RING | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||||
| 20441-12-04 | M141.5 | 6 | 04 | 8 | O06.5×1.5 | 45 | 2 | 26 | 19 |
| 20441-16-05 | M161.5 | 8 | 05 | 10 | O08.0×1.5 | 49.5 | 2 | 27.8 | 22 |
| 20441-16-06 | M161.5 | 10 | 06 | 10 | O08.0×1.5 | 51.3 | 2 | 27.8 | 22 |
| 20411-18-05T | M181.5 | 8 | 05 | 12 | O10.0×1.5 | 44.7 | 1.5 | 23.2 | 22 |
| 20441-18-06 | M181.5 | 10 | 06 | 12 | O10.0×1.5 | 53 | 2.5 | 29 | 24 |
| 20441-22-05T | M221.5 | 8 | 05 | 15 | O12.0×2 | 3 | 27 | ||
| 20441-22-06T | M221.5 | 10 | 06 | 15 | O12.0×2 | 49 | 3 | 25.3 | 27 |
| 20441-22-08 | M221.5 | 12 | 08 | 15 | O12.0×2 | 66.5 | 2.5 | 34 | 27 |
| 20441-26-08T | M261.5 | 12 | 08 | 18 | O15.0×2 | 61 | 2.1 | 28 | 32 |
| 20441-26-10 | M261.5 | 16 | 10 | 18 | O15.0×2 | 70 | 2.5 | 36 | 32 |
| 20441-26-12 | M261.5 | 20 | 12 | 18 | O15.0×2 | 2.5 | 32 | ||
| 20441-30-10T | M301.5 | 16 | 10 | 22 | O20.0×2 | 64 | 3.8 | 30 | 36 |
| 20441-30-12 | M301.5 | 20 | 12 | 22 | O20.0×2 | 84.5 | 4 | 40.5 | 36 |
| 20441-36-12T | M361.5 | 20 | 12 | 28 | O28.0×2 | 79.3 | 4.5 | 35.5 | 46 |
| 20441-36-14T | M362 | 22 | 14 | 28 | O28.0×2 | 4.5 | 46 | ||
| 20441-45-20T | M452 | 32 | 20 | 35 | O35.0×2 | 101.8 | 4 | 42.4 | 55 |
| 20441-52-20T | M522 | 32 | 20 | 42 | O42.0×2 | 4 | 46.6 | 60 | |
| 20441-52-24T | M522 | 40 | 24 | 42 | O42.0×2 | 113 | 4 | 60 | |
