Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter
Price:
By negotiation
MOQ:
1set
Delivery Time:
5 days
Product Description
Window Glass Vacuum Silicone Suction Cup Sucker Lifter
Product Description
Adjustable manual vacuum lifter is a glass handling equipment with flexible structure and simple operation. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand, dispensed with electricity, safe and reliable. It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises.
Paramenters
| Parameters of Care glass vacuum lifter | |||
| Model | SD400-03 | SD600-03 | SD800-03 |
| Rated load | 400kg | 600kg | 800kg |
| Sucker diameter | 250mm | 250mm | 250mm |
| Sucker qty | 4 | 6 | 8 |
| Vertical rotation | 0°-90° | 0°-90° | 0°-90° |
| Horizontal rotation | 360° | 360° | 360° |
| Charger | AC 220V | AC 220V | AC 220V |
| Power | 12V battery | 12V battery | 12V battery |
| Weight | 80kg | 100kg | 120kg |
Note: various lifting capacity and power supply available.

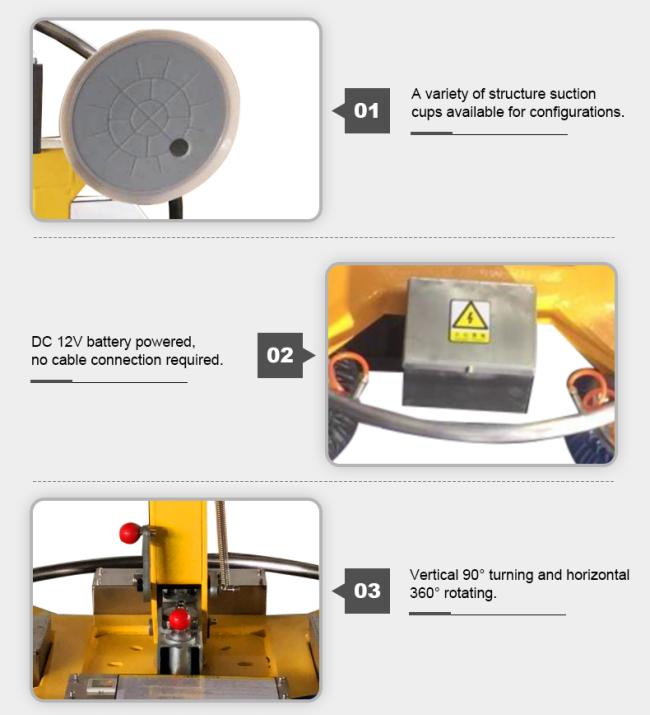

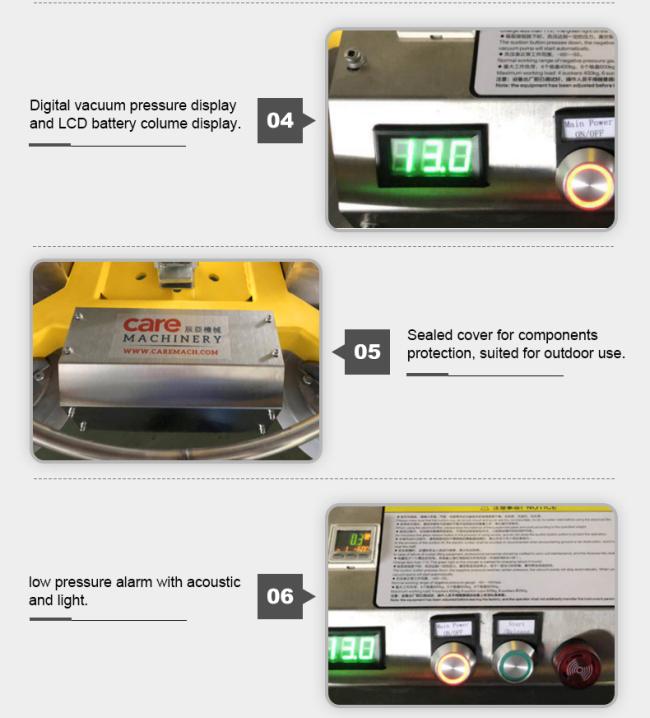

Products Features
Product Application
The lifter is widely used for lifting, handling and moving of glass, steel and wood sheet and marble.
