Automatic Rice Husk Furnace 600,000Kcal Biomass Stove
600,000 Kcalorie biomass stoves paddy husk corn cob stove
WHAT'S THE ADVANTAGE OF THE BIOMASS FURNACE
ENERGY SAVING

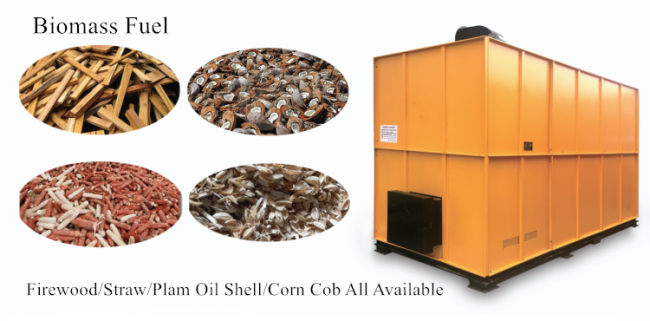

All kinds of biomass pallet are available for this furnace,such as paddy husk,corn cob,wood chips,coffee hull
LOW DRYING COST
No need to consume diesel or gas,which how could save lots of fuel cost
ENVIRONMENT FRIENDLY
No air pollution for biomass material,100% environment protection facility
Parameters
| Model | PBF-45 | PBF-60 | PBF-90 |
| Heating Mode | Indirect | ||
| Ignition Mode | Manual | ||
| Feeding Mode | Manual/Automatic | ||
| Heating Temperature | ≤ 100℃ | ||
| Heating Supply | 450,000 Kcalorie | 600,000 Kcalorie | 900,000 Kcalorie |
| Biomass Fuel | Husk/Coal/Wood & Other Biomass Material | ||
| Husk Consumption | 60~180 kg/hr | 80~240 kg/hr | 120~360 kg/hr |
| Input Voltage | 3 Phase 220V/380V,50Hz | ||
| Power (kw) | 4.5 | 5.2 | 6.2 |
| Control Method | Automatic Control | ||
| Dimensions(mm) | 3500*1500*2200 | 3800*1500*2520 | 5000*1800*2520 |
| Safety Devices | Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper | ||
| Supply Dryer Quantities | 5HPX-15 3 sets | 5HPX-15 4sets | 5HPX-15 6 sets |
| 5HPX-20 2 sets | 5HPX-20 3 sets | 5HPX-20 4 sets | |
| 5HPX-30 1 set | 5HPX-30 2 sets | 5HPX-30 3 sets | |

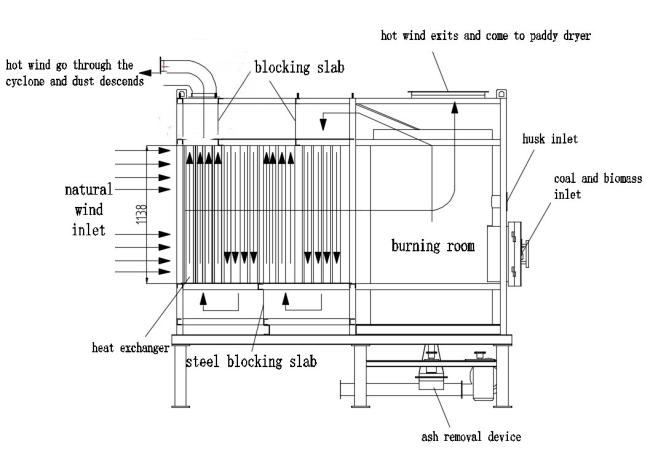

AUTO FEEDING DRAWING(PADDY HUSK ONLY)
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
