Manual Feeding 180kg/Hr 450000 Kcal Rice Husk Furnace
Automatic running rice hull stove 450,000 Kcal paddy husk stove supplier
Advantages of our biomass furnace
1)Indirect heating system with hundreds of heat exchanger ductings

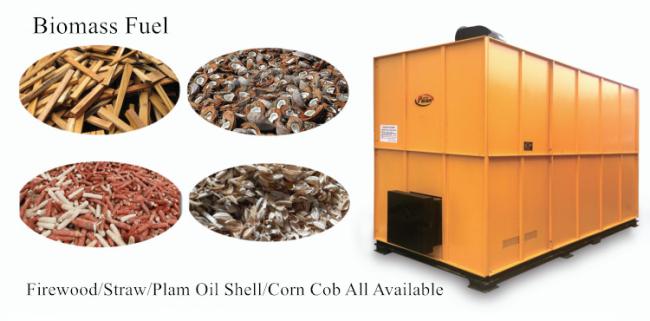

2)Enormous biomass material options,such as paddy husk,corn cob,firewood,coal and others
3)Combustion zone made of firebrick and cement,long durability and stability
4)Heat exchanger and combustion zone are desgined at same level,so could save the space
5)If choose paddy husk or biomass pallet,could working automatically with auto feeder,ash removal and cyclone(need to buy extra)
Technical parameters
| Model | XSL-45 | XSL-60 | XSL-90 |
| Heating Mode | Indirect | ||
| Ignition Mode | Manual | ||
| Feeding Mode | Manual/Automatic | ||
| Heating Temperature | ≤ 100℃ | ||
| Heating Supply | 450,000 Kcalorie | 600,000 Kcalorie | 900,000 Kcalorie |
| Biomass Fuel | Husk/Coal/Wood & Other Biomass Material | ||
| Husk Consumption | 60~180 kg/hr | 80~240 kg/hr | 120~360 kg/hr |
| Input Voltage | 3 Phase 220V/380V,50Hz | ||
| Power (kw) | 4.5 | 5.2 | 6.2 |
| Control Method | Automatic Control | ||
| Dimensions(mm) | 3500*1500*2200 | 3800*1500*2520 | 5000*1800*2520 |
| Safety Devices | Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper | ||
| Supply Dryer Quantities | 5HPX-15 3 sets | 5HPX-15 4sets | 5HPX-15 6 sets |
| 5HPX-20 2 sets | 5HPX-20 3 sets | 5HPX-20 4 sets | |
| 5HPX-30 1 set | 5HPX-30 2 sets | 5HPX-30 3 sets | |
The smallest furnace could supply 450,000 Kcal per hours,so it could drive at least two sets 20 tons batch dryer

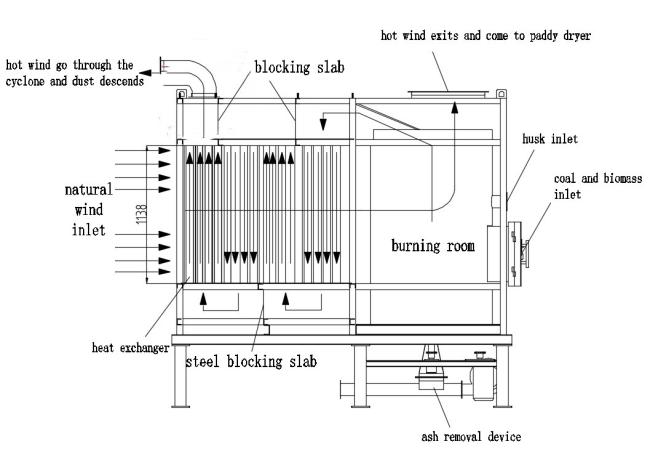

Drawing of the furnace

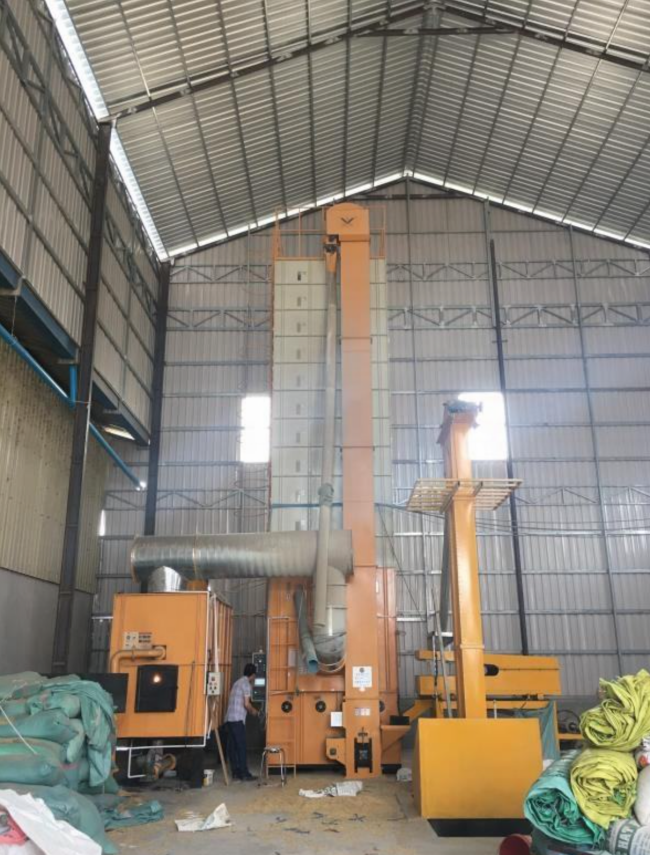

Applications:
