4.5kw Auto Feeder Indirect Heating Rice Husk Furnace

Price Negotiable

MOQ: 1set

Delivery Time: 5-8 WORKING DAYS

Brand: PAM

Product Description

Indirect heating rice hull furnace with auto feeder,ash cleaner and cyclone rice hull burner suppliers

Advantages of our biomass furnace

1)Indirect heating system with hundreds of heat exchanger ductings

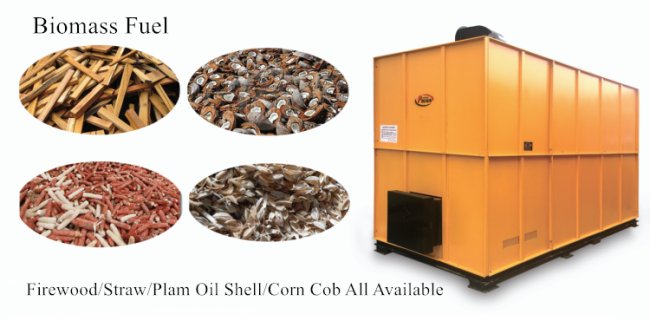

2)Enormous biomass material options,such as paddy husk,corn cob,firewood,coal and others

3)Combustion zone made of firebrick and cement,long durability and stability

4)Heat exchanger and combustion zone are desgined at same level,so could save the space

5)If choose paddy husk or biomass pallet,could working automatically with auto feeder,ash removal and cyclone(need to buy extra)

Technical parameters

Model	XSL-45	XSL-60	XSL-90
Heating Mode	Indirect
Ignition Mode	Manual
Feeding Mode	Manual/Automatic
Heating Temperature	≤ 100℃
Heating Supply	450,000 Kcalorie	600,000 Kcalorie	900,000 Kcalorie
Biomass Fuel	Husk/Coal/Wood & Other Biomass Material
Husk Consumption	60~180 kg/hr	80~240 kg/hr	120~360 kg/hr
Input Voltage	3 Phase 220V/380V,50Hz
Power (kw)	4.5	5.2	6.2
Control Method	Automatic Control
Dimensions(mm)	350015002200	380015002520	500018002520
Safety Devices	Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper
Supply Dryer Quantities	5HPX-15 3 sets	5HPX-15 4sets	5HPX-15 6 sets
	5HPX-20 2 sets	5HPX-20 3 sets	5HPX-20 4 sets
	5HPX-30 1 set	5HPX-30 2 sets	5HPX-30 3 sets

The smallest furnace could supply 300,000 Kcal per hours,so it could drive at least one set 20 tons batch dryer

Equipment contained if choose husk as the fuel

Items	Descriptions
Auto Feeder system	One blower with one husk bin
Ash cleaner	One rotoary stick with one blower
cyclone	60mm diameters cyclone
Control system	PLC type control panel
