Light weight P5 HD Transparent led screens with 5500nits brightness
Price:
Negotiable
MOQ:
1sqm
Delivery Time:
about 15-20 days
Brand:
Bako Vision
Product Description
Light weight P5 HD Transparent led screens with 5500nits brightness
P5 HD Transparent led screens Features:
1. Light-weighted(only about 13kg per sqm);
2. Any irregular shap screen archievable;
3. Easy installation;
4. Up to 5,500 nits brightness;
P5 HD Transparent led screens Parameter:
| BG-5-8 | |
| Physical Pitch | 5x8mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 25000pixels/m² |
| Module Dimensions (WxH)(mm) | 480x320 |
| Panel Dimensions (WxH)(mm) | 960x640 |
| NO. of Modules Per Panel(WxH) | 2x2 |
| Physical Resolution of Module(WxH) | 96x40 |
| Physical Resolution of Panel(WxH) | 192x80 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 203W/m² |
| Max. Power Consumption | 670W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | >5500 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | 1/6 Scan |

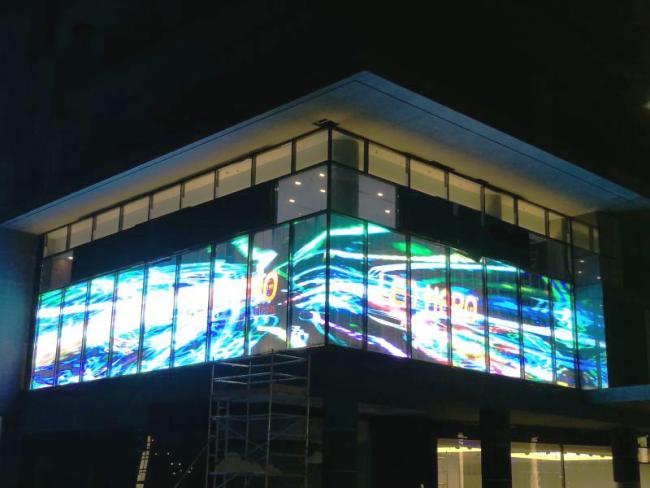

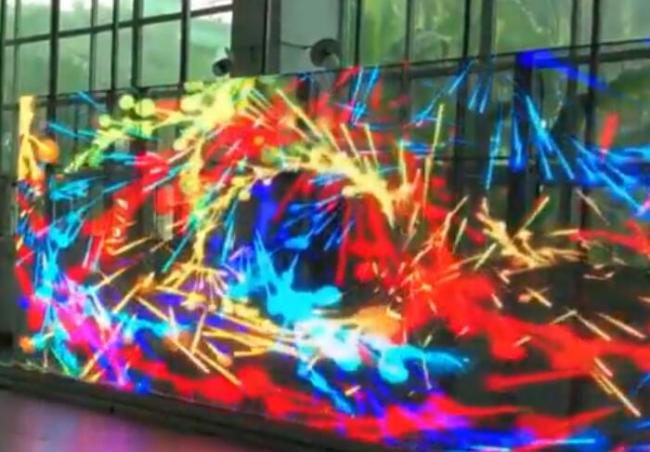

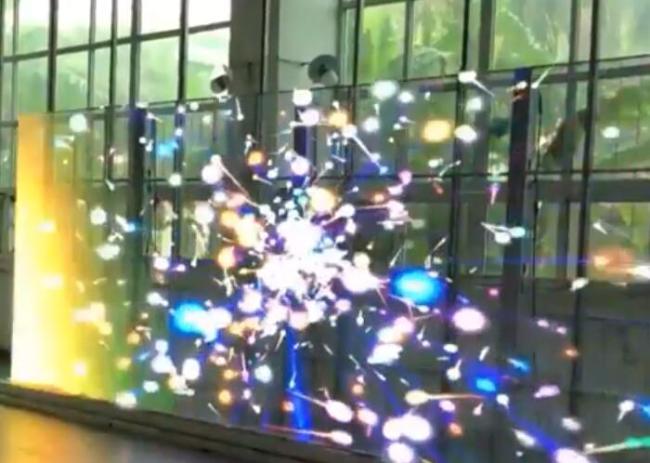

Cases:
