Building Material C Section Roll Forming Machine , Purlin Cold Roll Former
Building Material C Section Roll Forming Machine, Purlin Cold Roll Forming Machine
|
1. Main features of C120-200 purlin roll forming machine The advantages of C purlin machine are as follows: 1.Freestanding structure, Stable and durable 2.With saw cutting device for different thickness material. 3.Easy operation, low maintenance cost |
|
2.Detailed Images of C purlin roll forming machine Machine Parts 1) C purlin machine feeding guide and leveling device
2) C purlin machine rollers Brand: BMS Original: China Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment. with black treatment or Hard-Chrome Coating for options. With feeding material guide, body frame made from 350# H type steel by welding |
|
|

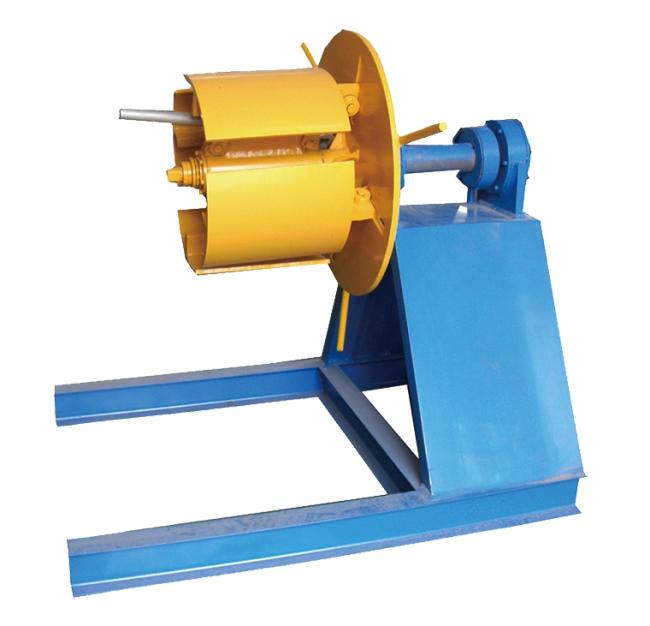

C purlin machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
Other details of C purlin roll forming machine
Suitable for material with thickness 0.8-2.0mm
Shafts manufactured from 45#, Main shaft diameter=φ75/95mm, precision machined
Motor driving, Gear chain transmission, 14 rollers to form
Main motor=11KW, Frequency speed control. Forming speed of approx.18m/min
PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
