Industrial Steel Glazed Roof Tile Roll Forming Machine 7800*1500*1600mm
Yx35-925 Glazed Tile Roll Forming Machine (Bamboo style)
|
1. Main features of Glazed Tile roll forming machine The advantages of Glazed Tile machine are as follows: 1. The machine produced tile with low cost, lightweight but high strength, short building period, and re-cycle use 2. Save material, no waste. 3. Easy operation, low maintenance cost 4. With Taiwan Quality, China Price. |
|
2.Detailed Images of YX35-925 Glazed Tile forming machine Machine Parts 1) YX35-925 Glazed Tile roll forming machine pre-cutter Brand: BMS Original: China With feeding material guide. 2) YX35-925 Glazed Tile roll forming machine rollers Brand: BMS Original: China Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment. with Hard-Chrome Coating for long working life Body frame made from 350# H type steel by welding 3) YX35-925 Glazed Tile roll forming machine post cutter Brand: BMS Original: China Made by high-quality mould steel Cr12 with heat treatment Cutter frame made from high quality 20mm steel plate by welding
|

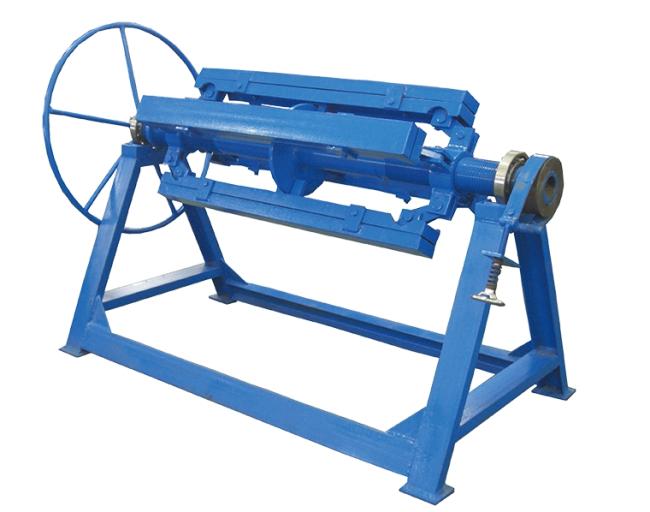

5) YX35-925 Glazed Tile roll forming machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
6) YX35-925 Glazed Tile roll forming machine exit rack
Brand: BMS Original: China
Un-powered, one unit
Other detailes of YX35-925 Glazed Tile roll forming machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#, shaft diameter=φ90/75mm, precision machined
Motor driving, Gear chain transmission, 20 steps to form.
Main motor=15KW, Frequency speed control. Forming speed of approx.12-15m/min
PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Schneider Electric/Taiwan DELTA/SHILIN, Encoder brand: Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
