Modern Metal Aluminum Steel Roll Forming Machine 380 Volt 50Hz 3 Phases
Modern Metal Aluminum 380V 50Hz 3phases Floor Deck Roll Forming Machine
Metal Aluminum Floor Deck Roll Forming Machine's Advantages
High precision: Rollers manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust);
Easy to operate: Operated with Schneider control systems, control the quantity and cutting length automatically;
High Efficiency: Able to produce 24 hours without downtime;
Quality after-sales service: Engineers available to service machinery overseas, Online support, Field maintenance, and repair service, Field installation, commissioning and training, etc.
Main of technical parameters
| Item | Parameters |
| Forming station | 18-32step |
| Material | Galvanized or Aluminum |
| Yield Strength | 235Mpa or 345Mpa |
| Coil width | 1219mm |
| Weight | About 12tons |
| Main machine size | About (10-18)m*1.8m*1.5m(Length*width*height) |
| Electric power | 11kw-30kw |
| Roll forming speed | 10-16m/min |
| Cutting tool material | Cr12, Heat treatment |
| Control system | Schneider brand PLC control system |
| Transmission | The gear motor is driven |

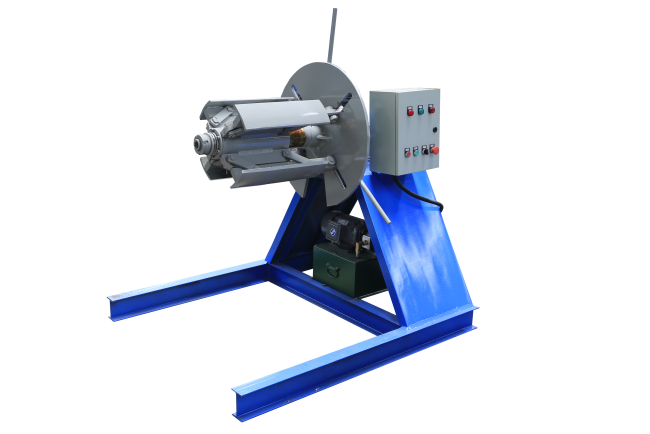

Hydraulic Decoiler
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: Max. 5Ton
The hydraulic decoiler is a piece of special equipment for the unwinding of the pressing machine. The movement shaft passes through the sector plates with the inclined dovetail grooves on the three or four end faces. Each sector plate prevents the shaft from passing through a radial slide at the tail end. Tilting, but can achieve radial expansion and contraction.

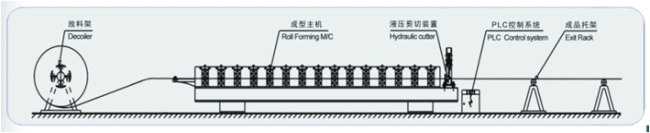

Production process sketch for reference
Decoiler—Rollforming—Hydraulic Cutting—PLC Control System—Exit Rack
