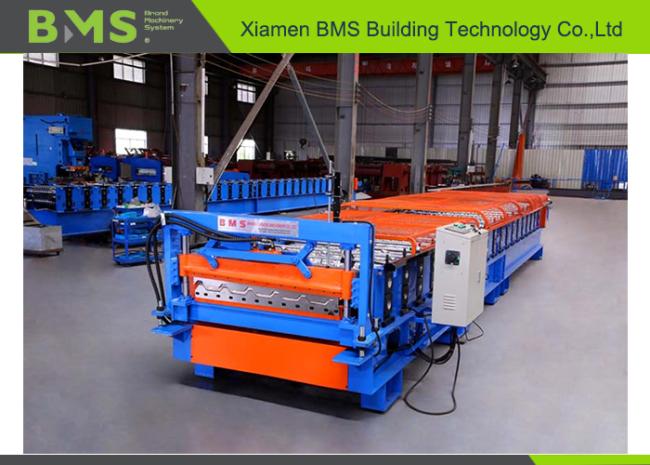

29-190-760MM Kirby Style Roof Panel Roll Forming Machine With CE / SGS Certificate

1. Main features of YX29-190-760  roofing panel roll forming machine

The advantages of roof panel machine are as follows:

1.Low cost, lightweight but high strength, short building period, and re-cycle use

2. Save material, no waste.

3.Easy operation, low maintenance cost

4.Able to deal with stainless material

2.Detailed Images of YX29-190-760 roofing panel roll forming machine

Machine Parts

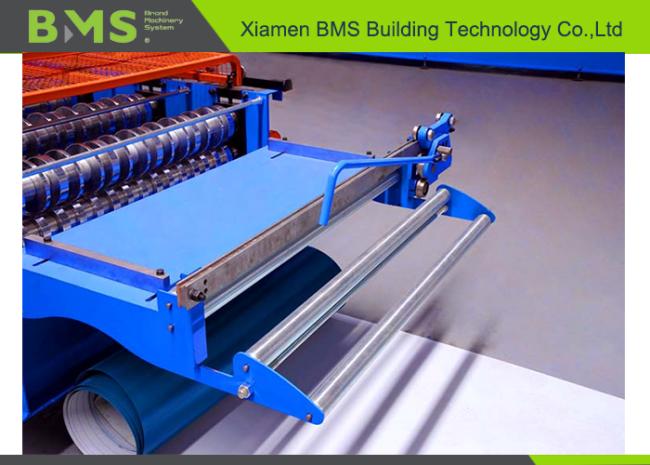

1) YX29-190-760 roofing panel roll forming machine pre-cutter

Brand: BMS Original: China

With feeding material guide, avoid wasting material

2) YX29-190-760 roofing panel roll forming machine rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

Body frame made from 350# H type steel by welding

3) YX29-190-760 roofing panel roll forming machine post cutter

Made by high-quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

hydraulic motor:4KW, Hydraulic pressure range: 0-16Mpa

4) YX29-190-760 roofing panel roll forming machine protection cover

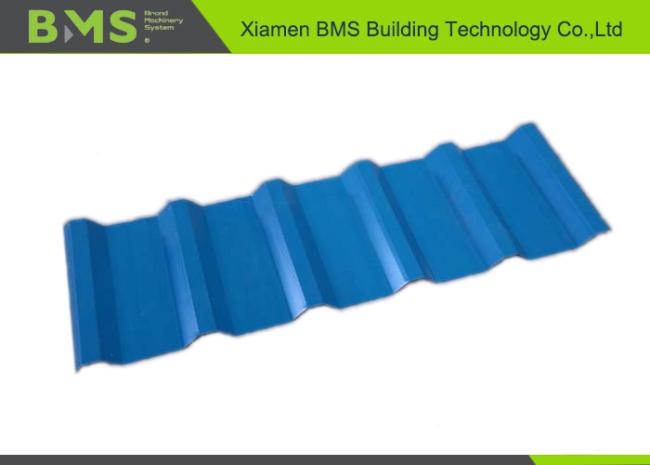

5)YX29-190-760 roofing panel roll forming machine product show

6) YX29-190-760 roofing panel roll forming machine decoiler

ManualDecoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 914mm, coil ID range 508mm±30mm

Capacity: 5-9 Ton

3.With 6 tons hydraulic decoiler for option
