5.5KW C Purlin Steel Keel Metal Stud Making Machine With PLC For Construction
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30days
Brand:
BMS
Product Description

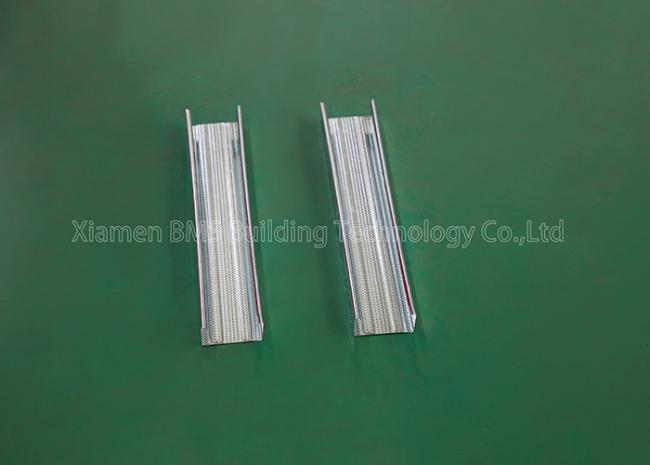

5.5KW C Purlin Steel Keel Metal Stud Making Machine with PLC for Steel Construction
Machine Work Flow

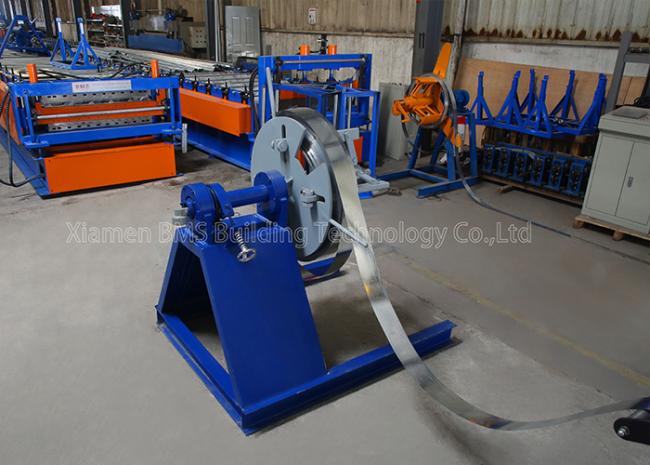

Decoiler→Feeding Device→Rolling Forming System→Hydraulic Cutting Device→Product Support Frame
| No | Device name | Parameter | Remarks |
| 1 | Forming machine frame | Rectangular | Flatness + 0.2mm |
| steel welding | |||

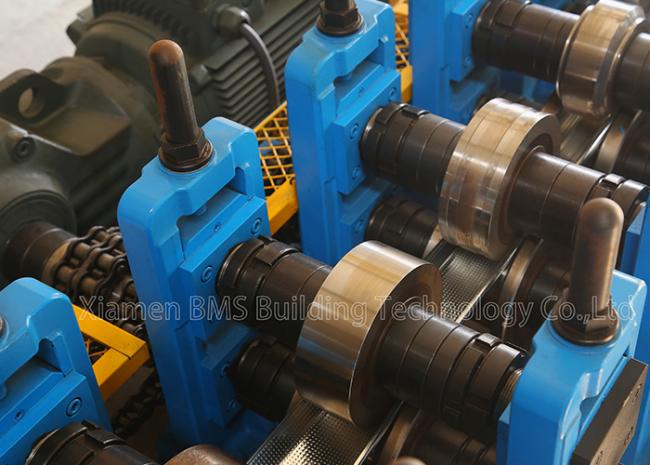

| 2 | Roller | Material: GCr15 | Processing technology: CNC processing heat treatment to HRC58-62, and then fine grinding |
| 3 | Shaft | Material: 40Cr | Processing technology: NC processing after quenching and tempering HRC28-32, and then grinding tolerance -0.02mm -0.05mm |
| 4 | Side | Aluminium alloy anode treatment | |
| 5 | Feeding way | Guide plate + guide wheel group | |
| 6 | Guiding | Five rollers (Up to two down three) plus guiding | |
| 7 | Alignment assembly | On the two axes. | |
| 8 | Shear mode | Two blade knife cut after moulding | |
| Blade material: Cr12MoV | |||
Rollers manufactured from 40Cr, Precision-machined, hard Chrome Coated; With Feeding material guide,
Shafts manufactured from 45#, Main Shafts Diameter φ50mm Precision machined
Sidewall: Independent archway structure 80 type
Motor Driving, Gearbox driving,11-step to form
Main Motor=4.5KW+1.5KW(Servo),Frequency speed control
Forming speed of approx.0-35m/min
Press texture on the surface(need to confirm)
