550Mpa Thickness 0.23mm PPGI Roof Forming Machine
Thickness 0 , 14 - 0 , 23mm Stength 550Mpa Thin Roof Forming Machine

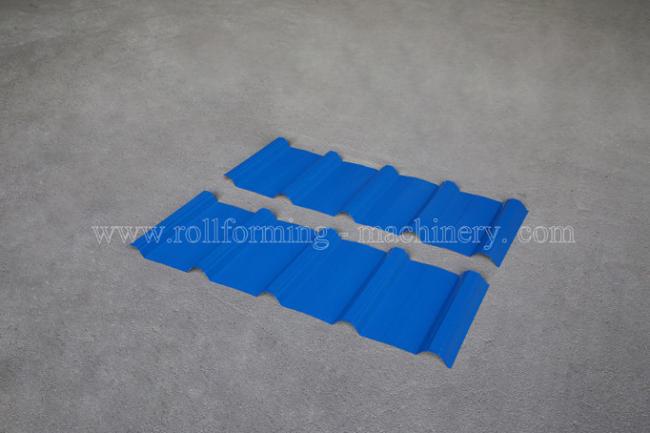

Profile Drawing
Parameter
| Item | Parameters | |
| 1 | Type | YX25-187-750 |
| 2 | Thickness | 0.14-0.23mm |
| 3 | Forming Speed | 20-25 m/min |
| 4 | Yeild Strength | 550Mpa |
| 5 | Servo Motor Power | 7.5 KW |
| 6 | Hydraulic Power | 4 KW |
| 7 | Roller | 45# steel |
| 8 | Weight | about 8T |
Material
Effective Width:750mm
Feeding Width:about 914mm
Material Thickness:0.14-0.23mm
The profile size tolerance:±0.5mm
Work follow
Decoiler→Manual Pre-cutter→Guide Feeding→Rolling Forming System →Hydraulic Post Cutter→Exit Rack
Decoiler
Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 1000mm, coil ID range 508mm±30mm,Max capacity: 5T
Main Machine

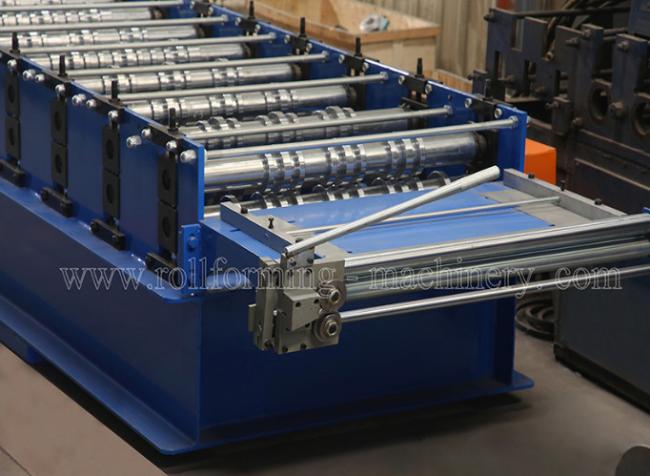

With manual pre-cutter for easy operation and save material:
With feeding material guide,body frame made from H450 type steel by welding.Side wall thickness:Q235 t18mm

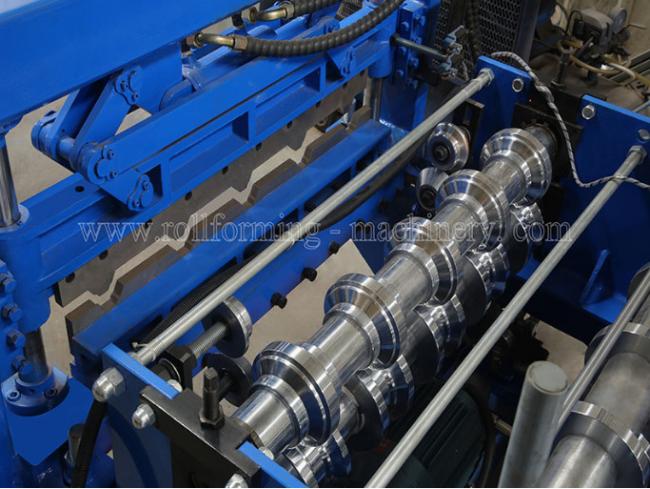

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with thickness0.04mm,surface with mirror treatment(for longer life and anti-rust).
Main shaft diameter=φ80/95mm round steel, precision machined Motor driving, Gear chain transmission, 20 steps to form. Main motor=7.5KW, Frequency speed control.

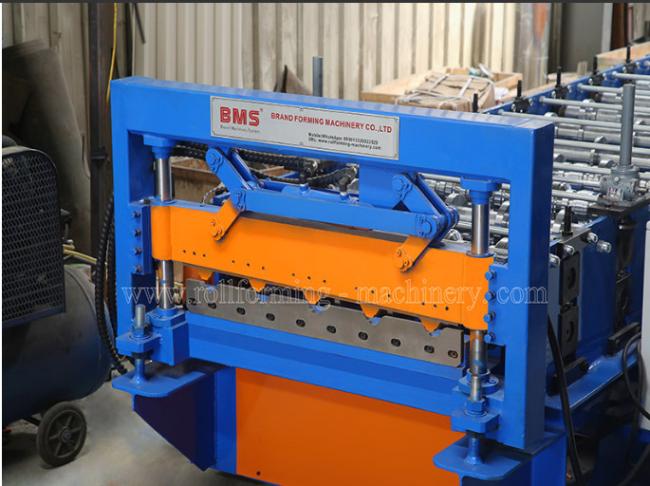

Post to cut,stop to cutting,Two pieces type of cutting blade design,no blanking.Cutting tool material: Cr12MoV(=SKD11,with at least one million times of cutting lives)Heat treatment to HRC 58-62 degree,Hydraulic motor: 3KW .The cutting power is provided by the main engine hydraulic station.

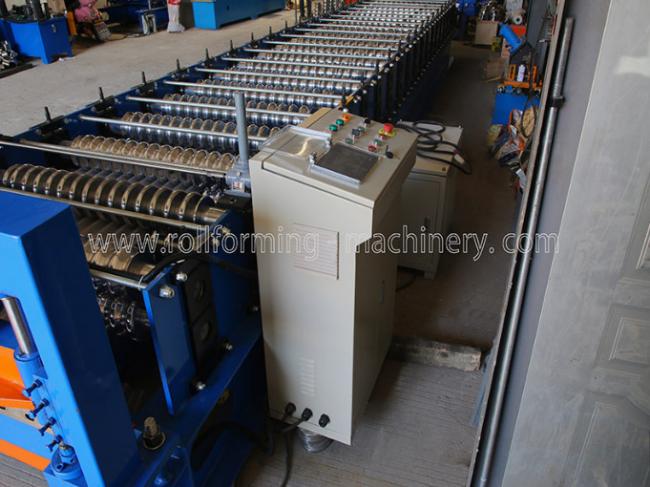

PLC Control System
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
