H350 Housing Thickness 1.5mm Roof Panel Forming Machine
Thickness 0 , 8 - 1 , 5mm Housing Use H350 Roof Panel Roll Forming Machine
Profile Drawing
Parameter
| Item | Parameters | |
| 1 | Type | YX25-211-844 |
| 2 | Thickness | 0.8-1.5mm |
| 3 | Forming Speed | 18-20m/min |
| 4 | Forming station | 20 steps |
| 5 | Housing | H350 beam |
| 6 | Cutter material | Cr12 |
| 7 | Roller | 45# steel |
| 8 | Weight | about 8T |
Material
The advantages of roof panel machine are as follows
1.Low cost, light weight but high strength, short building period, and re- cycle use
2.Save material no waste.
3.Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Decoiler
Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 1200mm, coil ID range 508mm±30mm,Max capacity: 5-9T
With 6 tons hydraulic decoiler for option
Main Machine

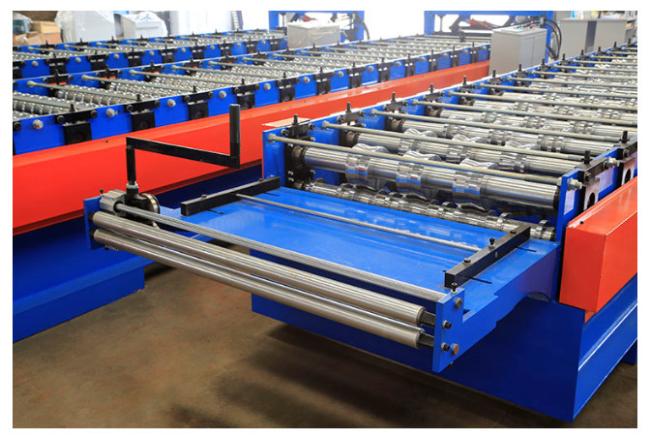

With feeding material guide:
Suitable for material wit thickness 0.8-1.5mm.Body frame made from H350 type steel by welding.

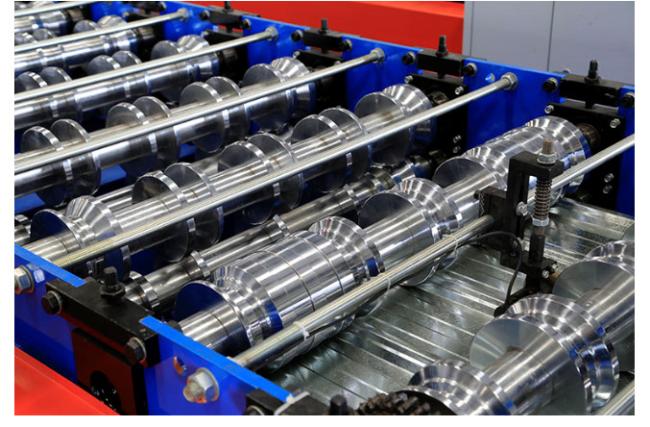

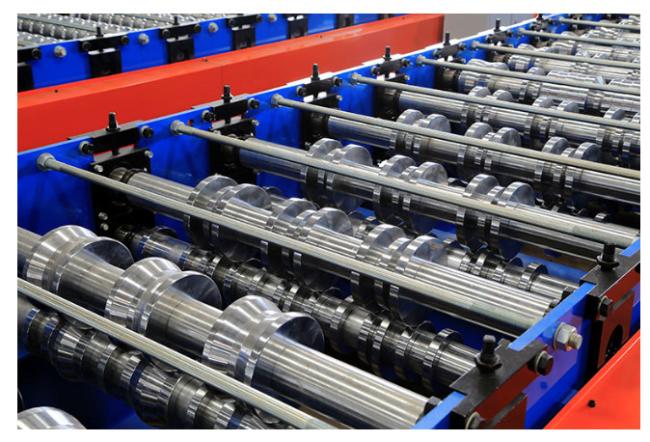

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. withblack treatment or Hard-Chrome Coating for options
Main shaft diameter=φ90mm round steel, precision machined Motor driving, Gear chain transmission, 20 steps to form. Main motor=15KW, Frequency speed control.

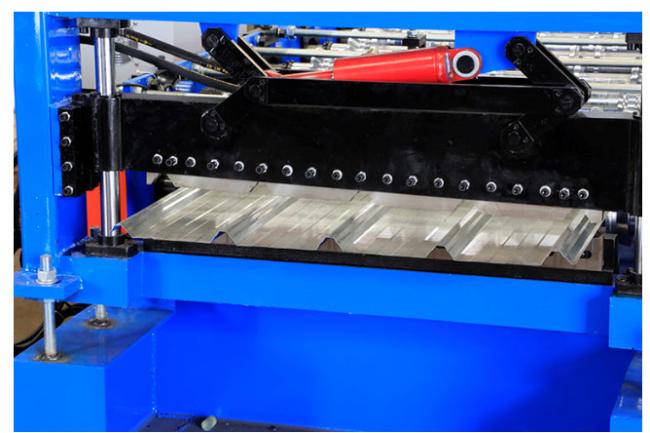

Made by high quality mold steel Cr12 with Heat treatment to HRC 58-62 degree,Hydraulic motor: 5.5KW .Hydraulic pressure range:0-16Mpa
Cutter frame made from high quality 20mm steel plate by welding.

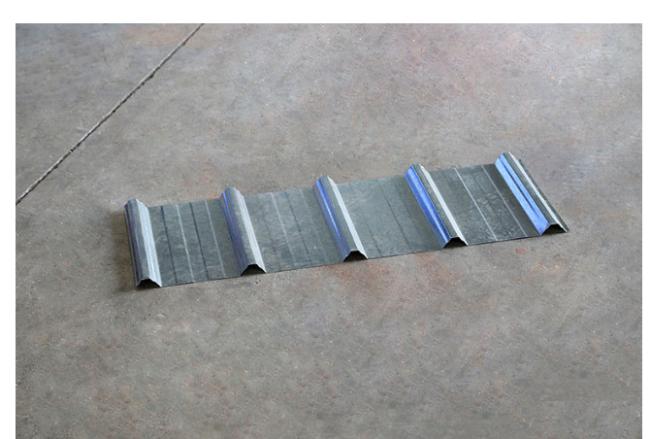

Product show
PLC Control System
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
