PLC Control 245Mpa 0.3mm Roof Panel Roll Forming Machine
0 , 3 - 0 , 8mm Yield Strength Is 245 - 550Mpa Roof Panel Roll Forming Machine
Parameter
| Item | Parameters | |
| 1 | Type | YX25-205-1025 |
| 2 | Thickness | 0.3-0.8mm |
| 3 | Forming Speed | 18-20 m/min |
| 4 | Forming station | 20 steps |
| 5 | Main Motor Power | 7.5 KW |
| 6 | Hydraulic Power | 2.2 KW |
| 7 | Shaft | φ75mm |
| 8 | Weight | about 8T |
Profile drawing
Main features
The addvantages of rool panel machine are as follows:
1.Able to produce two different profiles.
2.Save space,more convenient.
3.Easy operation,low mainenance cost.
4.Stable and durable.

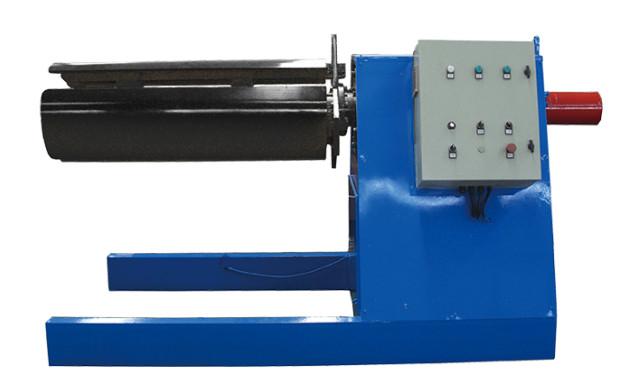

Decoiler
Manual decoiler: one set.Manual control steel coil inner bore shrinkage and stop
Max feeding width: 1250mm, coil ID range 470mm+30mm,Max capacity: 8T

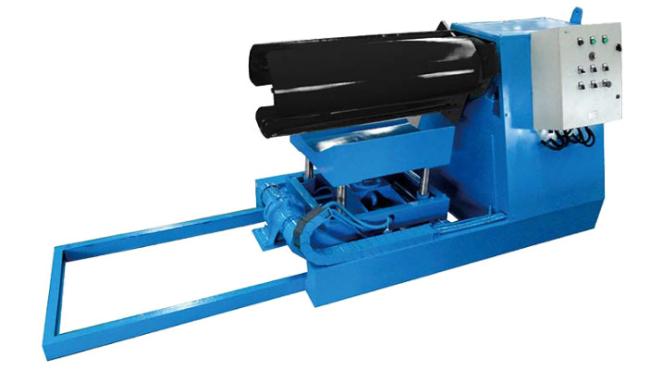

With 6 ton hydraulic decoiler for option
Pre-cutter device

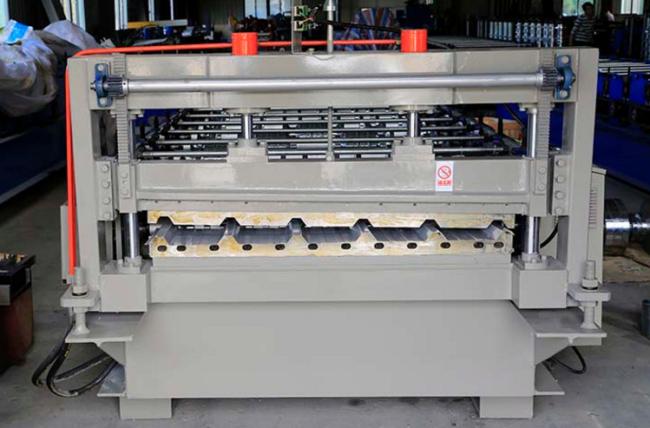

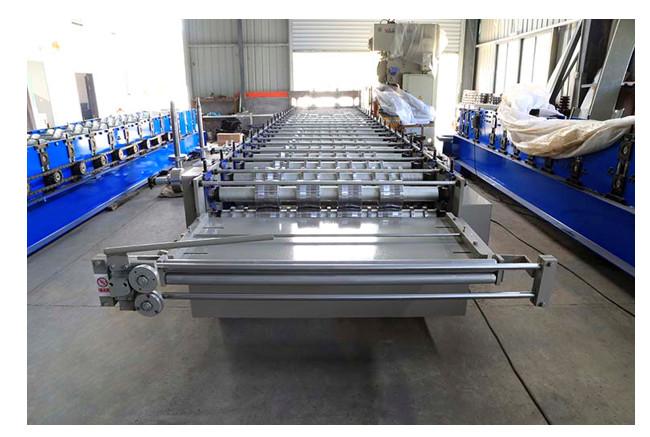

Main Machine

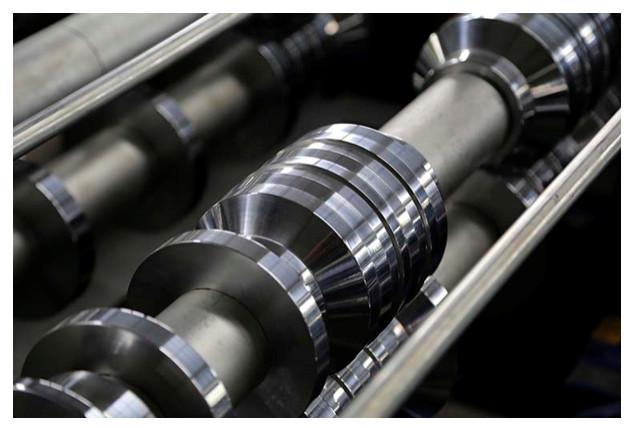

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,Hard Chrome Coated. with black treatment or Hard-Chrome Coating for options Body frame made from 400# H type steel by welding.Main shaft diameter=φ75mm, precision machined Motor driving, Gear chain transmission, 20 steps to form. Main motor=7.5KW, Frequency speed control.
Post cutter made by high quality mold steel Cr12,Heat treatment to HRC 58-62 degree,Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa Cutter frame made from high quality 20mm steel pl.

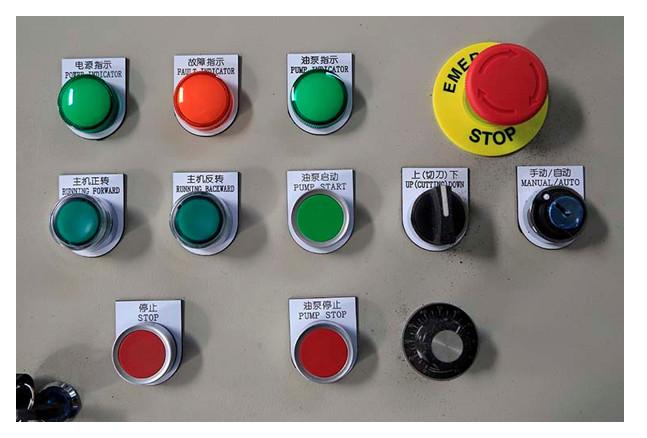

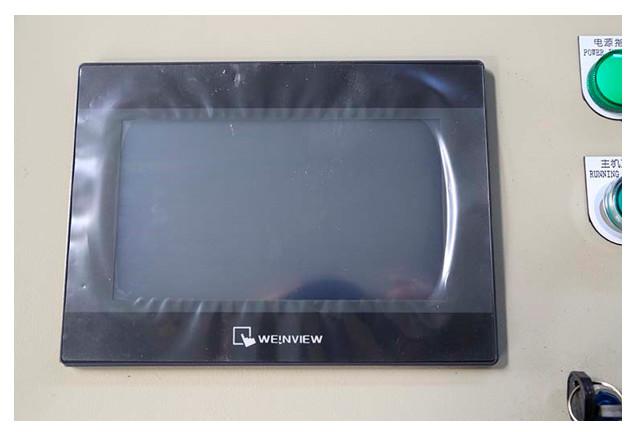

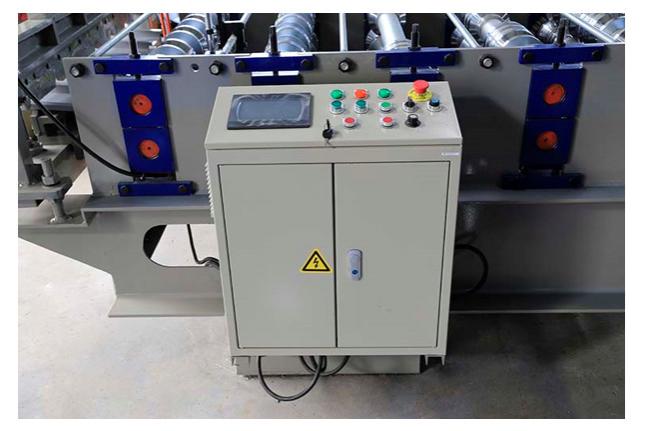

PLC Control System
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
