10m/min Thickness 4mm C Purlin Roll Forming Machine
Thickness 4mm Shaft Diameter 100mm C Purlin Roll Forming Machine
Parameter
| Item | Parameters | |
| 1 | Body frame | H400 |
| 2 | Thickness | 3-4mm |
| 3 | Forming Speed | 10m/min |
| 4 | Shaft | φ100mm |
| 5 | Main motor | 30KW |
| 6 | Hydraulic Power | 7.5 KW |
| 7 | Roller | GCr15 |
| 8 | Weight | about 12T |
Main features
The advantages of C purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side

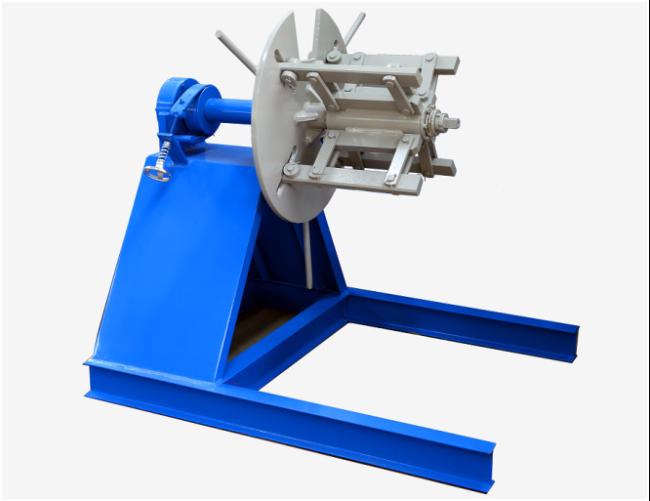

Decoiler
Manually decoiler: one set.Un-powered,manually control steel coil inner bore shrinkage and stop
Max feeding width: 500mm, coil ID range 470±30mm,Max capacity:3Ton

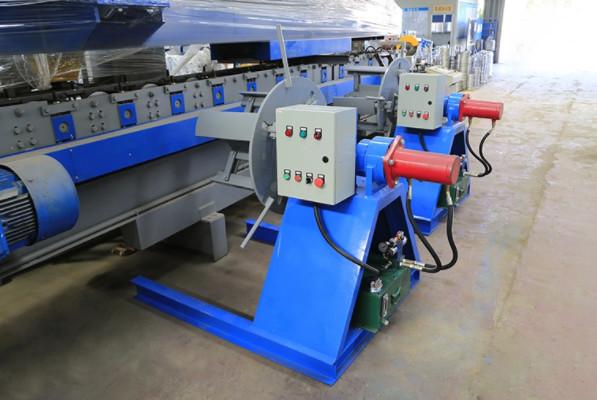

With 3 tons hydraulic decoiler for option

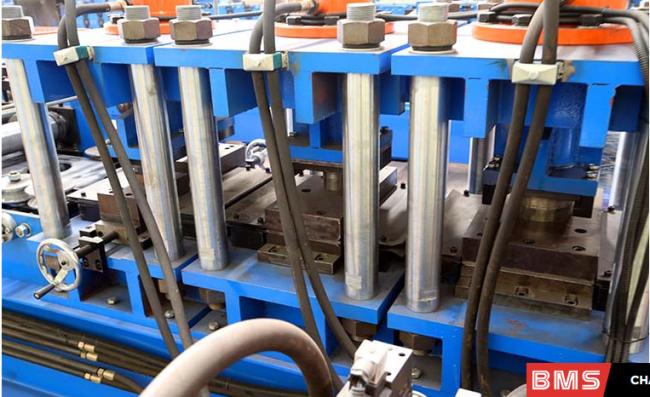

Main Machine
With 3 cylinder(one cylinder for single hole and 2 cylinders for dual-holes)

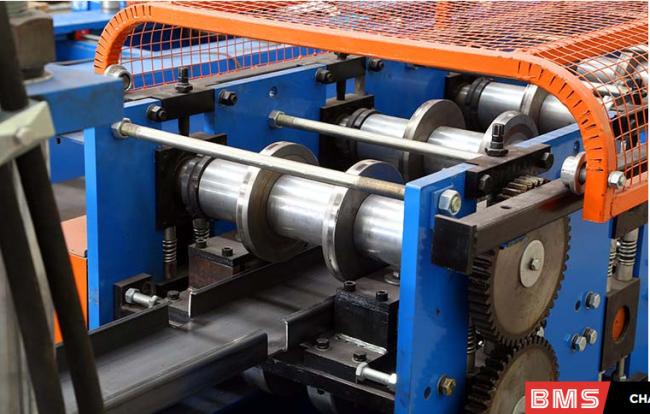

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

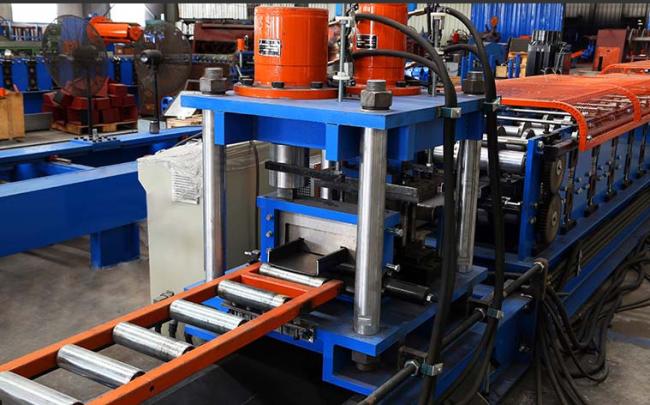

No need to change cutter for different size,made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

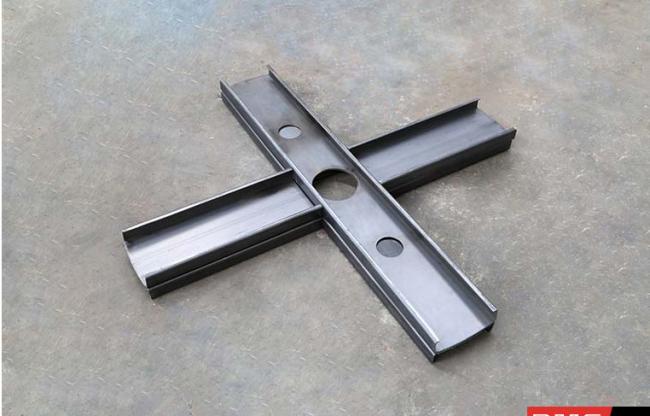

Procuct show
Exit Rack
PLC Control System
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
