Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
Thickness 0 . 8 - 2 . 0mm Cutter Cr12 C Purlin Forming Machine
Parameter
| Item | Parameters | |
| 1 | Type | C120-200 |
| 2 | Thickness | 0.8-2.0mm |
| 3 | Forming Speed | 18m/min |
| 4 | Forming station | 14 steps |
| 5 | Main motor | 11KW |
| 6 | Color | Green+orange |
| 7 | Shaft diameters | 45# steel |
| 8 | Color | Green+orange |
Main features
The advantages of single size C purlin roll forming machine are as follows:
1.Stable
2.Beautiful appearance
3.Easy operation, low maintenance cost
Decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option
Main Machine

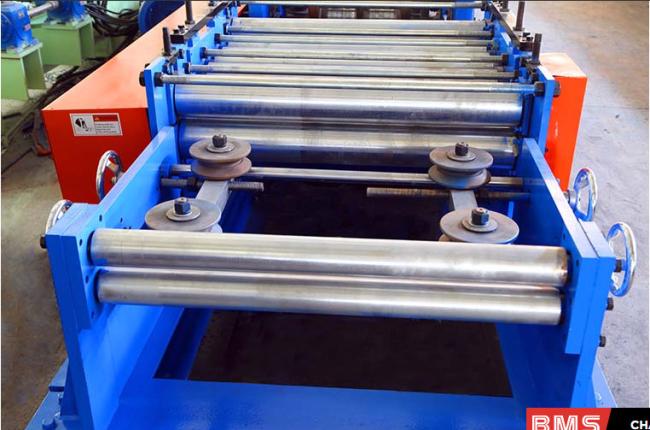

C purlin machine feeding guide and leveling device
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 350# H type steel by welding
Suitable for material with thickness 0.8-2.0 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

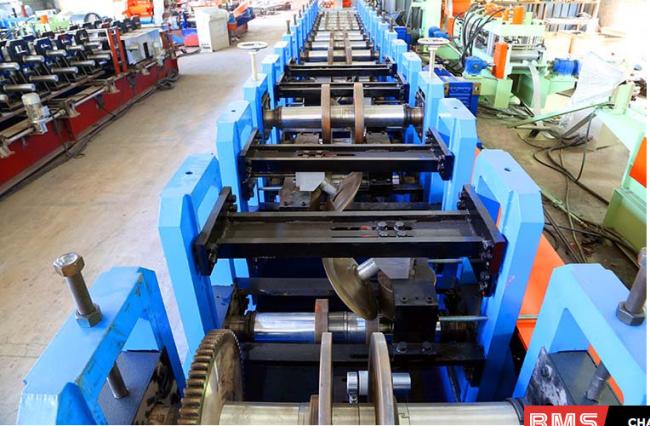

Motor driving,Gear chain transmission, 14 rollers to form
Main motor=11KW , Frequency speed control. Forming speed approx.18m/min

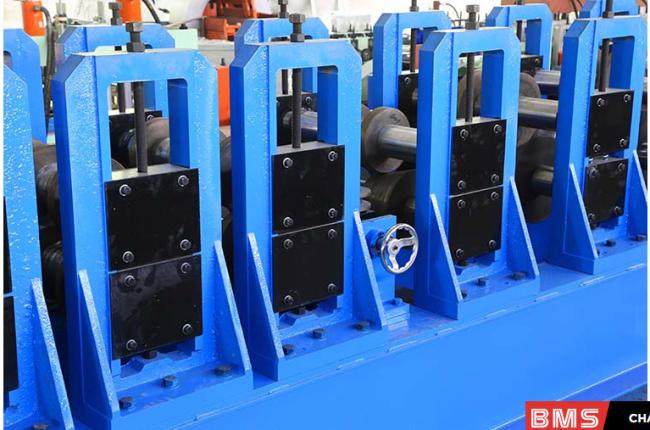

C Purlin machine free standing structure

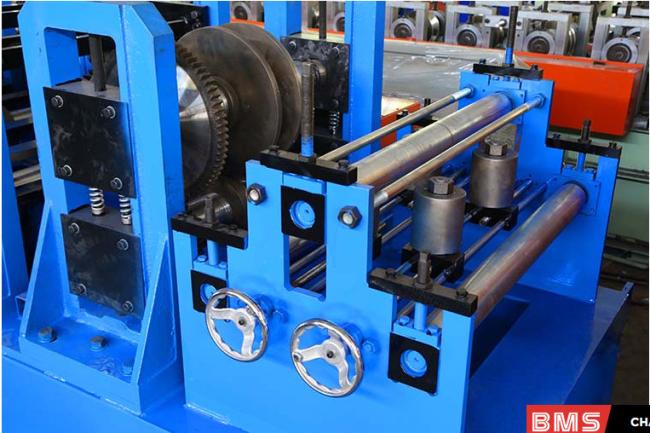

C purlin machine straightening device

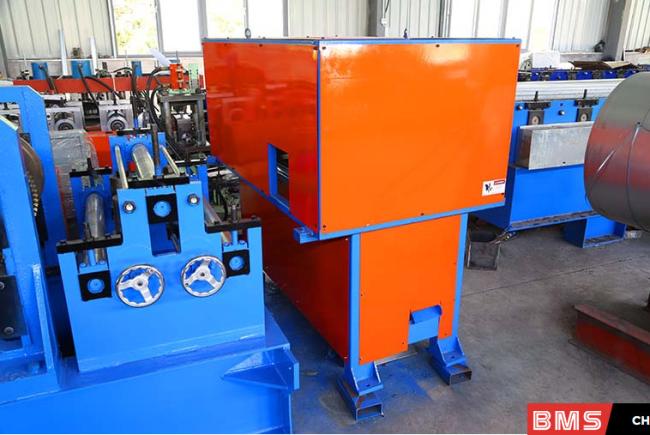

C purlin machine sawing cutting
Exit Rack
PLC Control System
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
