PLC Control 20m/min H450 Housing Floor Deck Forming Machine
2 Years Warranty Housing H450 Floor Deck Roll Forming Machine

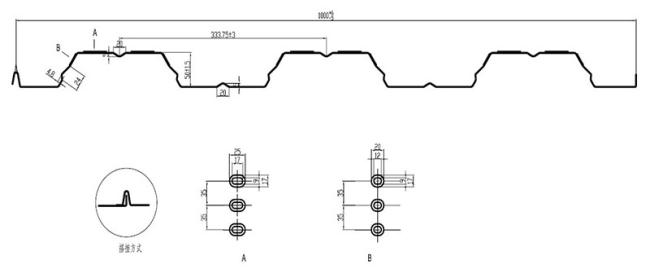

Profile Drawing
Parameter
| Item | Parameters | |
| 1 | Type | YX50-333-1000 |
| 2 | Thickness | 0.8-1.5mm |
| 3 | Forming Speed | 20m/min |
| 4 | Forming station | 24 steps |
| 5 | Main motor | 15KW |
| 6 | Hydraulic Power | 5.5KW |
| 7 | Roller | GCr15 |
| 8 | Housing | H450 |
Main features

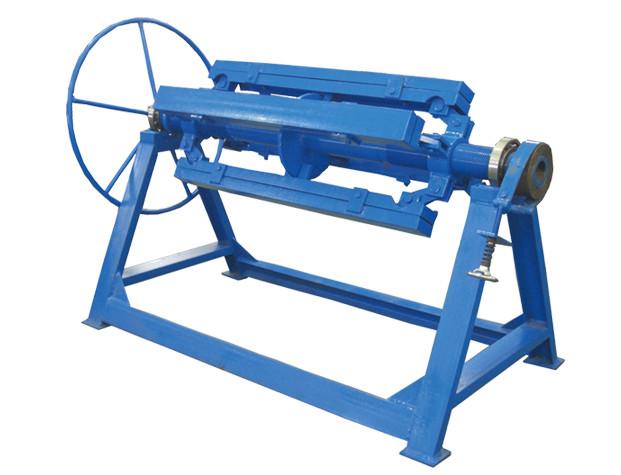

1)Manual Decoiler: one set
Un-Powered,Manually Control Steel Coil lnner Bore Shrinkage Andstop
Max Feeding Width:1200mm,Coil ID Range:508mm±30mmCapacity:Max.5 Ton

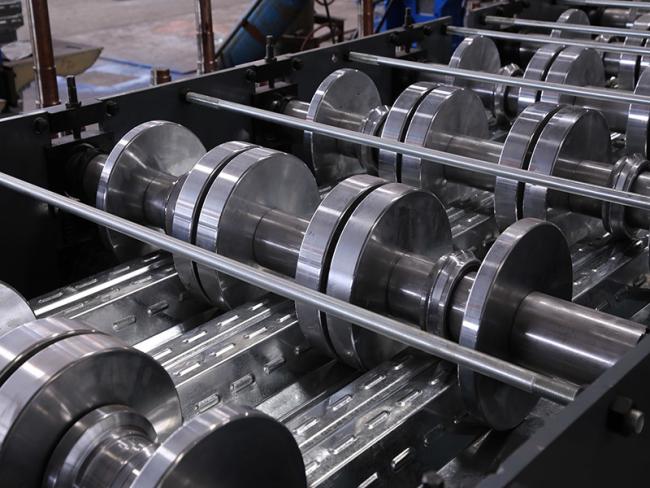

2)Main Machine
Body Frame Made From H450 Type Steel By WeldingSide Wall Thickness:Q235 t18mm
Rollers Manufactured From 45# Steel,CNC Lathes,Heat
Treatment,Hard Chrome Coated,with thickness 0.04mm,SurfaceWith Mirror Treatment(For Longer Life And Anti-Rust)
The Material For Embossing Roller:GCr15 Steel(=EN31 Steel),HeatTreatment,HRC 58-62
Shafts Diameter=cp90mm,High Frequency ProcessingGear/Sprocket Driving,About 24-step To Form
Main Motor(Polaroid brand)=15KW,Frequency Speed ControlReal Forming Speed:20m/min

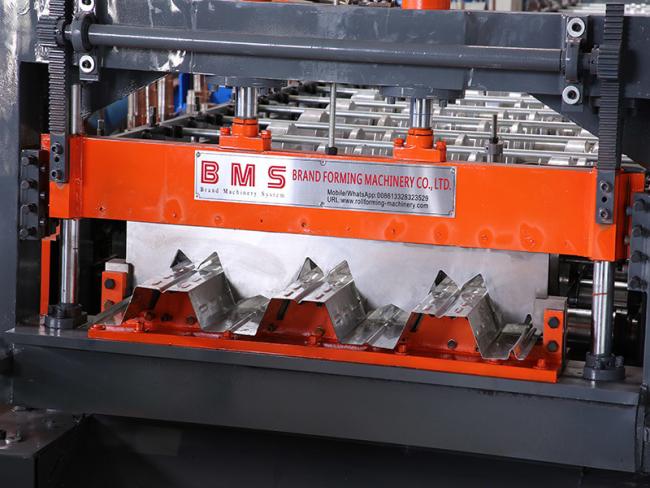

4) Post Hydraulic cutting Device
post To Cut, Stop To Cutting,Two Pieces Type Of cutting BladeDesign,No Blanking
Hydraulic Motor:5.5KW;Cutting Pressure:O-16Mpa
cutting Tool Material:Cr12MoV(= SKD11 With At Least One MillionTimes Of Cutting Life),Heat Treatment To HRC58-62 Degree
The Cutting Power ls Provided By The Main Engine Hydraulic Station

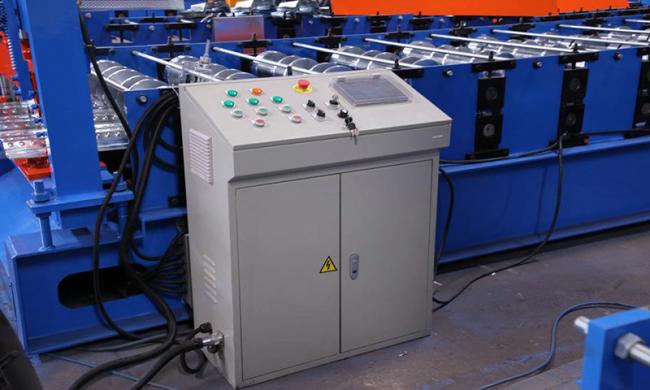

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On TheTouch Screen
lt Can Finish The Production Automatically
Combined With: PLC, Inverter,Touch Screen,Encoder, etc

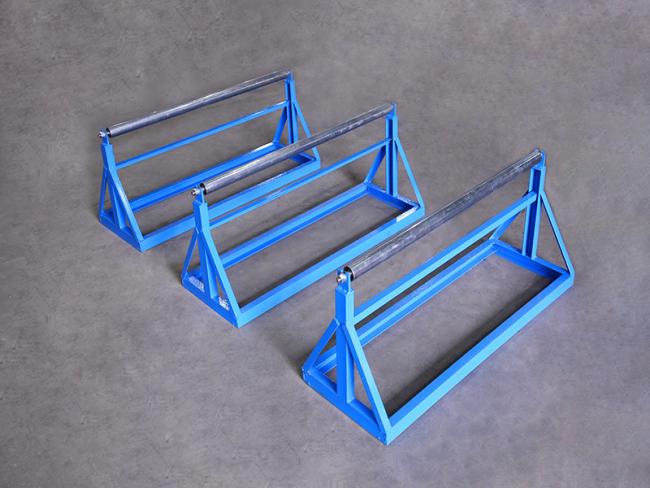

Exit Rack
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
