Automatic 18 Steps Metal Roof Roll Forming Machine For YX35-200-1000

Price Negotiable

Price: Negotiate

MOQ: 1 Set

Delivery Time: 45days

Brand: BMS

Product Description

Automatic 18 Steps Roof Panel Roll Forming Machine For YX35-200-1000

1. Product Details

Material&product	Feeding width	1250mm
	Effective width	1000mm
	Raw material	PPGI
	Thickness	0.3-0.8mm
	Yield strength	245-550 MPA
Main Forming machine	Forming steps	18 steps
	Shaft diameter	75mm
	Machine frame	steel plate welded
	roller material	45#steel
	shaft material	45# steel with quenching and tempering
	Work speed	18-20m/min
	Transport	By chains
	Power of main machine	7.5kw
	Voltage	380V-50HZ-3P(as required)
	Machine weight	About 8T
Usage: In order to keep the product shape and precision, adopts welded sheet structure,

2. Profile Drawing

3. .Main features of YX35-200-1000 roof panel machine

The advantages of roof panel machine are as follows:

1.Able to produce two different profiles.

2.Save space,more convenient.

3.Easy operation, low maintenance cost4.Stable and durable

4. Detailed Images of YX35-200-1000 roof panel forming machine

Machine parts

1)YX35-200-1000 roof panel machinerollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment. With black treatment or Hard-Chrome Coating for options.

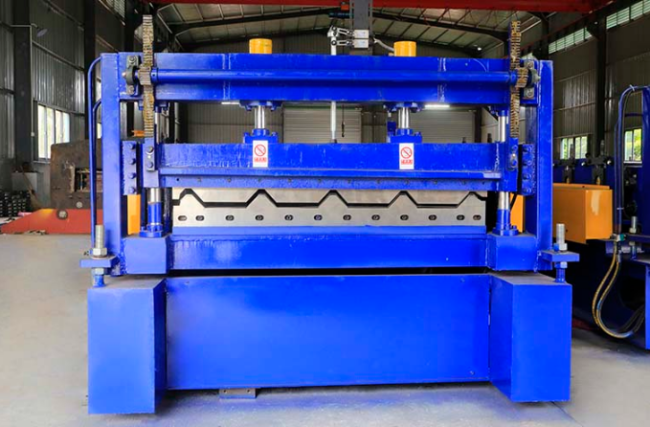

2)YX35-200-1000 roof panel machine post cutter

Made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

Hydraulic motor: 2. 2KW, Hydraulic pressure range: 0-16Mpa

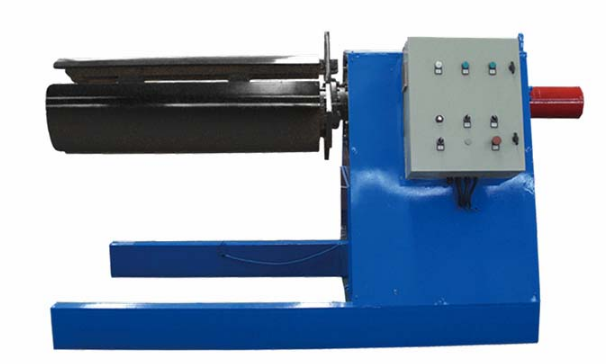

3) YX35-200-1000 roof panel machine decoiler
Un-powered, manually control steel coil inner bore shrinkage and stop
Max feeding width: 1250mm, coil ID range 470mm+30mm
Capacity: Max 8 Ton

With 6 tons hydraulic decoiler for option

5) YX35-200-1000 roof panel machine exit rack

5. PLC Control System

Touch screenbrand: German Schneider Electric/Taiwan WEINVIEW
Inverter brand. Finland VOCAN/Taiwan DELTAALPHA,

Encoder brand Japan Koyo/OMRON
Combined with: PLC. Inverter. Touch Screen. Encoder etc
Cut-to-lengthtolerance≤±2mm
Control Voltage 24V
Users manualin English

6. After-sale service of roof panel machine

1. The warranty of YX35-200-1000 roof panel machine e year after the client receives the machine Within the one year, we will courier the replacement parts to the client free of charge

2. We offer technical support for the entire life of our machin

3. We can send our technicians to install and train the workers in the clients factories with extra cost

7. Terms of trade

1. Minimum order quantity( MoQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/ or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
