0.3 - 0.8mm Thickness Chain Drive Roofing Panel Roll Forming Machine
0.3 - 0.8 Thickness Chain Drive Roofing Panel Roll Forming Machine With Taiwan Quality
Technical Parameters:
Material specification |
galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC) |
Thickness |
0.3 mm to 0.8mm. |
Main motor power |
7.5 kw. |
Hydraulic station power |
2.2 kw. |
Feeding width |
1200mm. |
Yield stress |
245Mpa ~ 550Mpa |
Roll forming Speed |
18-20 m/minute. |
Cutting Tolerance |
+/-2mm |
Manual Uncoiler |
Max. Capacity: 8000kgs. |
Coil inner diameter |
470mm±30mm |
Voltage |
AC 3-380V/415V/440V |
Forming station |
20 stations |
Type of cutting |
Roll-formed and length-set profile cutting. |
3. Material of Main Equipment:
Roller Material |
high quality 45# steel , CNC lathes, Heat Treatment. with black treatment or Hard-Chrome Coating for options. |
Active Shaft Material |
45#,Main shaft diameter=φ75mm,precision machined. |
Electric Elements |
PLC Control System Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW, Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand:Japan Koyo/OMRON |
Cutter Blades |
Cr12MoV steel with quenched treatment, hardness HRC58~62, |
Profile Drawing
Main features of YX10-900 roof panel machine
The advantages of roof panel machine are as follows:
1.Two ribs on the profile
2.Save space,more convenient.
3.Easy operation, low maintenance cost
4.Stable and durable
Detailed Images of YX10-900 roof panel forming machine
Machine Parts

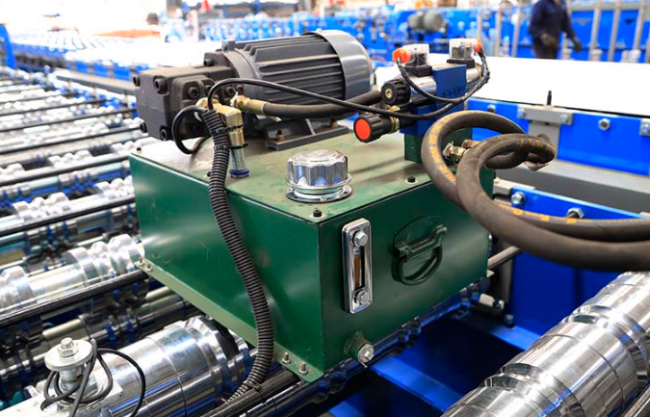

1) YX10-900 roof panel machine hydraulic system
Brand: BMS Original: China
2) YX10-900 roof panel machine rollers
Brand: BMS Original: China
3) YX10-900 roof panel machine post cutter
Brand: BMS Original: China
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic pressure range: 0-16Mpa

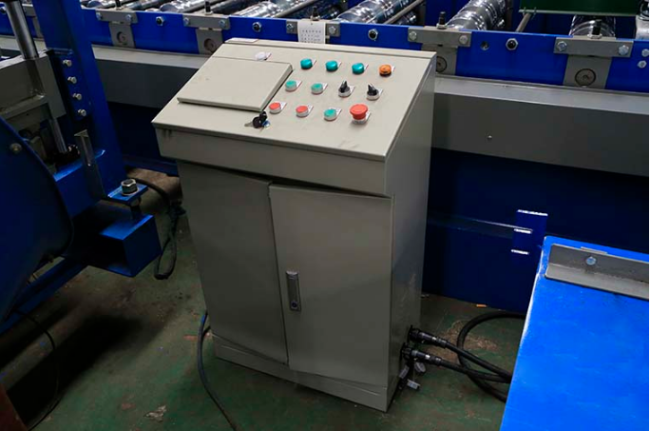

4) YX10-900 roof panel machine control cabinet
Brand: BMS Original: China
Easy to operate
5) YX10-900 roof panel machine decoiler
Brand: BMS Original: China
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 8 Ton
With 6 tons hydraulic decoiler for option
Other detailes of YX10-900 roof panel machine
PLC Control System
Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,
Encoder brand:Japan Koyo/OMRON
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of YX10-900roof panel machine
1. The warranty of YX10-900 roof panel machine is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
