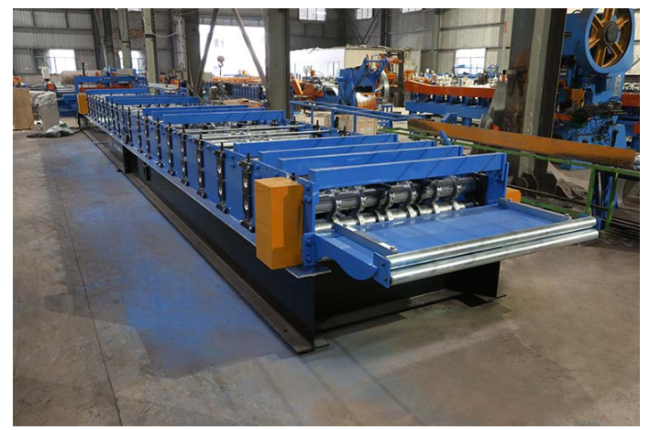

18.5KW Steel Floor Decking Roll Forming Machine 12-15m/min YX51-915
18.5KW Cheap Steel Floor Decking Roll Forming Machine For YX51-915
1.Main features of floor decking roll forming machine
The advantages of floor decking machine are as follows:
1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material, no waste.
3. Easy operation, low maintenance cost
2. Specifications:
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet |
| thickness of coil sheet | 0.8-1.5mm |
| Production capacity | approx.12-15m/min |
| Machine details | |
| roller material | 45# steel, precision machined, hard Chrome Coated |
| shaft material | 45#, precision machined |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 80mm or as your requirement |
| main frame | 400 H steel |
| forming steps | 22 steps |
| Main motor | 18.5 KW |
| controlling system | famous PLC computer control |
| frequency speed control | 380V/50Hz/3Ph or 220V/60Hz/3Ph |
| Terms of trade | |
| Delivery time | 45 workdays |
| Payments | T/T or L/C |
3.Detailed Images of YX51-915 floor decking forming machine
Machine Parts
1)YX51-915 floor decking machine feeding guide
Brand: BMS Original: China

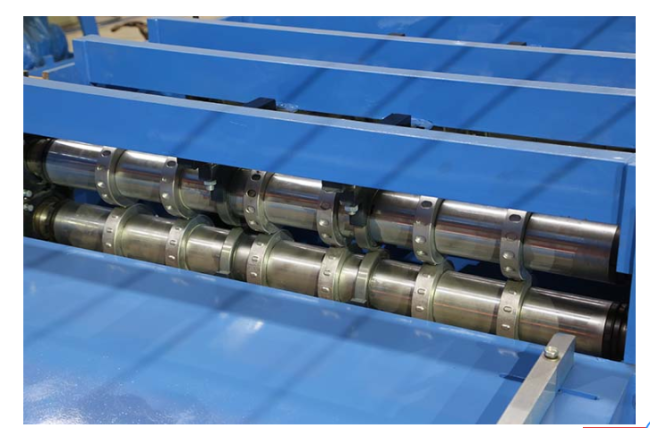

2) YX51-915 floor decking machine embossing

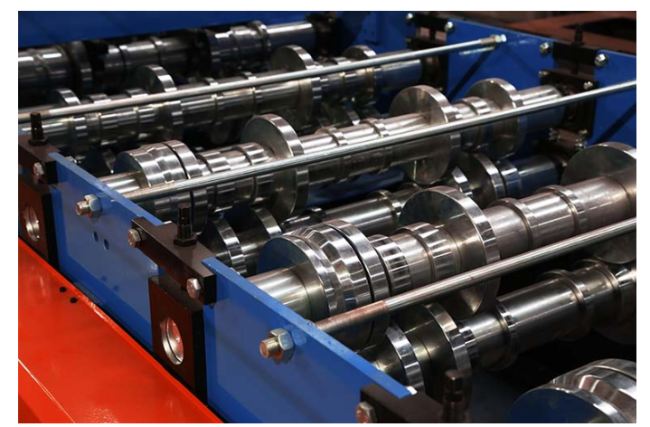

3)YX51-915 floor decking machine rollers
with black treatment or hard-chrome coating for options.
Body framemade from 400# H type steel by welding
4) YX51-915 floor decking machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor: 18.5KW, Hydraulic pressure range: 0-16Mpa

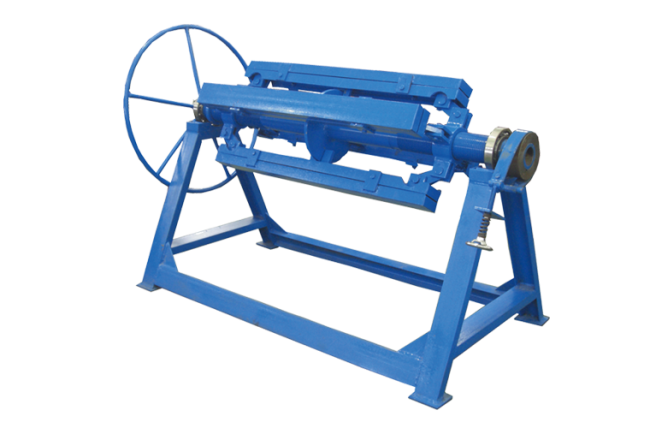

5) YX51-915 floor decking machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width:1200mm,coil ID range508mm±30mm
Capacity: 5-9 ton

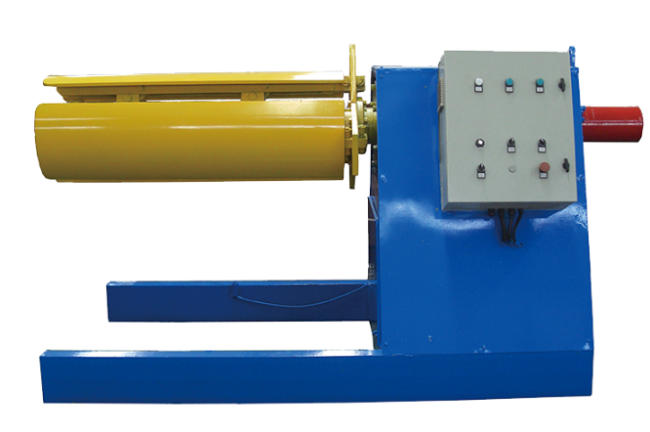

With 6 ton hydraulic decoiler for option
6) YX51-915 floor decking machine exit rack
Un-powered, one unit
4. Other detailes of YX51-915 floor deck roll forming machine
Shafts manufactured from 45#,Main shaft diameter=Φ80mm, precision machined
Motor driving, Gear chain transmission, 22steps to form.
Main motor=18.5KW, Frequency speed control, Forming speed approx.12-15m/min
PLC Control System
touch screen brand: German Schneider electric/ Taiwan Weinview,
Inverter brand: finland vocan/taiwan Delta/Alpha,
Encoder brand: japan Koyo / Omron
combined with: PLC, Inverter,touchscreen, encoder,etc
Cut-to-length tolerance≤±2mm
Control Voltage 24V
User's manualish English
5. After-sale service of roof panel roll forming machine
1. The warranty of roof panel roll forming machine is 24 months after the client receives the machine
Within 24 months, we will courier the replacement parts to the client free of charg
2. We offer technical support for the entire life of our machine
3. We can send our technicians to install and train the workers in the clients factories with extra cost
