YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved
YX36.5 - 780 Corrugated Steel Panel Roll Forming Machine CE Approved

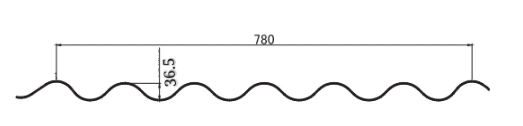

1. Profile
2. Main Technical Specifications
| Name | Corrugated Roof Metal Sheet Roll Forming Making Machine | |
| Raw Material | Material | Aluminium PPGI |
| Width | 914/1000/1200/1220/1250/1260mm | |
| Thickness | 0.4-0.8mm, customized | |
| Power | Power | 380V 3Phase 50Hz, customized |
| Main Motor | 5.5KW, Schneider/Siemens Brand | |
| Cutting Motor | 2.2KW, Schneider/Siemens Brand | |
| Roll Forming Machine | Support Frame | 450H steel |
| Forming Station | 28 rollers, exactly according to profile drawing | |
| Structure | 18mm | |
| Shaft | 45# high grade steel, 80mm, solid, with keyway | |
| Roller | 45# high grade steel with heat treatment, hard chrome plated | |
| Bearing | Standard | |
| Speed | 15-20m/min | |
| Electric Components | Delta / Siemens / Mitsubishi | |
| Cutting Blade | Cr12Mov, quenched 58°-62° | |
| Operation | Touch Screen | |
| Weight | 8T | |
3. Main features of corrugated panel roll forming machine
The advantages of corrugated roof panel forming machine are as follows:
1.Products widely used in modern factory,such as workshop,4S auto shop,is a new popular roof panel.
2.Easy operation, low maintenance cost
3.Forming steps: 28
Machine Parts
1) Corrugated roof panel forming machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
With black treatment or Hard-Chrome Coating for options.
With feeding material guide,Body framemade from 300# H type steel by welding

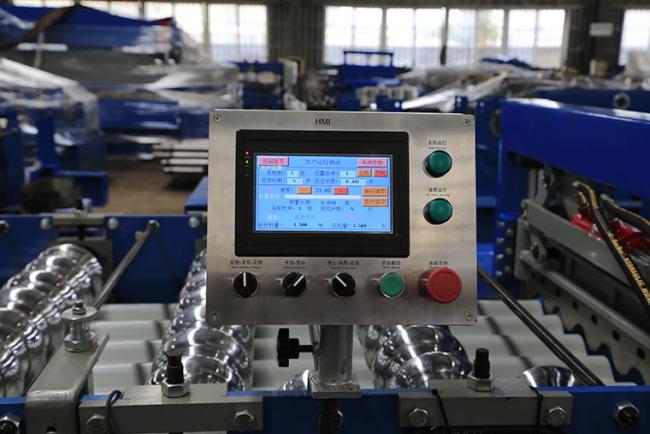

2) Corrugated roof panel machine touch screen
easy to operate.
3) Corrugated roof panel machine post cutter
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting, use the same hydraulic motor drive
3) Corrugated roof panel machine control cabinet

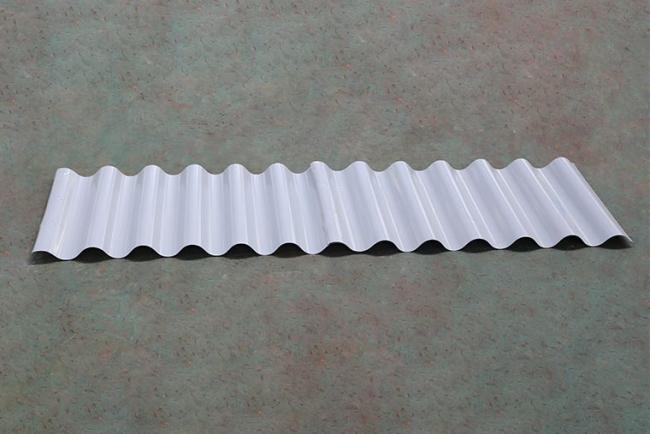

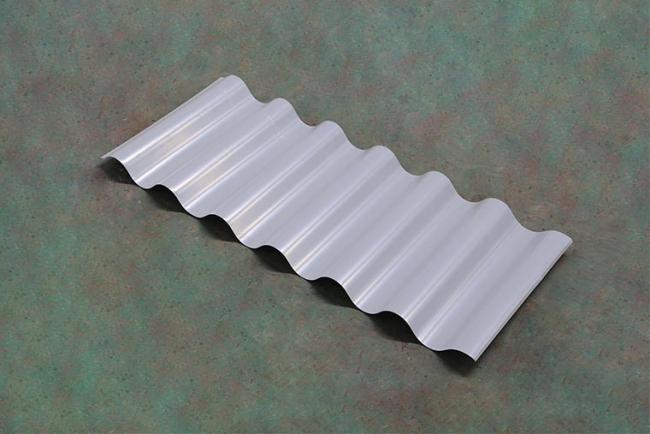

4) Corrugated roof panel machine product show
Overlap Effect

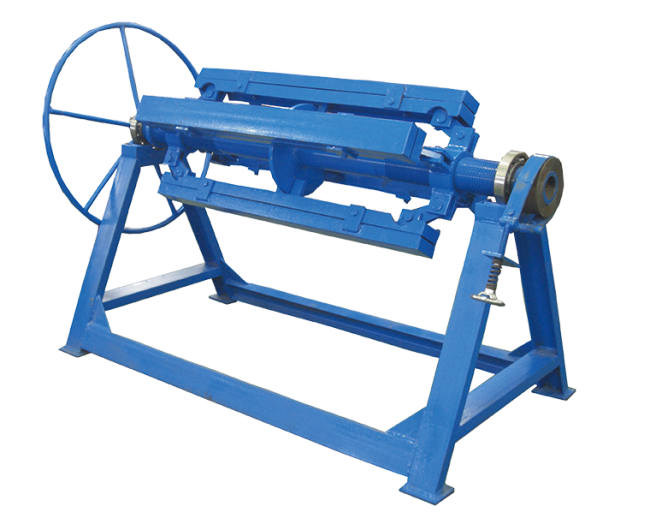

5) Corrugated roof panel machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1000mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton

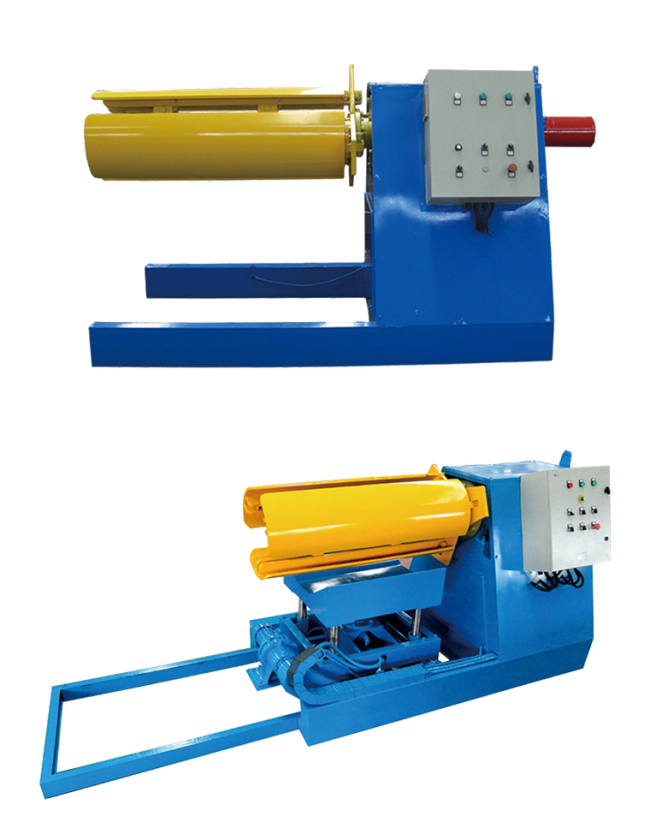

With 6 tons hydraulic decoiler for option

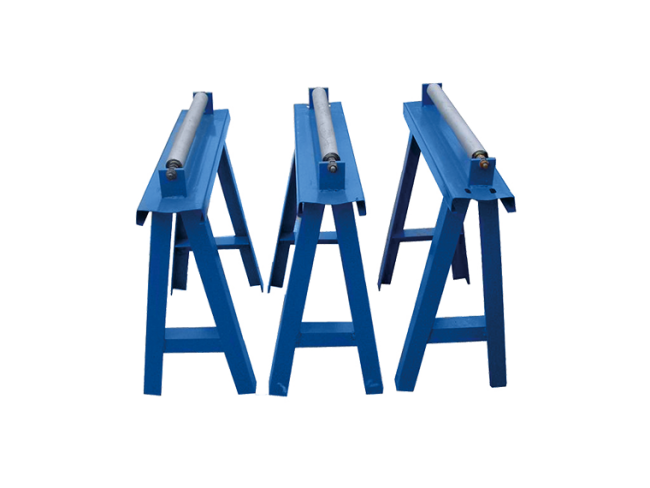

6) Corrugated roof panel machine exit rack
Un-powered,three units
4. Other detailes of corrugated roof panel roll forming machine
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 28 rollers to form
Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
User's manual in English
