Dual Door Rail Roll Forming Machine (2-in-1)

Main machine parameter

1.Main features of dual door rail roll forming machine (2-in-1)

The advantages of dual door rail roll forming machine (2-in-1) are as follows:

1.Accuracy Profile

2.Stable

3.Easy operation, low maintenance cost

4.Beautiful appearance.

5.Customorized for any size you want

2.Detailed Images of dual door rail roll forming machine (2-in-1)

Machine Parts

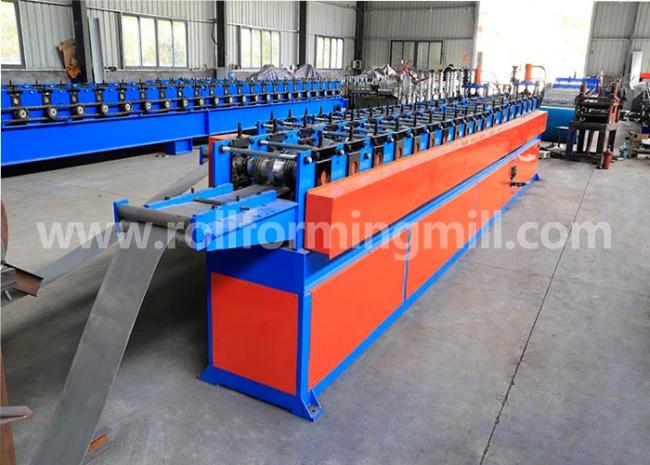

1) Dual door rail roll forming machine (2-in-1) feeding guide

Brand: BMS Original: China

2) Dual door rail roll forming machine (2-in-1) rollers

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 200# H type steel by welding

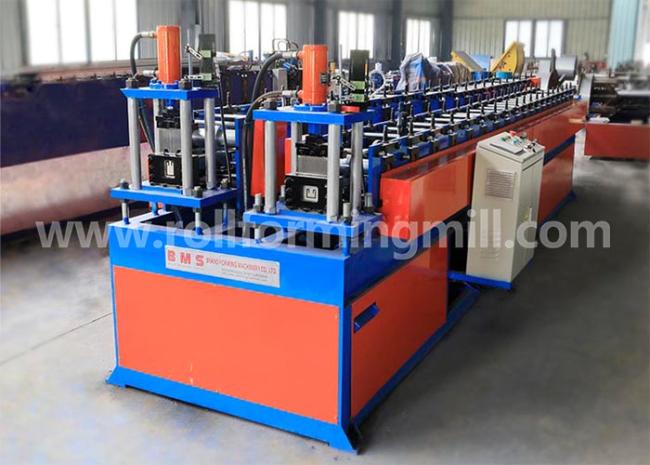

3) Dual door rail roll forming machine (2-in-1) post cutter

made by high quality mold steel Cr12 with heat treatment HRC58-62

Cutter frame made from high quality 20mm steel plate by welding

4)With 3 tons hydraulic decoiler for option

5)Other detailes of dual door rail roll forming machine (2-in-1)

Suitable for material with thickness 1.0-2.0 mm

Shafts manufactured from 45#,Main shaft diameter=φ56/75mm,precision machined

Motor driving,Gear chain transmission, 19 rollers to form.

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

6.

Dual door rail roll forming machine (2-in-1) exit rack

Un-powered,3 meters long ,four units

7)Product Show

Terms Of Trade

1. Minimum order quantity (MOQ): 1 Set.
2. Port of loading: port of Xiamen.
3. Type of payment: by T/T or by L/C.
4. Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.

Packing style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
