Mash Small Cattle Feed Plant , 0.9-12mm Feed Processing Plant With Screener Machine
Mash Feed Manufacturer Plant For Animal Feed With Screener Machine
Brief introduction of Mash Feed Manufacturer Plant
Flow Craft: Materials crusher--Mixer--Pelletizer--crumbler(according customer need)--Feed cooler--Screener machine--Packing machine
Application: Animal livestock Cattle Sheep Rabbit Feed and poultry chicken bird duck pigeon feed etc.

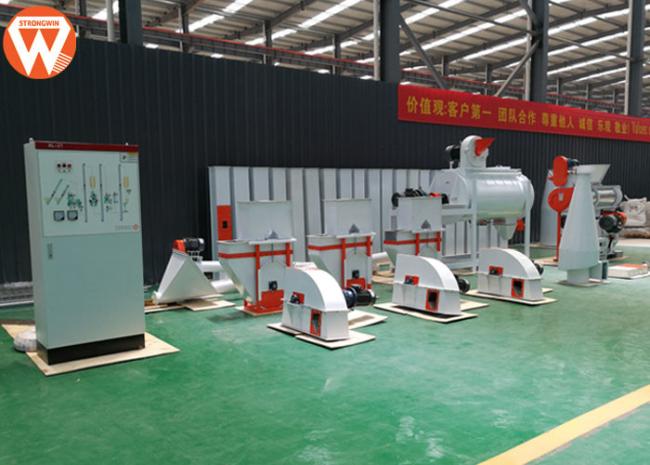

Main machine of Mash Feed Manufacturer Plant
Vertical pulverizer, always combined with single shaft ribbon mixer machine, Easy to operate and Installation.
Ribbon mixer machine: Body is round, there is no dead angle and no block inside
One end for feeding, the other for discharging, Simple corollary equipment, small investment.
High mixing evenness degree, CV≤7%,mixing time:2-4 minutes
Widely used in feed plants, livestock breeding industries,etc.
Ring die feed pellet machine: Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure
Permanent magnet device with high performance. Customize pellet mill with doubel layers or three layers.
Crumbler machine: It overcomes the disadvantages of changing different specifications of gear after drawbench processing during drive and easy- slippery of belt drive.
It is installed with reverse turning structure which can control the size of feeding mouth and make feeding well-distributed.
Cooler machine: Cooling separator is cooling and sieving equipment combination equipment, air-cooled cooler has the advantages of convenient installation, low operation cost, place for the lack of water resources, it can be used in high temperature, high humidity, dust environment, the characteristics of air cooled chiller, has the advantages of simple structure, small volume, light weight, low thermal resistance, heat transfer area etc.
Technical Parameters of Mash Feed Manufacturer Plant
| No. | Product | Type | Power(KW) |
| 1.Raw materials receiving and crushing and mixing system | |||
| 101 | Screw Conveyor | TSLL16 | 2.2 |
| 102 | Hammer Crusher | SFPZ56*20 | 15 |
| 103 | Ribbon Mixer | SHW1.0 | 7.5 |
| 2.Pelleting system | |||
| 201 | Bucket Elevator | TDTG36/18 | 2.2 |
| 204 | Pellet Machine(include control box) | SZLH250 | 11*2+2.2+0.75 |
| 3.Cooling system | |||
| 303 | Airlock | GFY250 | 0.75 |
| 304 | Counter Flow Cooler | SKLN11×11 | 0.75 |
| 305 | Air Blower | 4-72-4A | 5.5 |
| 308 | Pellet crusher | SSLG15*80 | 5.5 |
| 309 | Manual Three-way | SD20*20 | |
| 4.Auxiliary System | |||
| 402 | Rotary Screener | SFJH80*2d | 1.5 |
| 5.Auxiliary System | |||
| 501 | Boiler | ||
