High Strength Scraper Chain Conveyor 20-80t/H Yield Run Stably Low Noise

High Strength Run Stably Chain Scraper Conveyor With Low Noise

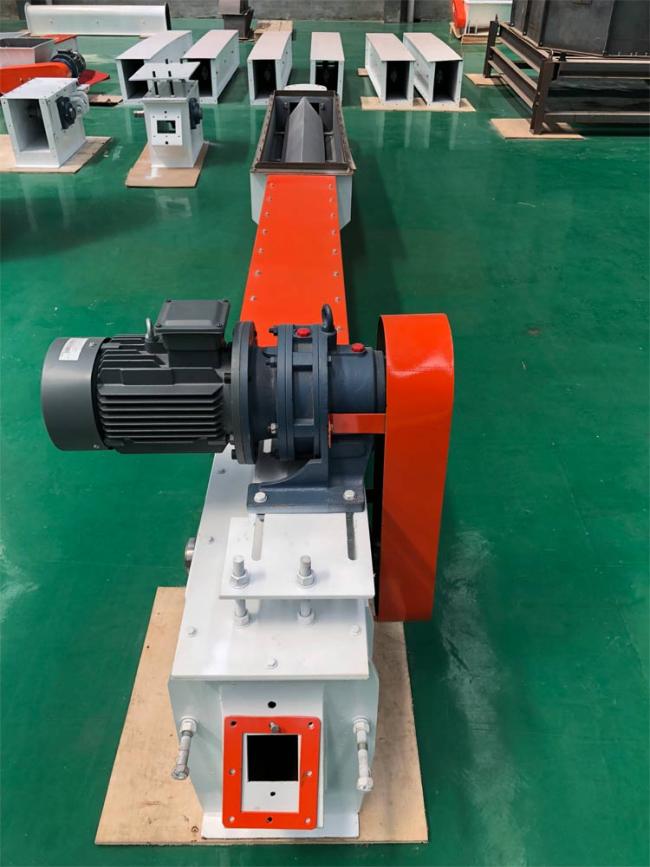

Working principle of Chain Scraper Conveyor

When the motor is energized, the drive wheel is driven by the reducer and the sprocket chain, and the drive wheel drives the scraper chain; the material is subjected to the thrust of the scraper chain in the moving direction, so that the internal friction between the materials is sufficient to overcome the frictional resistance between the material and the groove wall. Therefore, the material can be transported as a whole in a continuous flow, so that the material entering from the feed port is scraped along the trough to the discharge port for discharge.

Features of Chain Scraper Conveyor

The chain is made of high strength tube sheet chain, with high quality abrasion-proof rail is used, it can run stably, with low noise.

It is available to feed and discharge materials from multiple places, with flexible technology placement.

It can prevent material from blocking, chain from breaking and give an alarm, with other protection functions available.

Being used widely for conveying particle and powe materials for granary, port, grain and feedingstuff processing industry.

Technical parameters of Chain Scraper Conveyor
