20mm 25mm PPR Pipe Production Line Double Layers Siemens Control System
20mm 25mm PPR Pipe Production Line Double Layers Siemens Control System

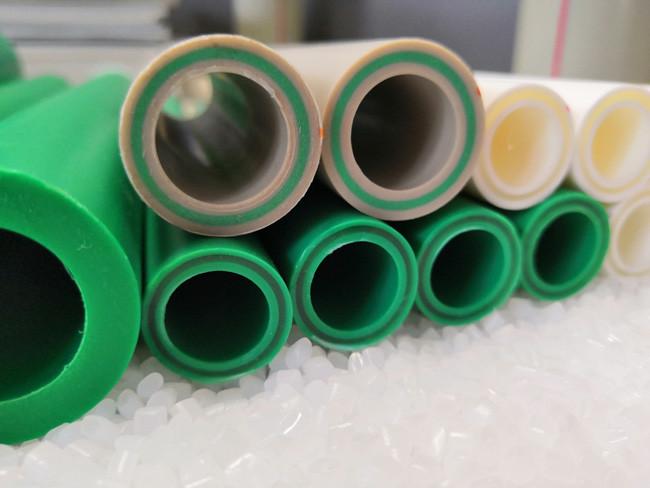

PPR Pipe Production Line base on the different raw material, there are many pipes for different applications like water drainage and water drinking, electric wire conduit,etc.
TECHNICAL DATA:
| Line Model | Screw Diameter | L/D Ratio | Production Scope | Extruder Output |
|---|---|---|---|---|
| KDGF-75 | 75mm/60mm | 36:1 | 20mm-32mm | 550kgs/h |
Main Features of Pipe Machine
|
Line Model |
Screw Diameter |
L/D |
Production Scope |
Production Speed |
Nominal Power |
| KDSG-60 | Ф60mm | 36:1 | φ20-32mm | 15m/min×2 | 148 Kw |
| KDSS-60 | Ф60/60mm | 36:1 | φ20-32mm | 25m/min×2 | 188 Kw |
| KDSS-75 | Ф75/60mm | 36:1 | φ20-32mm | 35m/min×2 | 230 Kw |

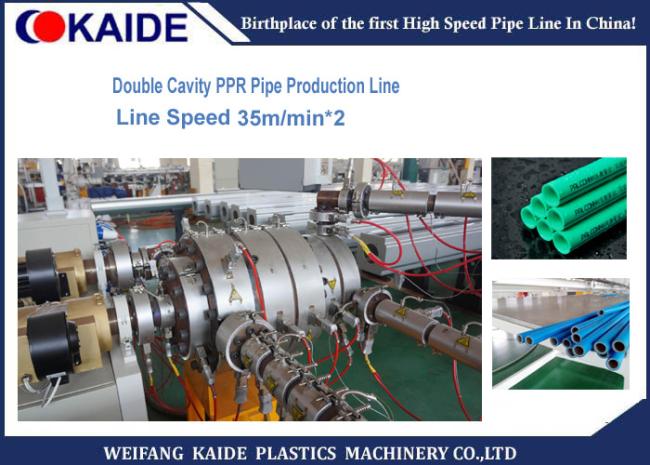

● Die Head
◎Double strand pipe extrusion die head mold is manufactured by imported CNC machine,
◎With a pressure balance distribution device, ensuring the precise control of double extruded pipes in any condition.

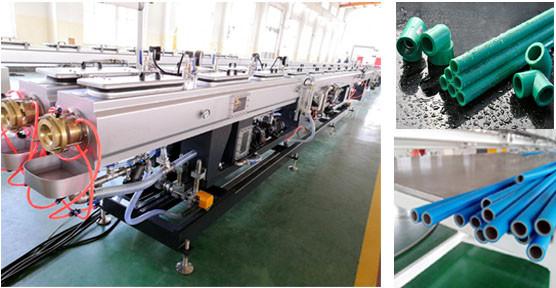

● Specially Structure
The double strand pipe structure is specially applied in the vacuum calibrating tank, haul off machine and cutting machine, with nice appearance and scientific design, which are very easy to operate and control.

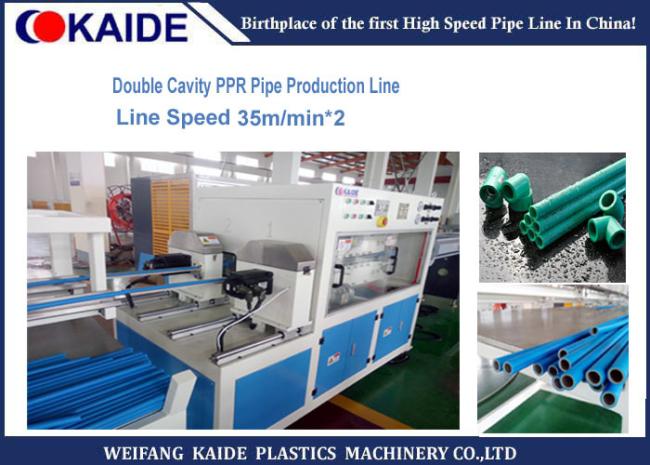

● PLC Control System
◎The double ppr pipe making machine adopts original Siemens PLC control system.
◎Multi-point closed-loop control system, which ensure the high speed synchronous control and reliable operating of the whole production line.
For more information, please Contact us !
