Microduct HDPE Silicone Core Pipe Production Line Speed 60m/min, 5mm-18mm
Price:
USD50000-USD200000
MOQ:
1set
Delivery Time:
60 days
Brand:
KAIDE
Product Description
Microduct HDPE Silicone Core Pipe Production Line Speed 60m/min, 5mm-18mm
|
Line Model |
Screw Diameter |
L/D |
Production Speed |
Nominal Power |
L×W×H |
| KDGX-75 | Ф75mm | 36:1 | 80m/min | 178KW | 50×2.5×3 |
| KDGX-60 | Ф60mm | 36:1 | 50m/min | 134KW | 40×2×3 |
| KDGX-65 | Ф65mm | 33:1 | 20m/min | 95KW | 31×2×3 |
High Efficient Extruder
This Microduct hdpe silicone core pe pipe production line, based on plenty of researches and applications of different materials, high output self-designed extruder has advantages of high sufficiency, better stability, etc. The high efficient five-section screw can ensure rapid plasticizing of raw material and guarantee high speed and stable production. In particularly, the silicon layer extruder that is designed according to it’s material feature can ensure the efficient and stable extrusion.
Co-Extrusion Die Head Moulds
The adjustable co-extrusion die head mould of Microduct PE Pipe Making Machine, our patent product, can make the primary plastic material and silicon material composite quickly and evenly. There is no need to adjust extruder speed to get ideal wall thickness of each layer, which can reduce the dependence on operator’s skill during production process.
Specialilzed Microduct Coiler Machine
Standard equipped winding machine of HDPE Silicone core pipe machine has intelligent functions, such as automatic pipe traversing, tension control of winding speed, etc. There is no need for any manual intervention to ensure the winding effect during the whole process.
Programmable Siemens PLC Control System
Programmable control system is applied, which effectively improves the synchronization and operability of the entire line. The programmable control system not only allows workers to operate machine with less time and less effort, but also allows the managers to know the operation conditions in real time

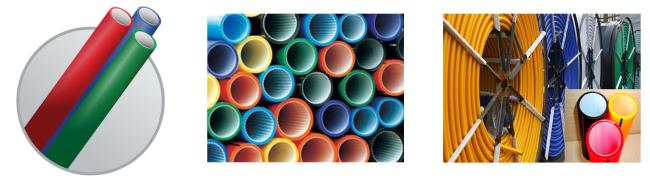

Microduct Application
Silicon core ducts are being used more and more widely in the fields of outdoor communication cable, optical fiber pipeline system, public information networks, television network, expressway and railway communication projects.
