EVOH Oxygen Barrier Plastic Pipe Extruder For 3 Layer PERT Pipes

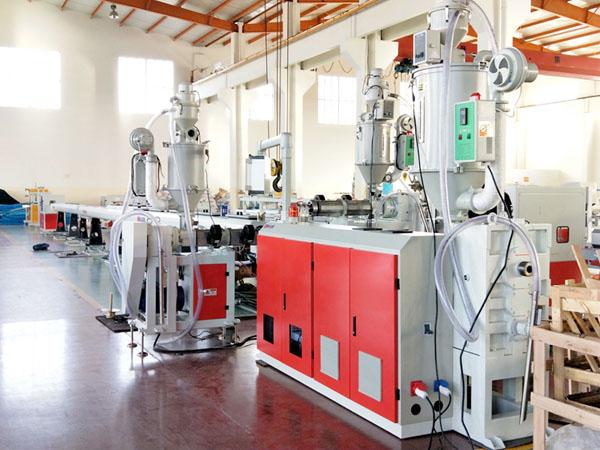

3 Layer EVOH Oxygen Barrier Pipe Production Line
Below pipe extrusion machine is used to produce 3 layer PERT pipes with EVOH oxygen barrier layer. EVOH pipe is mainly used in heating system.
KAIDE factory focus on plastic pipe extrusion only, especially for high speed pipe machine and multi-layer pipe machine. Regarding EVOH pipe machine, the market share is over 85% with plenty practical experience and advanced technology.
TECHNICAL DATA
| lINE Model | Screw diameter | Production Scope | Production Speed | EVOH Type |
|---|---|---|---|---|
| KDZY-65 | 65mm/30mm | 16-32mm | 12m/min | 3 layer structure with EVOH outside |
EVOH PIPE MACHINE DETAIL INTRODUCTION
Extruders & die head
- Extruders driven by AC motor; with ABB converter, Schneider electric elements;
- special designed 3 layer co-extrusion die head; made of high quality mould steel 40Cr
Vacuum tank & Cooling tank
- made by high quality SS304
- high quality vacuum pump & water pump
- special design calibrator for drip pipe making
Winding Machine
- servo type traversing device, driven by SIEMENS servo motor
- with tension control device to auto adjust winding speed
- separate SIEMENS PLC control system
- Coil length free setting;
- Auto stop protection function while sensor pipe end
MORE INFORMATION NEEDED,
PLS CONTACT US RIGHT NOW!!
