HDPE Microduct Production line/Optical Fibre Ducting Extrusion line

KAIDE Microduct production line is used for producing μ-Duct which used in Telecommunication industry. It's used in optical fibre internet access ways to replacing the traditional type.

Technical Data:

Each Part introduction:

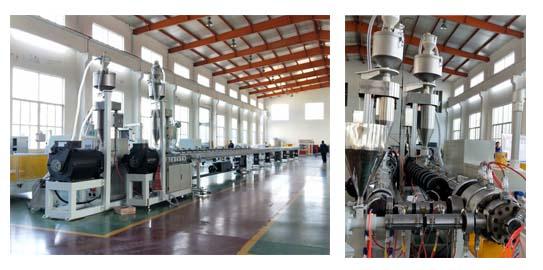

1.Extruder with Stripe layer

• Enough extruder capacity for each model
• Self-designed 5 section screw structure with many patents. Make sure the plastic raw      material's melting evenly.
• Pressure in die head is stable, which make sure the pipe's extrusion process is stable too.
• The pipe's surface is smoothly and the diameter and thickness is exactly according to the telecom company's requirement.
• As our customers said: Perfect !!!!

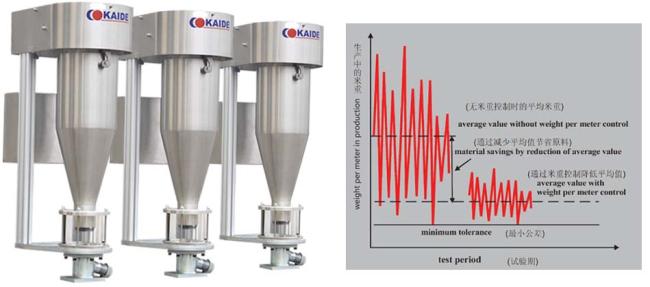

2. Die head and Gravimeter

Advantages with gravimeter:

• Make sure the pipe's weight per meter is constantly
• Reduce the machine's starting time
• Reduce the waste of raw material

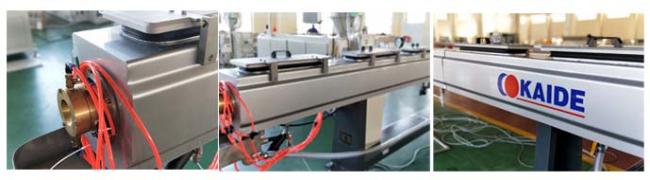

3.Calibrating and Cooling System

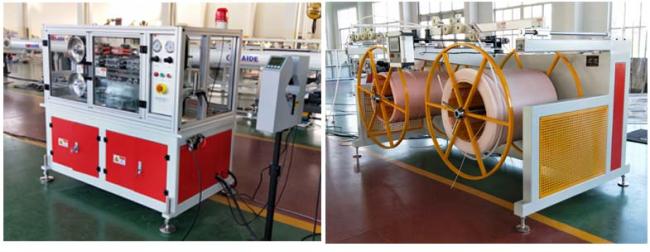

4. Hauling and Auto-winding Device

• HDPE Silicon microduct extrusion line is using Servo- travsering unit, which make sure the     pipes are ranked neatly and cleanly.
• Servo motor driven. Windly stablely.

• Microducts pipelines are produced according to the microduct pipe's specification from telecommunication companies.

• Extremely High Producing Efficiency

• High Finished Pipe Precision

         Diameter Tolerance: ±0.1mm

         Thickness Tolerance:+0.05mm

• Excellent finished pipe's appearance.

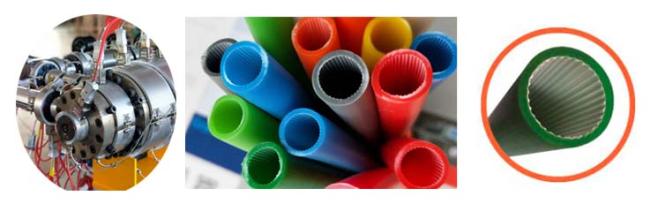

The finished Micro Duct with smooth outer appearance and evenly grooved inner surface.​

• ​Reduce the Waste of pipes

      High Precision Die Head Mould Designing Technology, which make sure the operators be easy

      handle the producing process, even no any pipe producing experience before.​

• Simens Independent PLC control system.

The finished silicon cor ducts are used more and more widely in the fields of ourdoor communication cable, optical fibre pipeline system, public information networks, TV networks, expressway and railway communication projects.

• Microduct Cabling Solutions
• Other Telecommunication system​

Here present only a friction of our growing products. Contact us or visiting our website to learn more about our products. We can also modify and develop our products to fit your special requirement.
