32mm Multiduct 350KG / H Hdpe Pipe Extrusion Machine
HDPE Silicon Core Microduct Pipe Tube Hose

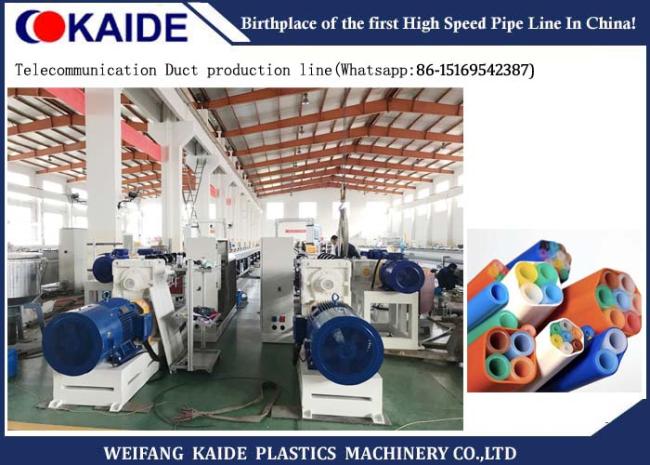

Multiduct Extrusion Line Making Machine Plant Production
As a new casing pipe for the protection of light and electric cable, HDPE silicon core pipes are characterized by corrosion-resistance, agereistor little friction coefficient of inner wall,good insulativity,and can be fixed very soon. It has been used in Europe for more than 10 years,and also has been initially used in China. It can be widely used for the protection of light cable of expressway, post and telecommunications and special networks of military,so make the light and electric cable as pipeline.
Nowadays, especially popular in Microduct cabling solution project. It's inner silicon layer can reduce the friction force when blowing the optical fibre inside the duct with over 3000m length.. Another advantage is this microduct can be embedded into the road in advance. This solution is perfect for growing and changing cities and neighborhodds: during the initial installation you don't need to know how the cable network will look like years ahead because microduct network can be altered easily afterwards.
Then, how to produce Microduct with low friction force silicon layer? KAIDE factory has accumulated dozens of customer case within the past 20 years.
Integrated with double layers co-extrusion, cooling and finalizing the design,drawing and winding,the production line is characterized by high automaticity, even plasticzation, long life, easy,operation and mainteance. So it is in chemical and construcion firmis good graces.
- Dozens of customer cases, most of whom are the Top Brand in telecommunication fileds in their countries.
- The most high speed in China- 120m/min, which can reduce the labor cost for some high developed countries. You know some of their labor cost is about Eurodollar 150/day. Then too much lower capacity is no sense to their profit.
- Skilled multi-layers technologies. KAIDE is good at co-extrusion technology over 20 years. You can see our customers everywhere.
|
→ Pipe diameter from 5-32mm |
|
→ Stable production speed 60-120m/min |
|
→ Siemens PLC control system |
|
→ Remote computer control after-sales service. |
|
→ Low voltage electricals: Schneider Brand |
|
→ Frequency Inverter: ABB |
|
→ Pipe Traversing Unit: Servo traversing. Neatly appearance. |
→ SJ60/36 Extruder
→ SJ45/30 Extruder
→ Vacuum Tank
→ Cooling Flume
→ Haul-off Machine
→ Winding Machine
The microduct silicon core tube production line informations:
| Model | Extruder | Capacity | Production speed | Installation Power |
| KAIDEDUCT-1 | SJ75,SJ50 | 350KG/H | 120m/min | 180KW |
| KAIDEDUCT-2 | SJ60, SJ45 | 230KG/H | 80m/min | 130KW |
| KAIDEDUCT-3 | SJ60, SJ45 | 180KG/H | 60m/min | 100kw |
