China HDPE Silicone Core Pipe Production Line

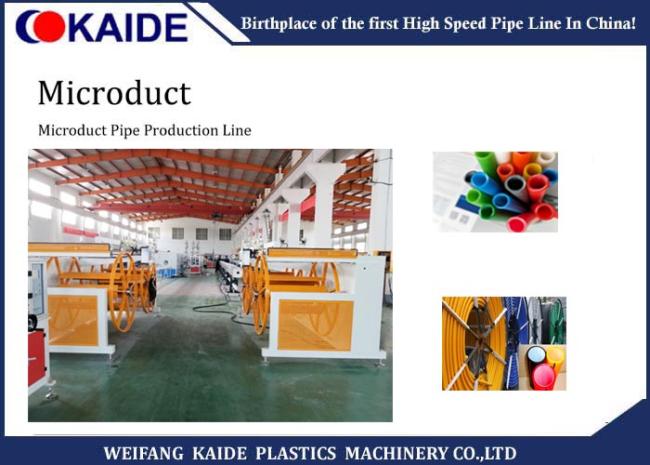

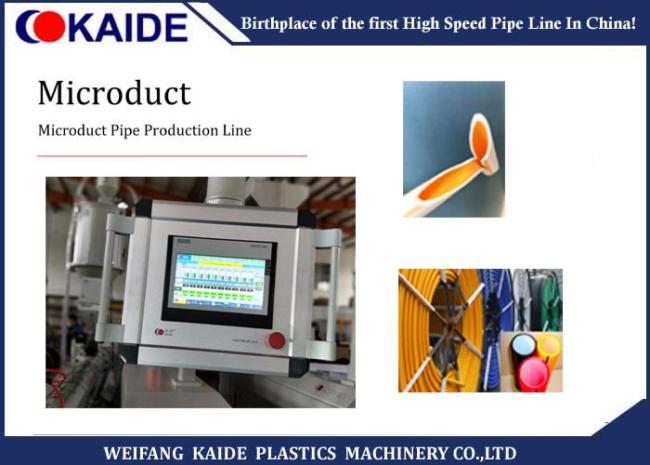

PE Pipe Production Line of Microduct 7mm/3.5mm

This PE Pipe Production line of Microduct tube machine, is used to produce HDPE Silicone core pipe, with diameter 5mm-14mm, or 16mm, this application of this pipe is for telecommunication, such like FTTH, network, telecom system, optical fiber etc,

Microduct pipe can be used separetely, also can be jacketed by bundles, such like 2 ways, 4 ways, 7 ways, 12ways, 19 ways, etc.

Below pipe extrusion line is to make those microduct at high speed 80m/min.

Main Technical Parameters of this PE Pipe Production Line (Microduct pipe machine):

The Silicon material used for the inner layer ensures easy installation of cable due to its low coefficient of friction. As a result, no lubricants are rquired/ TO furtherreduce friction, pipes maybe supplied with a ribbed core.

1. High Effient Extruer equipped for this PE Microduct Production Line

2. Double Layers Co-Extrusion Die Head Moulds equipped by this plastics pipe line

The adjustable co-extrusion die head mould, our patent product, can make the primary plastic material and silicon material composite quickly and evenly. There is no need to adjust extruder speed to get ideal wall thickness of each layer, which can reduce the dependence on operator's skill druing production process.

3. Specially Designed Coiler Machine of this microduct PE pipe production line

This Microduct tube machine with standard equipped winding machine , which has the intelligent functionos, such as automatic pipe traversing, tension control of winding speed, etc. There is no need for any manual intervension to ensure the winding effect during the whole process.

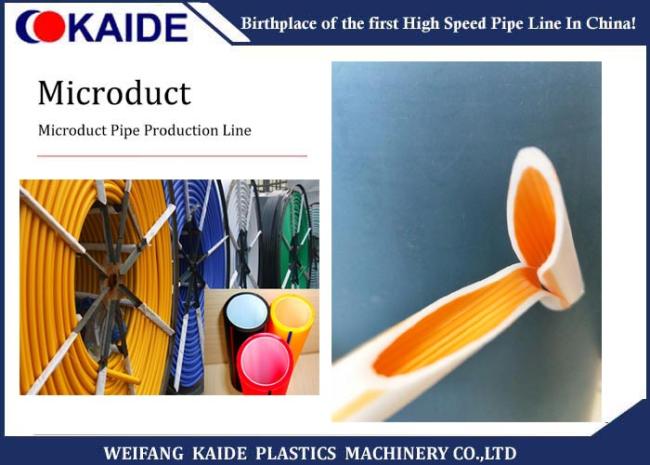

● Referenced Manufactured microduct Pipe Specification

The PE Microduct Pipe Production Line can produce below pipe diameter and thickness

For more information, please contact us !
