Customizable and High-Performance SHY Series Organic Fertilizer Granulator for Fertilizer Production
SHY Series Organic Fertilizer Granulator for Customizable and High-Performance Fertilizer Production
Applications and functions:

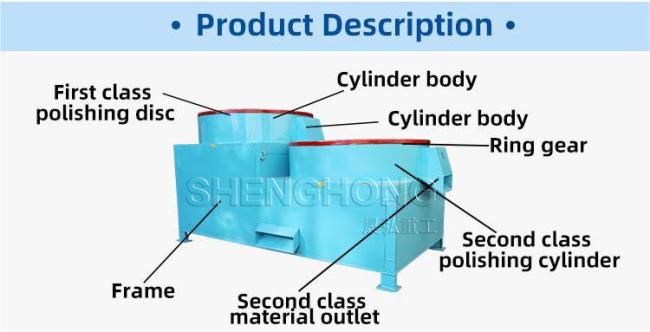

The machine in the production process can be combined with organic fertilizer pelletizer, disk pelletizer, flat mold pelletizer and other equipment used at the same time, it is composed of two or three throwing cylinders arranged in sequence, the material after several times of throwing round, finished particles are discharged from the discharge port, the finished particles have the same particle size, round and smooth, and the finished product rate is as high as 98%, and a small amount of fertilizer falls from the disk edge gap of the organic fertilizer throwing round machine.
| Model | SHY-800-2 | SHY-1000-2 | SHY-1200-2 | SHY-1200-3 | SHY-1500-2 | SHY-1500-3 |
|
Capacity (t/h) |
0.5-2 | 2-3 | 3-6 | 5-8 | 6-12 | 8-15 |
|
Pawer (kw) |
4/4 | 5.5/5.5 | 7.5/7.5 | 7.5/7.5/7.5 | 11/11 | 11/11/11 |
|
Rotation speed (r/min) |
296 | 298 | 302 | 305 | 309 | 311 |
|
Length × width × height (mm) |
1920*950*1220 | 2180*1080*1320 | 2580*1260*1320 | 3360*1260*1740 | 3350*1640*1740 |
4900*1640*2150
|
Flowing along the waste port, the machine has the advantages of simple operation, low power consumption and low noise.

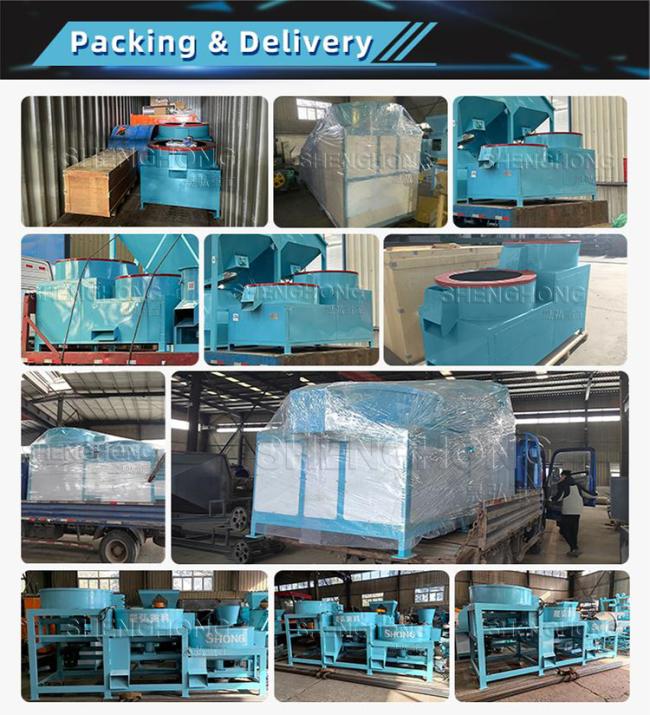

Packaging & Shipping
Packing details: Standard sea transport packing or under the customers' requirement.
Delivery time: The productc will be shipped within 15 days once receipt the deposit payment.
