Stainless Steel Rotary Drum Fertilizer Granulator 3-5t/h 7.5KW
Organic And Compound Fertilizer Granulator With Rotary Drum Granulator
Introduction of drum compound fertilizer granulator
Rotary drum compound fertilizer granulator is a common equipment for compound fertilizer granulation. It is mainly used in the production of NPK compound fertilizer, heavy superphosphate(TSP), monoammonium phosphate(MAP), diammonium phosphate(DAP) and other products.
We adopts special rubber liner or acid-resistant stainless steel liner into the rotary drum, and achieve the functions of automatic scars and tumor removal, so that you can cancel the traditional scraper device. This machine has so many characteristics such as high balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, convenient operation and maintenance and so on
Rotary Drum Compound Fertilizer Granulator Features
1.Low investment, good economic returns, reliable performance, and so on.
2.Low power, no three waste discharge, stable operation, convenient maintenance, reasonable process layout, advanced technology, low production cost, and so on.
3.High ball strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption, and so on.
4.The cylinder body adopts special rubber lining or acid-resistant stainless steel lining, which eliminates the traditional scraper device.
Working Principle of drum compound fertilizer granulator
The inner part of the rotary drum compound fertilizer granulator is composed of granulating area, blanking area, steam nozzle, annular baffle, etc. In the production of compound fertilizer, steam and ammonia are sprayed on the rolling material layer inside the barrel. The powder material is extruded and rolled through the barrel rolling, and micro-granular nuclei are formed in the barrel, which eventually agglomerate into granules. The granulation effect of drum granulator will directly affect the granulation rate and product quality of materials.
Parameter of drum compound fertilizer granulator
| Model | ZG1.4*5 |
| Inner dia | 1.4m |
| Length | 5m |
| Speed | 14 r/min |
| Power | 7.5kw |
| Capacity | 3-5 t/h |
| Dimension | 4.8*2.8*2.3m |

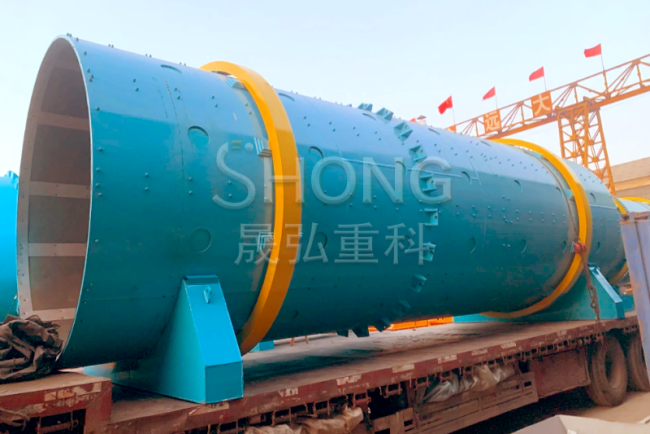

Picture of drum compound fertilizer granulator
