Automatic Animal Manure Organic Fertilizer Pellet Manufacturing Machine Price
Automatic Animal Manure Organic Fertilizer Pellet Manufacturing Machine Price
Introduction:

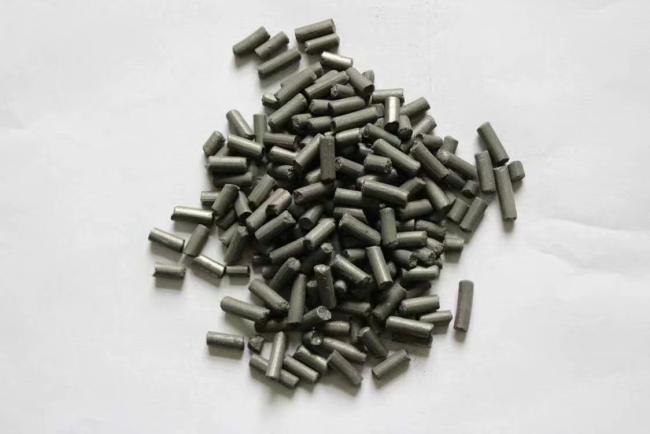

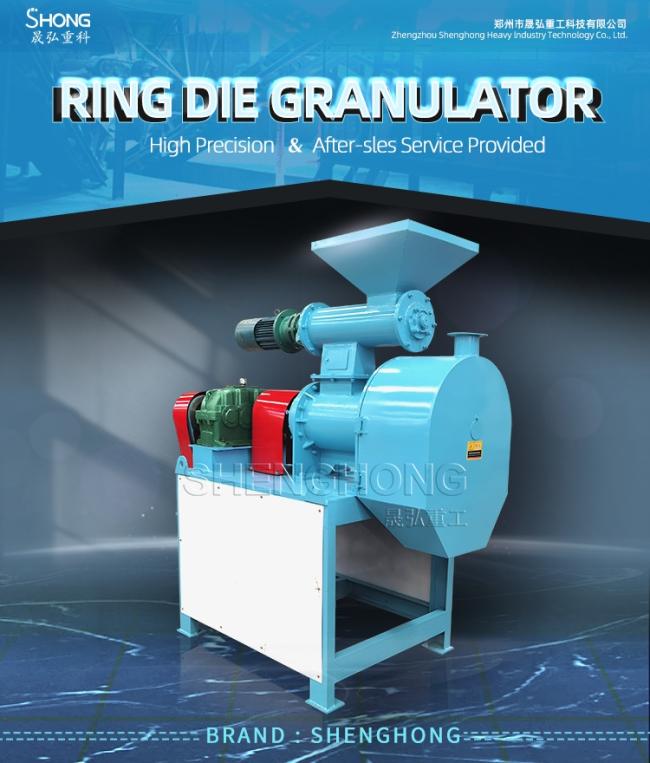

Ring die pellet mill is aiming at producing bio-organic fertilizer pellets. It is used for pelleting various of organic matter after fermentation. It can produce cylindrical granules directly without drying or crushing process which saves a lot of energy. Forming the granules at one time, no returning particles, high granulation ratios. Thus, it is an ideal equipment for modern organic fertilizer production line.
This pellet mill can produce chicken/cow manure pellets, poultry feed pellets, all kinds of organic fertilizer pellets. The raw materials contain chicken manure, cow manure, sheep dung manure and can mix with all kinds of powder materials.
Except for using in organic fertilizer production, the pellet machine has many applications. Typical application materials are activated carbon, carbon powder, coal, plant fiber, fermentation waste, biological fertilizer, additives, catalysts, pesticides, clay, lead oxide, zinc oxide and so on.
Parameter:
| Model | SHH-400 | SHH-600 |
| Capacity (t/h) | 4-6 | 7-10 |
| Power (kw) | 30/3 | 45/4 |
| Rotation speed (r/min) | 78 | 86 |
| Particle temperature rise (℃) | ＜30 | ＜30 |
| Goal formation rate (%) | 95 | 95 |
|
Length × width × height (mm) |
2000*1050*2200 | 2235*1450*2250 |
| Weight (kg) | 1285 | 1800 |
The raw materials to make granules can be:
1.AgriculturalA waste:A straw,A dregsA ofA beans,A cottonA dregs,A riceA bran,etc.
2.AnimalA manure:A mixtureA ofA poultryA litterA (PL)A andA animalA waste(AW),suchA as,SlaughterhouseA Waste,FishA Market,UrineA andA dungA ofA cow,Pigs,Sheep,deer,Chicken,A Ducks,A Geese,Goat,earthworm cast etc.
3.IndustrialA waste:A vinegarA residue,A maniocA waste,A sugarA scum,A furfuralA residue
,Bean cakes, Vinasse slag, Biogas residue, Fruit residue, palm oil residueA etc.
4.Residues of urban rubbish or sewage treatment plants.
5.HomeA scrap:A foodA waste,A theA rootsA andA leavesA ofA vegetables,A etc.
6.Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp.
7.Organic materials mix with mineral materials.

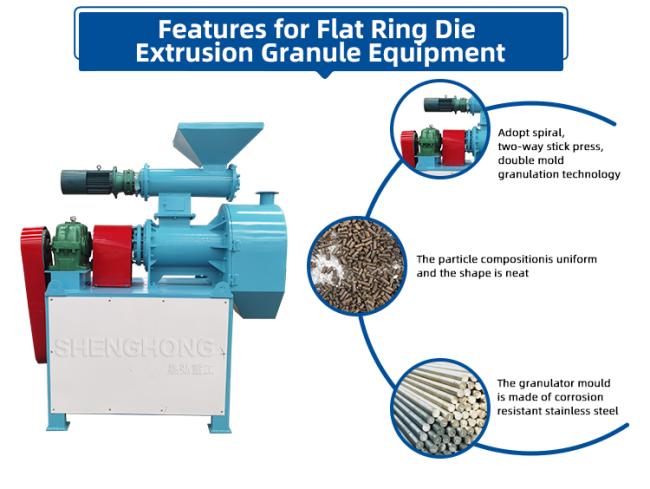

Feature and application
1. Flat die fertilizer pellet machine is simple structure, wide adaptability, small footprint and low noise.
2. Flat die fertilizer pellet machine with strong structure, flat die and rollers is wear-resisting, heat-resistant, alloy steel.
3. Flat die organic fertilizer pellet machine is a small device, it is designed small and medium-sized Livestock farm, poultry factory.
