2t/H Compost Organic Fertilizer Granulator With Stir Tooth
Organic Fertilizer Granulator Ball Shape Fertilizer Making Machine
Organic Fertilizer Granulator Applications:
For a variety of organic materials granulation, turning waste into treasure, comply with the development trend of organic fertilizer, at the same time ensure the quality of the fertilizer granules, so that the machine has low energy consumption, low production cost, high yield, is considered to be the best Organic fertilizer granulator. Small organic fertilizer plant is the most widely used equipment, 50,000 tons / year production line!
Organic Fertilizer Granulator Features:
1, the organic fertilizer granulator as continuous wet granulation ram. Granulated for various powder materials, such as mineral powder, such as bentonite, clay, bauxite, as well as other powder such as coal sludge, fly ash, combustion ash.
2, can be used for organic fertilizer granulator organic fertilizer granulation. Especially in large-scale production capacity, miscarriage from 8t / h start, generally live up to 15-20t / h.
3. Small pellets or granules, 0.3 to 5 mm in diameter, the particle size is adjustable, similar to wet granulation and drum granulation. Easy operation, long service life, just routine lubrication maintenance. Compared with the drum granulator, drum zero residue and clean work.
4. The control feed moisture in the 20% -40%, the moisture content remains unchanged, the dryer can be equipped with further processing or placed directly in the hot zone.
Raw material of organic fertilizer:
| Raw material | Material classification |
| Livestock manure | Chicken, duck, rabbit, pig, cow etc |
| Garbage of urban life | Restaurant waste, Household waste etc |
| Pond sludge | Fish pond, shrimp pond, Loach pond etc |
| Food processing remaining waste | Fungus food plantation waste, beer trough, starch trough, rice bran trough etc,bean dregs, pond dregs, fruit residue,sauce residue etc. |
| Others | Gardening waste, mud scum,straw etc |
Organic Fertilizer Granulator Parameters:
| Model |
power (kw) |
Rotation speed (r/min) | Capacity (t/h) |
Length × width × height (mm) |
| SHZ-60 | 30 | 312 | 1-1.5 | 3660*950*1050 |
| SHZ-80 | 45 | 242 | 2-3 | 3665*1200*1280 |
| SHZ-100 | 55 | 373 | 3-5 | 3660*1400*1500 |
| SHZ-120 | 75 | 450 | 5-7 | 5410*1500*1610 |

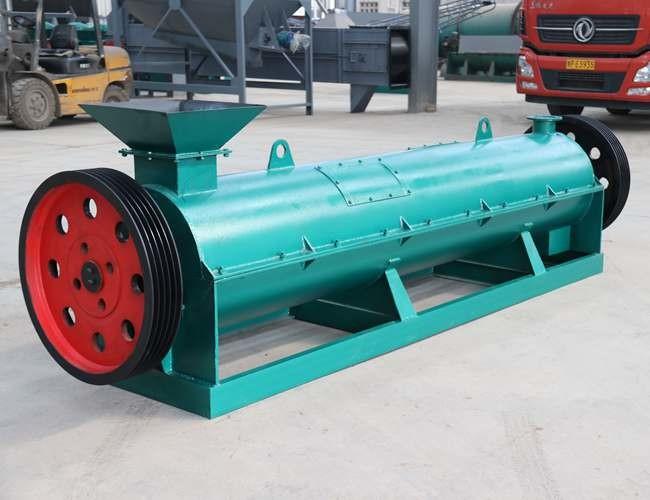

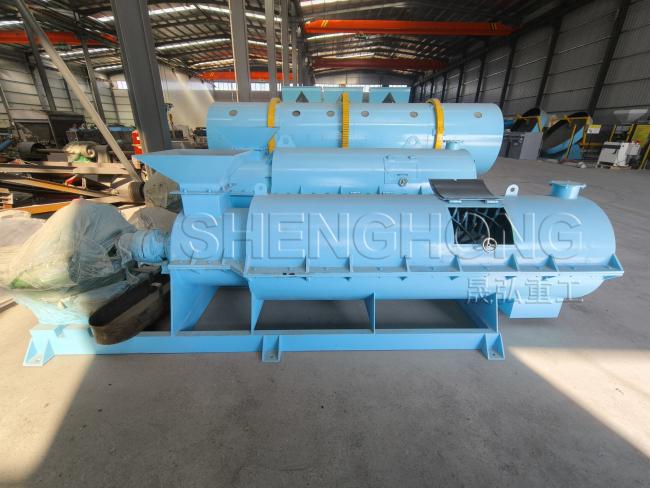

Organic Fertilizer Granulator Picture:
