10TPH Organic Fertilizer Production Line For Warehouses organic fertilizer granulator

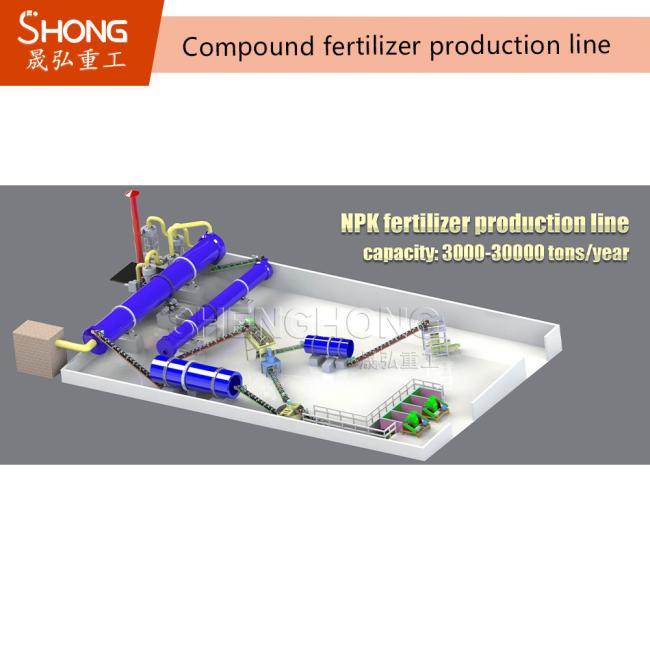

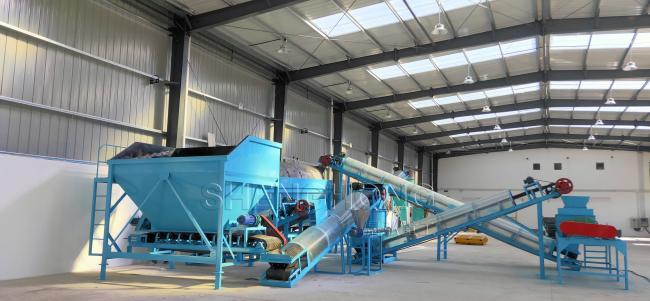

Complete equipment for organic fertilizer production line

1 Raw material accumulation and fermentation equipment---trough type stacker and plate chain type stacker. Realize the new design of one machine with multiple slots, effectively saving space and equipment investment funds.

2. New type of dry and wet material crusher-vertical crusher and horizontal crusher, the internal structure has chain type and hammer type. There is no screen, even if the material is smashed out of the water, it will not be blocked.

3. Fully automatic multi-warehouse batching machine--designed as 2 warehouses, 3 warehouses, 4 warehouses, 5 warehouses, etc. according to the customer's raw material varieties. In the system structure, a small and medium-sized distributed control system is adopted to realize the problems of decentralized control and centralized management; this system adopts static weighing and batching, dynamically evenly dividing the materials, so that the prepared materials can reach a good level before entering the agitator The mixing process absorbs the respective advantages of dynamic and static ingredients; it has manual and automatic switching functions. When online, each control unit exchanges information, and the upper computer is far away from the operation site, which improves the stability of the system and improves the working environment of the operator;

4. Mixing mixers-including vertical mixers, horizontal mixers, dual-shaft mixers, drum mixers, etc. The internal mixing structure is divided into agitating knife type, spiral type, etc. Design a suitable mixing structure according to the characteristics of the material. The discharge port is designed for cylinder control and baffle control.

5. Special granulator for organic fertilizer-including disc granulator, new wet granulator, rounding machine, drum granulator, coating machine, etc. According to the characteristics of the raw materials, select the appropriate granulator.

6. Rotary dryer-alias drum dryer, biological organic fertilizer dryer, because the temperature can not exceed 80 ° when drying organic fertilizer, so our dryer adopts hot air drying mode.

7. Cooling machine-similar in appearance to the dryer, but different in material and performance. The main machine of the dryer is made of boiler steel, and the main machine of the cooler is made of carbon steel plate.

8. Screening machine-including drum type and vibrating type. The screening machine is divided into three-stage sieve, two-stage sieve and so on.

9. Particle coating machine-the appearance of the main machine is similar to that of the dryer and the cooler, but the internal structure is quite different. The coating machine adopts stainless steel plate or polypropylene lining. The whole machine includes matching powder machine and oil pump.

10. Automatic weighing and packaging machine-including screw type and DC type, single head and double head, the materials are stainless steel and carbon steel, customized according to the actual needs of customers.

11. Conveying equipment-including belt conveyors, screw conveyors, bucket elevators, etc.
