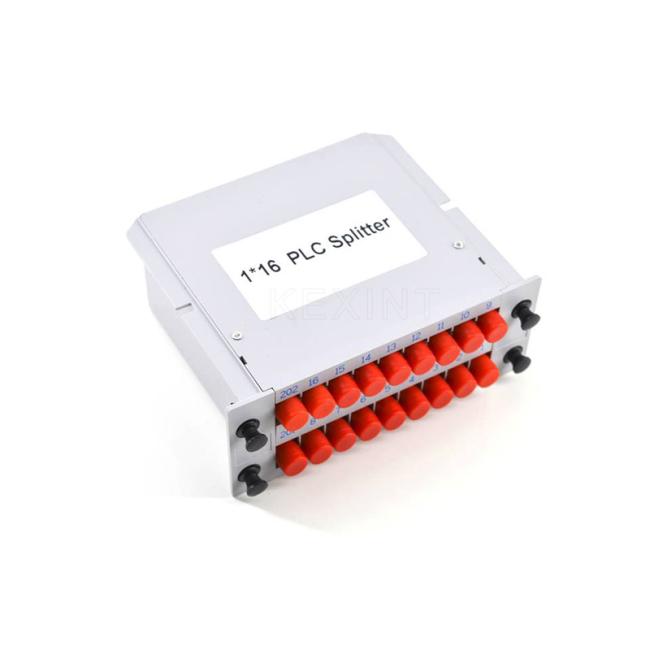

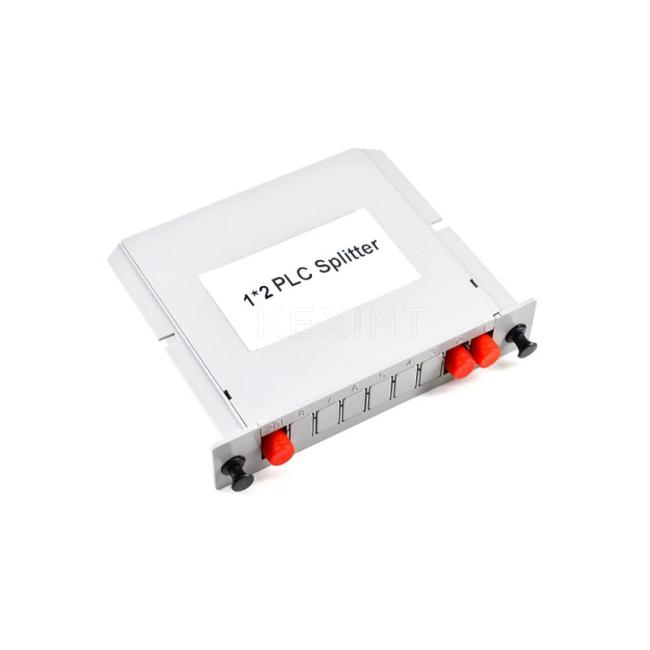

Kexint 1x2 1x4 1x8 1x16 1x32 White Color Low In Loss Passive Fc fiber optic plc splitter Ftth Cassette Insert Type

Name: Kexint 1x2 1x4 1x8 1x16 1x32 White Color Low In Loss Passive Fc fiber optic plc splitter Ftth Cassette Insert Type
Brand: COMELINK CO.,LTD

Price Negotiable

Price: USD2.36~USD3.69 per pieces

MOQ: 10 pieces

Delivery Time: 10~15 work days

Brand: KEXINT

Product Description

Types	1x2	1x4	1x8	1x16	1x32
Test Wavelength	1310nm	1310nm	1310nm	1310nm	1310nm
Working Wavelength	1260nm~1650nm	1260nm~1650nm	1260nm~1650nm1260nm~1650nm	1260nm~1650nm	1260nm~1650nm
Interfacee Model	SC/UPC	SC/UPC	SC/UPC	SC/UPC	SC/UPC
Insertion Loss(dB)(P/S level)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9
Loss Uniformity(dB)	0.4	0.6	0.8	1.2	1.5
Return Loss(dB)(P/S level)	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.6	0.5
Directionality	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.3	0.3
Temperature Stability(dB)	0.4	0.4	0.4	0.4	0.4

PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Features:
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
